Installing a submersible well pump, continued.
Process B: Steps 1 through 5, At The Well, Continued.
STEP
5

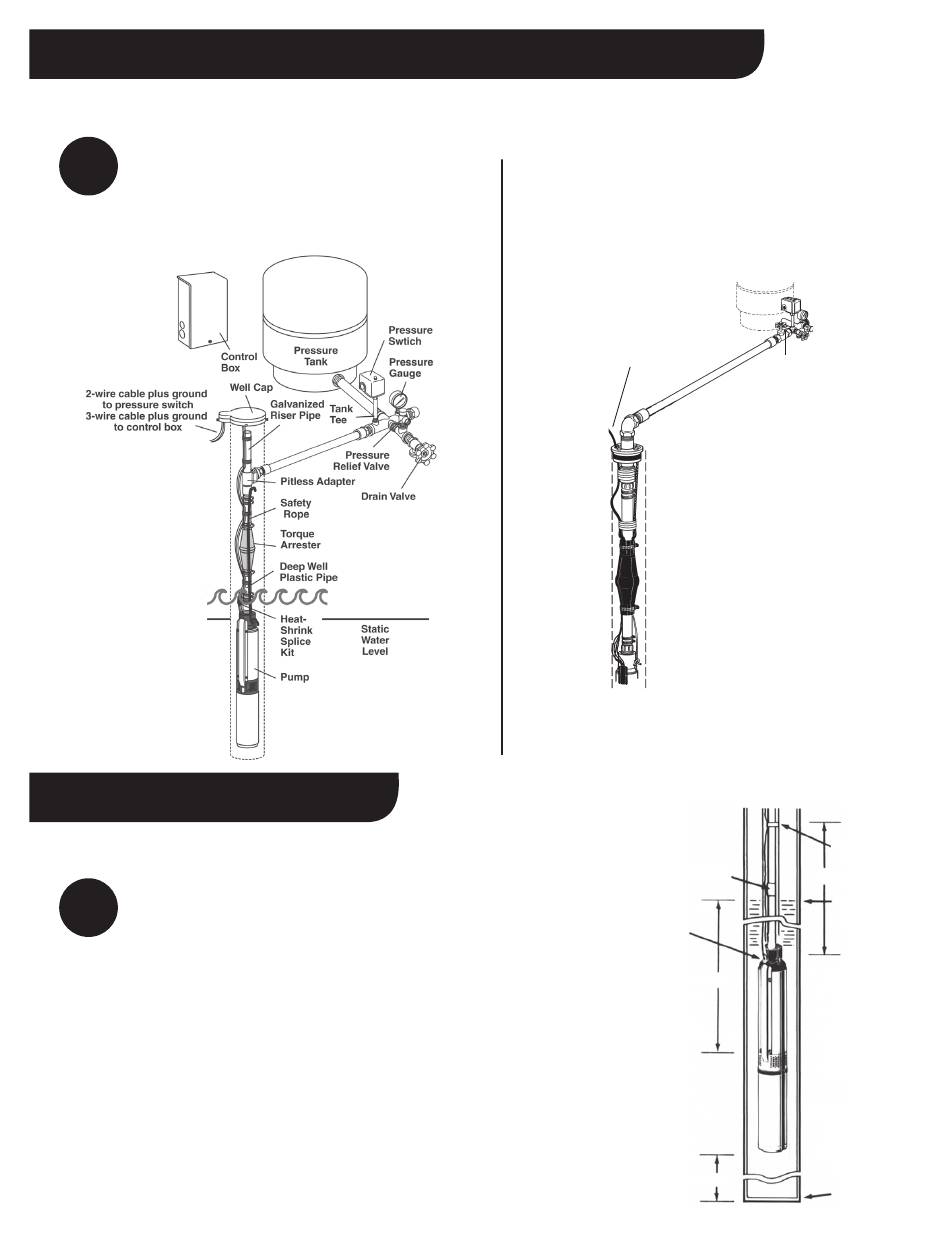

A typical pitless adapter
submersible well pump installation

Lowering the pump

Process C: Step 1 (only) Lowering The Pump
With someone's help, carefully lower pump
STEP
assembly into well. Slide pitless pipe junction into
1
pitless slot. Firmly grasp assembly and safety rope
tied to well cap to prevent assembly from falling
into the well.
After Process C: Step 1 Lowering The Pump have
been completed, please proceed to Process D:
Steps 1 through 4, At The House.
CONSUMER HOT-LINE:
1-800-942-3343
Monday–Friday 7 AM to 5 PM EST
www.waterace.com
23833A09
A
(USA only)
A typical well seal
submersible well pump installation
TO PRESSURE
SWITCH (2-WIRE)
TO CONTROL BOX
(3-WIRE)
CHECK VALVE
EVERY 200 FT.
(60 METERS)
SAFETY
CABLE
10 FT. (3 METERS)
MINIMUM
5 FT. (1-1/2
METERS)
MINIMUM
8
B
OPTIONAL
GATE VALVE
COMPLETE
WELL SEAL
INSTALLATION
LOWERING THE PUMP
TAPE CABLE
EVERY 10 FT.
(3 METERS)
DRAWDOWN
WATER LEVEL
BOTTOM
OF WELL
