HEELING (PARALLELING) THE BLADE
See Figures 40 - 41.
WARNING:
The blade must be square so the wood does not bind
resulting in kickback. Failure to do so could result in
serious personal injury.
Do not loosen any bolts for this adjustment until you have
checked with a square and made test cuts to be sure adjust-
ments are necessary. Once the bolts are loosened, these
items must be reset.
 Unplug the saw.
 Lift the blade guard. Raise the blade all the way by turning
the height/bevel adjusting handwheel.
 Mark beside one of the blade teeth at the front of the blade.
Place a framing square even with the front of the saw
table and the side of the saw blade as shown in figure 40.
 Turn the blade so the marked tooth is at the back.
 Move the framing square to the rear and again measure
the distance. If the distances are the same, the blade is
square.
If the distances are different, square the blade with the
following steps:
 Extend the extension table, see page 30.
 Loosen adjusting bolts (1), (3), (4), and (5).
NOTE: The adjusting bolts are located above the height/
bevel adjusting handwheel and under the saw table in the
front of the saw.
 Turn adjusting bolt (2) left or right until the blade is
square.
NOTE: If the back of the blade was too far from the fram-
ing square, place a block of wood on the left side of the
blade and push it into the blade until the blade is square.
Retighten the bolts.
If the back of the blade was too close to the framing
square, place a block of wood on the right side of the
blade and push it into the blade until the blade is square.
Retighten the bolts.
WARNING:
To reduce the risk of injury from kickback, align the rip
fence to the blade following any blade adjustments.
Always make sure the rip fence is parallel to the blade
before beginning any operation.
All manuals and user guides at all-guides.com
OPERATION
31
ADJUSTING
BOLTS (4 AND 5)
SAW BLADE OUT OF ALIGNMENT
FRAMING
SQUARE
(1) (2)
(3)
ADJUSTING
BOLTS (3)

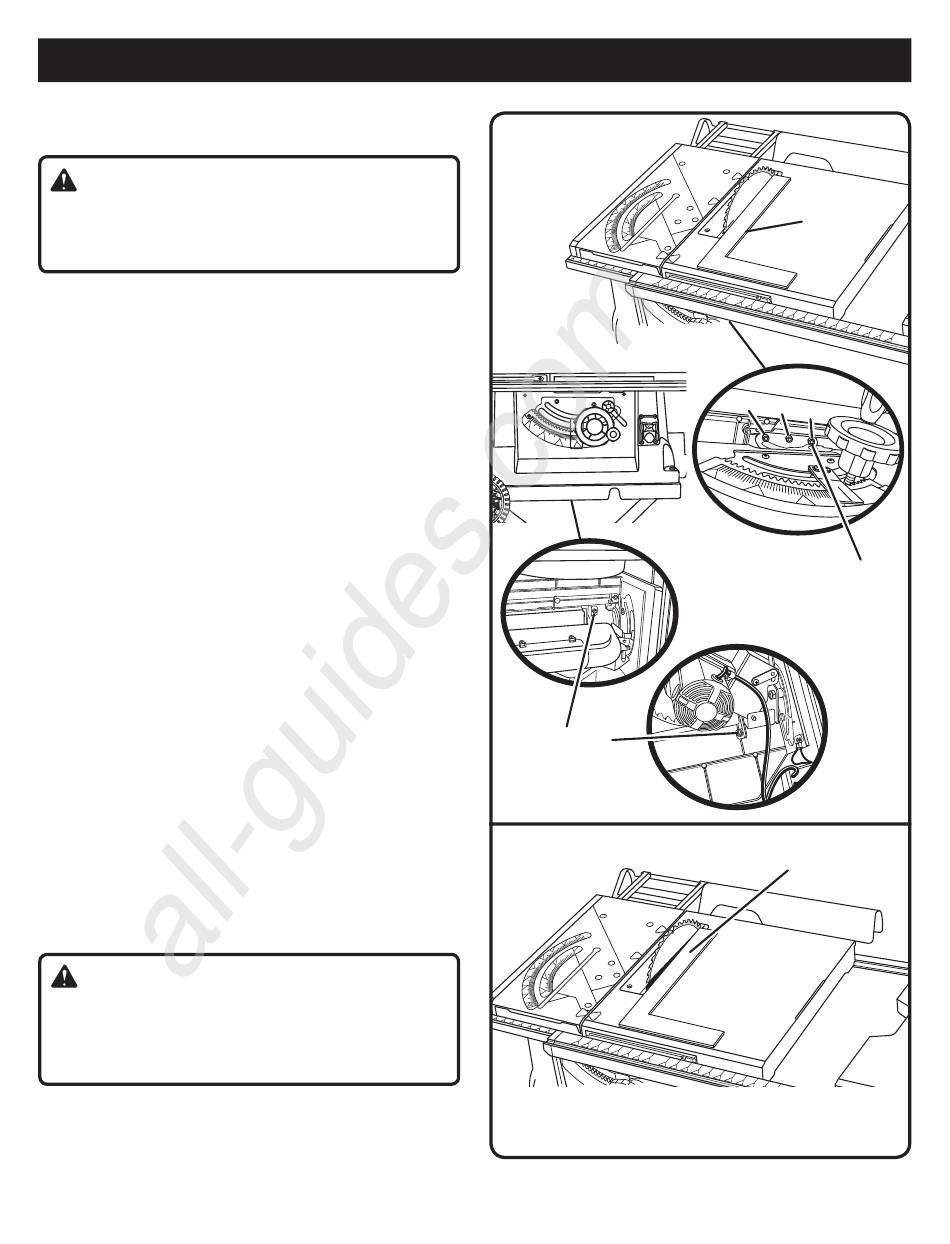

Fig. 40
