TO OPEN/CLOSE (SET-UP/TEAR DOWN) THE
LEG STAND

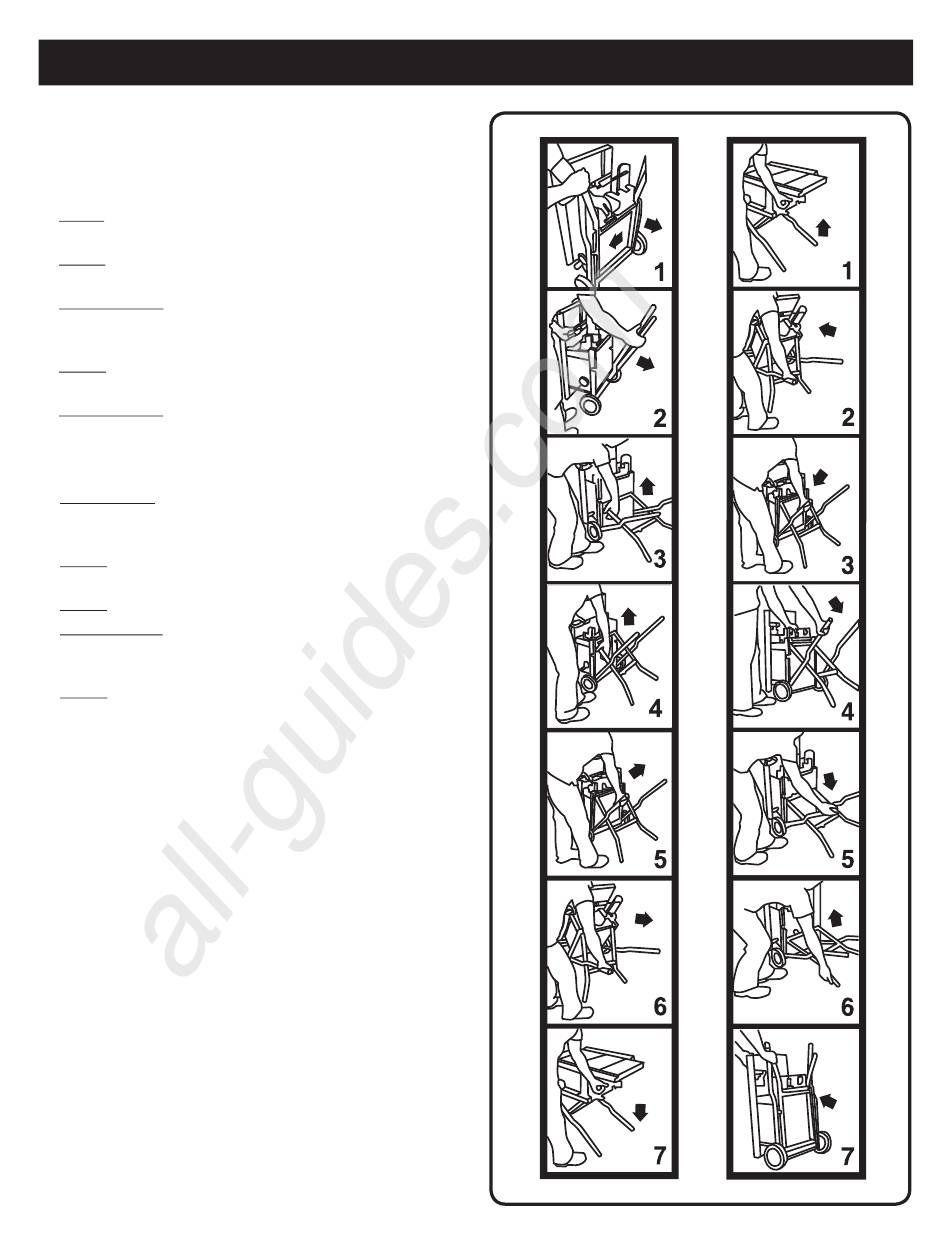

See Figure 9.
To open (set-up) the leg stand:
 Step 1: With the saw table on end and standing to the side,
use your left hand to pull the leg stand latch towards you.
 Step 2: Once the leg stand is released from the table saw
base, ease the legs of the stand down.
 Steps 3 and 4: Grasp the upper leg support below the
saw cabinet. Keeping your left hand clear of the leg stand,
pull the leg stand up until it locks into place.
 Step 5: With your left hand firmly on the table tilt handle,
grasp the leg stand with your right hand.
 Steps 6 and 7: Push the leg stand towards the ground
with your right hand and pull in the same direction with
your left hand until the table saw is in an upright position.
To close (tear down) the leg stand:
 Steps 1 and 2: Standing to the side of the table saw, grasp
the table tilt handle with your left hand. Tilt the table saw
to your left and grab the leg.
 Step 3: Lower the saw to the floor until it is balanced on
end.
 Step 4: Using your left hand, release the leg stand latch.
 Steps 5 and 6: Once the leg stand is released from the
table saw base, ease the legs of the leg stand toward the
floor.
 Step 7: Lift the lower leg of the leg stand until it locks in
place.
All manuals and user guides at all-guides.com
ASSEMBLY
16
SET-UP TEAR DOWN
Fig. 9
