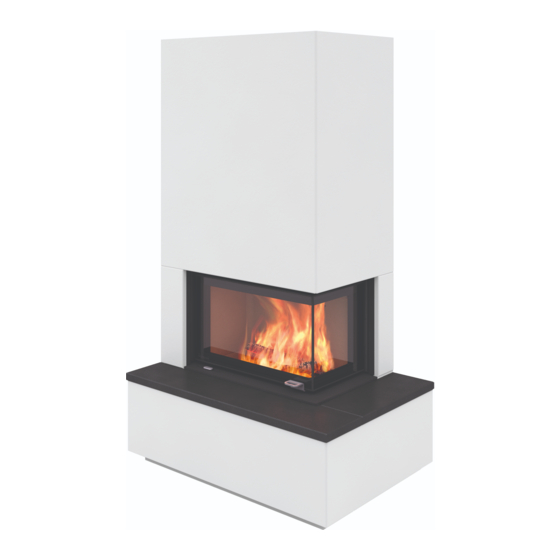

- Page 1 Brukerveiledning Installation manual Installationsanvisning Asennusohje Montageanleitung Manuel d’installation Monaco A Low Base R + Bench Art.no: FP-MON03-40R Last updated: 25.05.2023 Test Report No: RRF 40 17 4637, RRF- 29 21 6042...
- Page 2 Monaco A Low Base + Bench / Q-34 AR = mm FIG 1 1016 1021 Monaco A Low Base + Bench / Q-34 AR = Chimney / AIR mm FIG 1 a...
- Page 3 Monaco A Low Base_Q-34 AR FIG 2 = Brannmur/ Brandmur/ Firewall/ Palomuuri / Hitzeschutzwand / Mur parfeu / Parete non combustibile = Brennbart materiale / Brännbart material / Combustible material / Tulenarka materiaali / Brennbares Material Matières combustibles/ Parete combustibile >700 >400* >1100...
- Page 4 NO: Viktig! For å sikre nødvendig konveksjonsluft, kan kun originale gulv plater fra Nordpeis benyttes. Før du begynner monteringen, forbered gulv: fri for smuss og kontroller at gulv er helt i vater og tilstøtende vegg er helt i lodd. GB: Attention! In order to secure required convection opening, only original Nordpeis Floor plates should be used.
- Page 5 Monaco A Low Base_Q-34 AR + Bench FIG 3 A 22-MON01-200 x1 ⁰ Air (*) (*) - Air / Luft / Ilma CO-MON03-01L...
- Page 6 Monaco A Low Base_Q-34 AR + Bench FIG 3 B 22-MON01-200 x1 ⁰ Air (*) (*) - Air / Luft / Ilma CO-MON03-01L...
- Page 7 Monaco A Low Base_Q-34 AR + Bench FIG 4 Air (*) CO-MON03-07L (*) - Air / Luft / Ilma Monaco A Low Base_Q-34 AR + Bench FIG 4 a CO-MON03-07L 22-MON03-21L 21-50001-018 x2 21-30004-016 x2 10 mm...
- Page 8 Monaco A Low Base_Q-34 AR + Bench FIG 4 b 22-MON03-030 21-50001-018 x2 21-30004-016 x2 10 mm Monaco A Low Base_Q-34 AR + Bench FIG 5 22-MON03-020 21-50001-018 x2 21-30004-016 x2 10 mm...
- Page 9 Monaco A Low Base_Q-34 AR + Bench FIG 6 22-04032-006 21-00000-006 x2 21-50001-018 x2 10 mm Monaco A Low Base_Q-34 AR + Bench FIG 7...
- Page 10 Monaco A Low Base_Q-34 AR + Bench FIG 7 a NO: NB! Se egen monteringsanvisning for innsatsen GB: Attention! See separate instructions for the insert SE: Obs! Se egen monteringsanvisning för insatsen FI: Huomaa! Katso takkasydämen erillinen ohje DE: Beachten Sie die seperate Montageanleitung für den Kamineinsatz FR: Attention! Voir le manuel d’installation...
- Page 11 Monaco A Low Base_Q-34 AR + Bench FIG 7 c 160 ⁰ 135 ⁰ 160 ⁰ 20 ⁰...
- Page 12 Monaco A Low Base_Q-34 AR + Bench FIG 7 d Monaco A Low Base_Q-34 AR + Bench FIG 7 e...
- Page 13 Monaco A Low Base_Q-34 AR + Bench FIG 8 A CO-MON01-01R Air (*) (*) - Air / Luft / Ilma Monaco A Low Base_Q-34 AR + Bench FIG 8 B CO-MON01-01R Air (*) (*) - Air / Luft / Ilma...
- Page 14 Monaco A Low Base_Q-34 AR + Bench FIG 9 21-30004-016 x4 21-50001-018 x4 22-MON01-230 x2 CO-MON01-01C 10 mm Monaco A Low Base_Q-34 AR + Bench FIG 10 Air (*) CO-MON03-07R (*) - Air / Luft / Ilma...
- Page 15 Monaco A Low base_Q-34 AR + Bench FIG 10 a 22-MON03-020 21-50001-018 x2 21-30004-016 x2 10 mm Monaco A Low base_Q-34 AR + Bench FIG 11 10 mm 22-MON01-230 CO-MON03-140 x1 21-50001-018 x2 21-30004-016 x2 CO-MON03-130 x1...
- Page 16 Monaco A Low base_Q-34 AR + Bench FIG 12 Monaco A Low base_Q-34 AR + Bench FIG 13 21-50001-018 x2 21-30004-016 x2 22-MON03-20L 10 mm CO-MON03-12L...
- Page 17 Monaco A Low base_Q-34 AR + Bench FIG 13 a 22-MON03-020 21-50001-018 21-30004-016 10 mm Monaco A Low base_Q-34 AR + Bench FIG 14 CO-MON03-10R CC-MON03-01R CC-MON03-020...
- Page 18 Monaco A Low Base_Q-34 AR + Bench FIG 15 CO-MON03-020 22-MON03-130 21-50001-018 x2 21-30004-016 x2 10 mm Monaco A Low Base_Q-34 AR + Bench FIG 15 a...
- Page 19 Monaco A Low Base_Q-34 AR + Bench FIG 16 CO-MON03-030 22-MON03-130 21-50001-018 x2 21-30004-016 x2 10 mm Monaco A Low Base_Q-34 AR + Bench FIG 16 a...
- Page 20 Monaco A Low base_Q-34 AR + Bench FIG 17 ⁰ ⁰ Monaco A Low Base_Q-34 AR + Bench FIG 18 NO: Om ildstedet skal monteres med tilslutning av pipe bak og tilluftskanal, lag hull etter perforeringen i platen. Betongring monteres mellom platen og veggen, se fig.
- Page 21 Monaco A Low Base_Q-34 AR + Bench FIG 18 a Monaco A Low Base_Q-34 AR + Bench FIG 19 10 mm 22-MON03-010 21-50001-018 x2 21-30004-016 x2...
- Page 22 Monaco A Low Base_Q-34 AR + Bench FIG 19 a Monaco A Low Base_Q-34 AR + Bench FIG 20 CO-MON03-040 x1 CO-MON03-S40 x1 21-50001-018 x2 21-30004-035 x2 10 mm...
- Page 23 Monaco A Low Base_Q-34 AR + Bench FIG 20 a Side tilkobling Anslutning från sidan / Side connection Sivuliitäntä / Anschluss seitlich / Raccordement latérale Monaco A Low Base_Q-34 AR + Bench FIG 20 b...
- Page 24 Monaco A Low Base_Q-34 AR + Bench FIG 20 c Monaco A Low Base_Q-34 AR + Bench FIG 20 d 22-MON03-030 21-50001-018 x3 21-30004-016 x2 21-00000-006 x1 10 mm...
- Page 25 Monaco A Low Base_Q-34 AR + Bench FIG 21 Monaco A Low Base_Q-34 AR + Bench FIG 22 22-MON03-080 90 ⁰ 90 ⁰...
- Page 26 Monaco A Low Base_Q-34 AR + Bench FIG 22 a Monaco A Low Base_Q-34 AR + Bench FIG 23 Top chimney connection 22-MON03-314 x2 22-MON03-304 x1...
- Page 27 Monaco A Low Base_Q-34 AR + Bench FIG 23 a Rear chimney connection 22-MON03-314 x2 22-MON03-304 x1 Monaco A Low base_Q-34 AR + Bench FIG 24...
- Page 28 FI: Huom! Käytä vain alkuperäisiä Nordpeis-lattialevyjä vaaditun konvektioaukon (ilmankierron) varmistamiseksi. DE: Achtung! Um die erforderliche Konvektionsöffnung sicherzustellen, dürfen nur Original-Brandschutzplatten von Nordpeis verwendet werden. FR: Attention! Afin de garantir l’ouverture de convection requise, seules des plaques de sol Nordpeis d’origine doivent être utilisées.
- Page 29 Monaco A Low base_Q-34 AR + Bench FIG 26 Service access...
- Page 30 Nordpeis AS Gjellebekkstubben 11 3420 Lierskogen, Norway MonacoA-CPR-2017/06/12 EN 13240:2001 / A2:2004 / AC:2007 Monaco A Low / High Year of Approval / Zulassungjahr 2017 Heating of living accomodation / Kamin zum Heizen mit festen Brennstoffen Feuersicherheit : Fire safety:...
