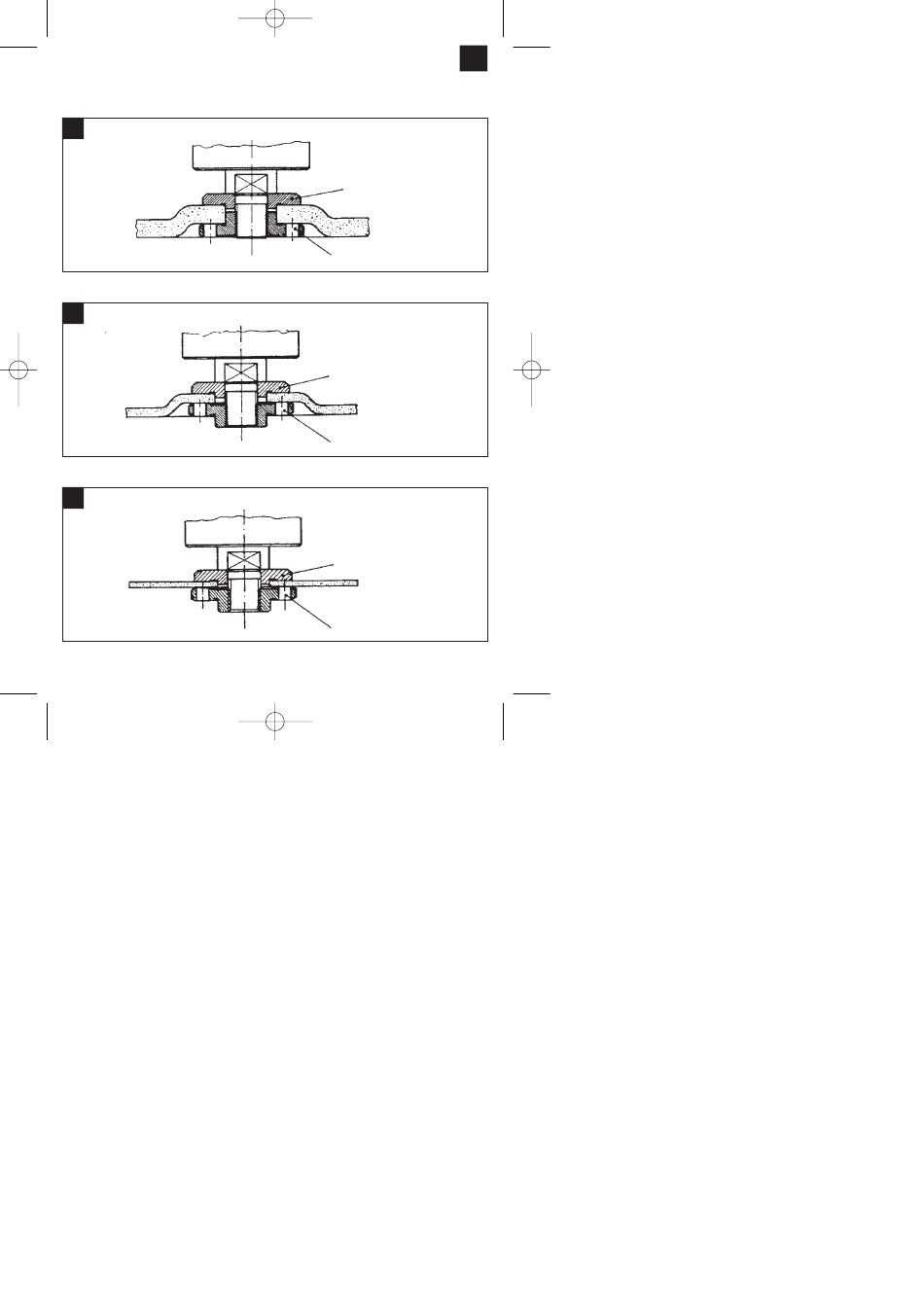

Flange arrangements when using grinding
wheels and cutting wheels
1
Flange arrangement when using a depressed-centre or straight grinding wheel
2
Flange arrangement when using a depressed-centre cutting wheel
3 Flange arrangement when using a straight cutting wheel
04.12.2003 8:43 Uhr Seite 9
GB
Clamping flange
Flange nut
Clamping flange
Flange nut
Clamping flange
Flange nut
