OBSIDIAN CONTROL SYSTEMS NETRON RP2 Guide D'installation page 9

I N S TA L L AT I O N I N S T R U C T I O N S
CLAMP INSTALLATION
Insert 18.8 steel M10x25mm or M12x25mm bolt (not included) through the respective mounting hole
of the clamp (not included), and then thread it into the matching 10M hole on the left, or 12M hole
onthe right. The bolt must be threaded at least 18mm (0.7ins) into the fixture base.
M10

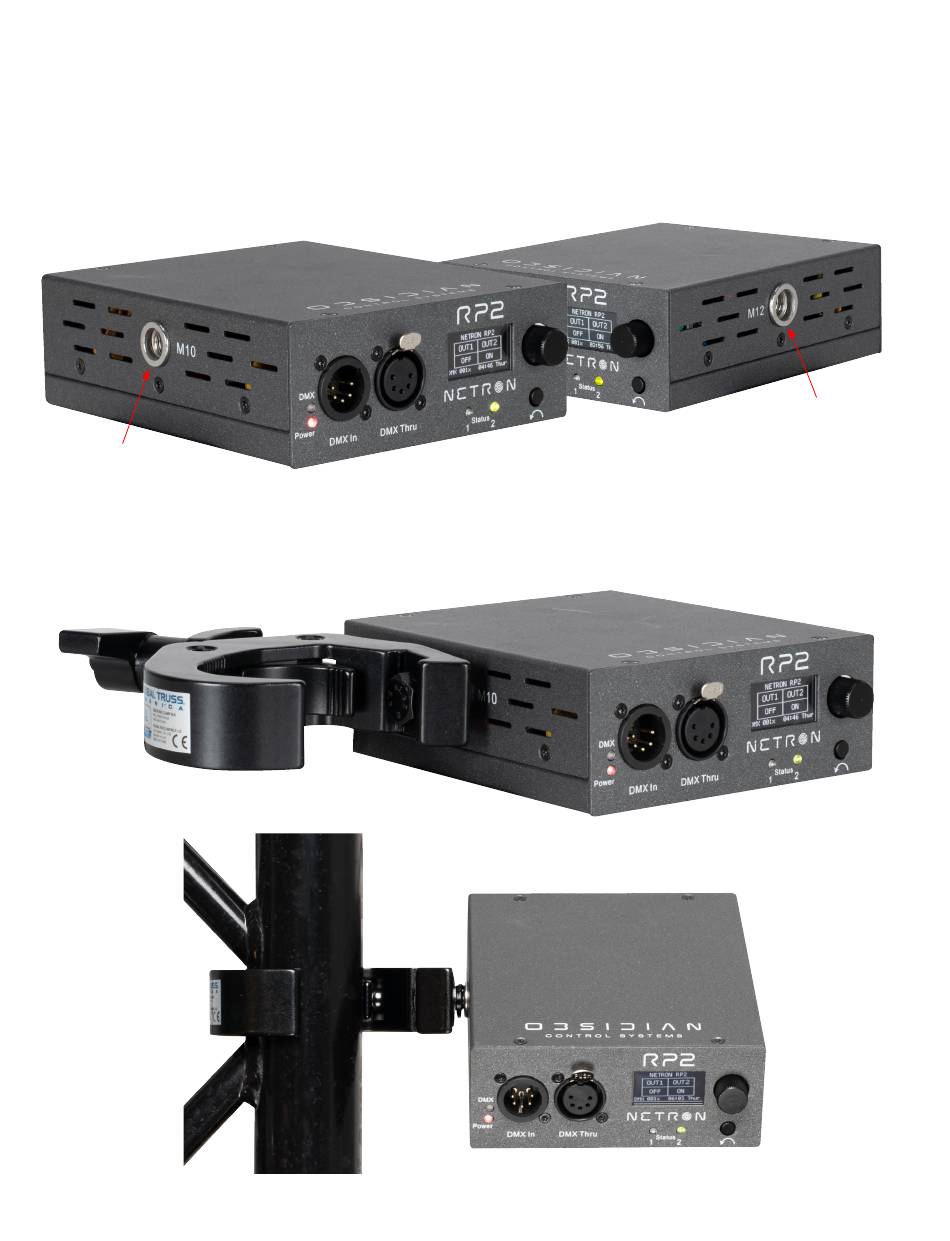

A Truss Clamp can be installed on left side as
shown (10M), or right side (12M) of RP2 Fixture.
9
M12
