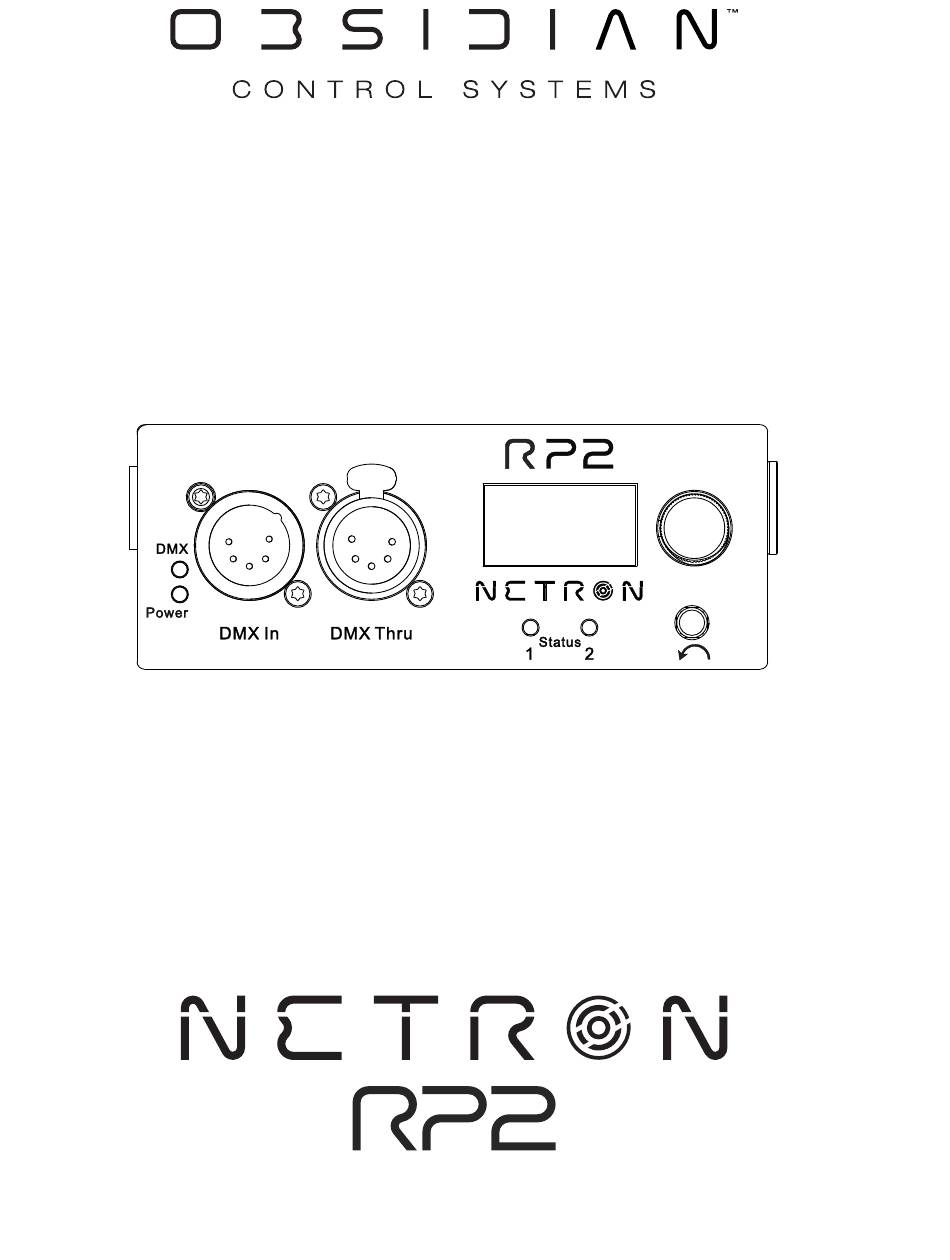

OBSIDIAN CONTROL SYSTEMS NETRON RP2 Guide D'installation

Masquer les pouces

page de 43

/ 43
Signets

Les langues disponibles

Liens rapides

Télécharger ce manuel

Installation Guide

Sommaire des Matières pour OBSIDIAN CONTROL SYSTEMS NETRON RP2

Page 1 Installation Guide...
Page 2 ©2023 OBSIDIAN CONTROL SYSTEMS all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. Obsidian Control Systems logo and identifying product names and numbers herein are trademarks of ADJ PRODUCTS LLC. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted.
Page 3 C O N T E N T S GENERAL INFORMATION LIMITED WARRANTY SAFETY GUIDELINES OVERVIEW INSTALLATION CONNECTIONS MAINTENANCE SPECIFICATIONS DIMENSIONS OPERATION INSTRUCTIONS REMOTE DEVICE MANAGEMENT (RDM)
Page 4 G E N E R A L I N F O R M AT I O N INTRODUCTION Please read and understand the instructions in this manual carefully and thoroughly before attempting to operate this device. These instructions contain important safety and use information. UNPACKING Every device has been thoroughly tested and has been shipped in perfect operating condition.
Page 5 (including negligence), misrepresentation, strict liability, breach of warranty of Elation or Obsidian Control Systems or any supplier, and even if Elation or Obsidian Control Systems or any supplier has been advised of the possibility of such damages.
Page 6 This device is a sophisticated piece of electronic equipment. To guarantee a smooth operation, it is important to follow all instructions and guidelines in this manual. OBSIDIAN CONTROL SYSTEMS is not responsible for injury and/or damages resulting from the misuse of this device due to the disregard of the information printed in this manual.
Page 7 O V E R V I E W The NETRON RP2 is an intelligent 2-way DMX Power Relay that is an ideal tool to protect fixtures from damage, lower power consumption, and reducing the overall wear and tear of any lighting system.
Page 8 I N S TA L L AT I O N I N S T R U C T I O N S DISCONNECT POWER BEFORE PERFORMING ANY MAINTENANCE! ELECTRICAL CONNECTIONS A qualified electrician should be used for all electrical connections and/or installations. USE CAUTION WHEN POWER LINKING OTHER MODEL DEVICES AS THE POWER CONSUMPTION OF OTHER MODEL DEVICES MAY EXCEED THE MAXIMUM POWER OUTPUT OF THIS DEVICE.
Page 9 I N S TA L L AT I O N I N S T R U C T I O N S CLAMP INSTALLATION Insert 18.8 steel M10x25mm or M12x25mm bolt (not included) through the respective mounting hole of the clamp (not included), and then thread it into the matching 10M hole on the left, or 12M hole onthe right.
Page 10 C O N N E C T I O N S POWER CONNECTIONS The Obsidian Control Systems Netron RP2 is powered via 100-240VAC locking power cable (IN), and two 100-240VAC locking power out (16A combined). DMX CONNECTIONS: The 1st DMX connection is a 5pin male XLR, and the 2nd DMX connection is a 5pin female XLR; the pin-out on all sockets is pin 1 to shield, pin 2 to cold (-), and pin 3 to hot (+).
Page 11 C O N N E C T I O N S : F R O N T & B A C K PA N E L S F R O N T C O N N E C T I O N S 1.3”...
Page 12 M A I N T E N A N C E The Obsidian Control Systems Netron RP2 is designed as rugged, roadworthy device. The only required service is occasional cleaning. For other service-related concerns, please contact your Obsidian Control Systems dealer, or visit www.obsidiancontrol.com.
Page 13 S P E C I F I C AT I O N S Control Instant Control or Smart Power Sequencing Mounting Standalone Truss-mount (M10 + M12 mounting hole) Wall-mount horizontal or vertical (included) Din Rail horizontal or vertical (included) Connections Front 2x 5pin DMX/RDM In and Thru Back...
Page 14 D I M E N S I O N S Dimension drawings not to scale 5.22in. [132.6mm] 5.08in. [129.0mm]...
Page 15 O P E R AT I O N I N S T R U C T I O N S The NETRON RP2 serves multiple functions, including operating as a DMX, remote, or timer-controlled relay, and automatically activating relays upon detecting DMX traffic. This feature is beneficial for automating power-on processes when the DMX controller transmits data.
Page 16 M E N U : P R E S E T M M E E N N U U Please note that setting the Preset deletes all programmed events. P P r r e e s s e e t t D D M M X X 0 0 0 0 1 1 x x 1 1 2 2 : : 0 0 0 0 M M o o n n SUB MENU...
Page 17 M E N U : D M X M M E E N N U U Select the desired Mode and Address for DMX remote control: 1 Channel mode controls both outputs simultaneously. D D M M X X 2 Channel mode assigns a separate DMX channel for each output. Disable mode removes DMX remote control, but allows DMX detection and timers to toggle the relays.
Page 18 M E N U : P O W E R M M E E N N U U The RP2 boasts several distinct features. It detects voltage and current for each relay circuit, which can be displayed individually P P o o w w e e r r per output or as a total for the RP2.
Page 19 M E N U : T I M E R M M E E N N U U The RP2 features a schedule for events based on specific times and days of the week. For example, you can configure it to power T T i i m m e e r r on every day at 18:00 and turn off Monday to Friday at 22:00, and on Saturday and Sunday at 23:59.
Page 20 D D e e v v i i c c e e I I D D Label Device label is shown in display and over RDM NETRON RP2 o o n n D D M M X X 0 0 0 0 1 1 x x...
Page 21 M E N U : I N F O R M AT I O N M M E E N N U U The RP2 provides feedback on the total product operation time and the installed software version number from the factory. I I n n f f o o r r m m a a t t i i o o n n D D M M X X 0 0 0 0 1 1 x x 1 1 2 2 : : 0 0 0 0 M M o o n n...
Page 22 R E M O T E D E V I C E M A N A G E M E N T ( R D M ) NOTE: In order for RDM to work properly, RDM enabled equipment must be used throughout the entire system, including DMX data splitters and wireless systems.
Page 23 R E M O T E D E V I C E M A N A G E M E N T ( R D M ) DMX Detect Mode(0x8001) Controller: (GET) (Response Type) (Message Count) (Sub-Device) 0x00-0xFF 0x0000 (CC) (PID) (PDL) GET_COMMAND_RESPONSE...
Page 24 R E M O T E D E V I C E M A N A G E M E N T ( R D M ) DMX Loss(0x0141) Controller: (GET) (Port ID) (Message Count) (Sub-Device) 0x01 - 0xFF 0x00 0x0000 (Rood) (CC) (PID)
Page 25 R E M O T E D E V I C E M A N A G E M E N T ( R D M ) DMX StartUp(0x0142) Controller: (GET) (Port ID) (Message Count) (Sub-Device) 0x01 - 0xFF 0x00 0x0000 (Rood) (CC) (PID)
Page 26 R E M O T E D E V I C E M A N A G E M E N T ( R D M ) Power Output Mode(0x8002) Controller: (GET) (Port ID) (Message Count) (Sub-Device) 0x01 - 0xFF 0x00 0x0000 (Root) (CC)
Page 27 AUTO_SEQUENCER(0x8003) Controller: (GET) (Port ID) (Message Count) (Sub-Device) 0x01 - 0xFF 0x00 0x0000 (Root) (CC) (PID) (PDL) GET_COMMAND_RESPONSE 0x8003 0x00 (PD) Not Present Response: (Response Type) (Message Count) (Sub-Device) 0x00-0xFF 0x0000 (CC) (PID) (PDL) GET_COMMAND_RESPONSE 0x8003 0x01 (PD) Time (8-bit) Controller: (SET) (Port ID) (Message Count)
