C O N N E C T I O N S
POWER CONNECTIONS
The Obsidian Control Systems Netron RP2 is powered via 100-240VAC locking power cable (IN), and
two 100-240VAC locking power out (16A combined).

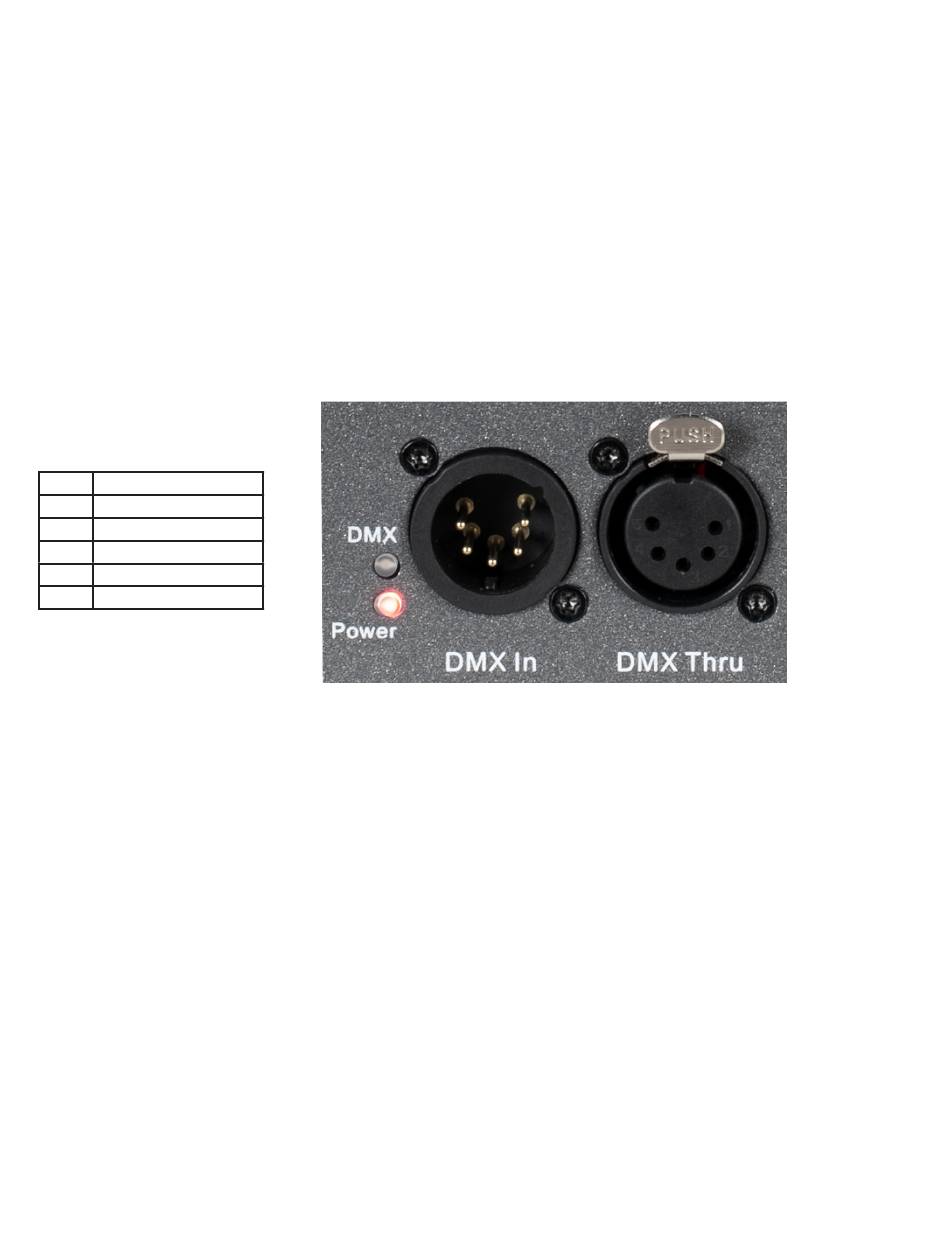

DMX CONNECTIONS:
The 1st DMX connection is a 5pin male XLR, and the 2nd DMX connection is a 5pin female XLR; the
pin-out on all sockets is pin 1 to shield, pin 2 to cold (-), and pin 3 to hot (+). Pins 4 and 5 are not used.
Carefully connect DMX cables to the respective ports. To prevent damaging the DMX ports, provide
strain relief and support.
Pin
Connection
1
Com
2
Data -
3
Data +
4
Not connected
5
Not connected
:
1
2
10
5
4
5
4
3
1
2
3
