6. Fasten shutoff valve to cold water pipe with pipe clamp. Be
sure outlet end is solidly in the ¹⁄₄" (6.35 mm) drilled hole in the
water pipe and that washer is under the pipe clamp. Tighten
packing nut. Tighten the pipe clamp screws slowly and evenly
so washer makes a watertight seal. Do not overtighten or you
may crush the copper tubing, especially if soft (coiled) copper
tubing is used. Now you are ready to connect the copper
tubing.
7. Slip compression sleeve and compression nut on copper
tubing as shown. Insert end of tubing into outlet end squarely
as far as it will go. Screw compression nut onto outlet end
with adjustable wrench. Do not overtighten.
8. Place the free end of the tubing into a container or sink, and
turn ON main water supply and flush out tubing until water is
clear. Turn OFF shutoff valve on the water pipe. Coil copper
tubing.
Connect to Refrigerator
NOTE: On kit models, assemble water valve to refrigerator per kit
instructions.
Style 1
1. Unplug refrigerator or disconnect power.
2. Attach the copper tube to the valve inlet using a compression
nut and sleeve as shown. Tighten the compression nut. Do not
overtighten.
3. Use the tube clamp on the back of the refrigerator to secure
the tubing to the refrigerator as shown. This will help prevent
damage to the tubing when the refrigerator is pushed back
against the wall.
4. Turn shutoff valve ON.
5. Check for leaks. Tighten any connections (including
connections at the valve) or nuts that leak.
A. Tube clamp
B. Copper tubing
6. The ice maker is equipped with a built-in water strainer. If your
water conditions require a second water strainer, install it in
the ¹⁄₄" (6.35 mm) water line at either tube connection. Obtain
a water strainer from your nearest appliance dealer.

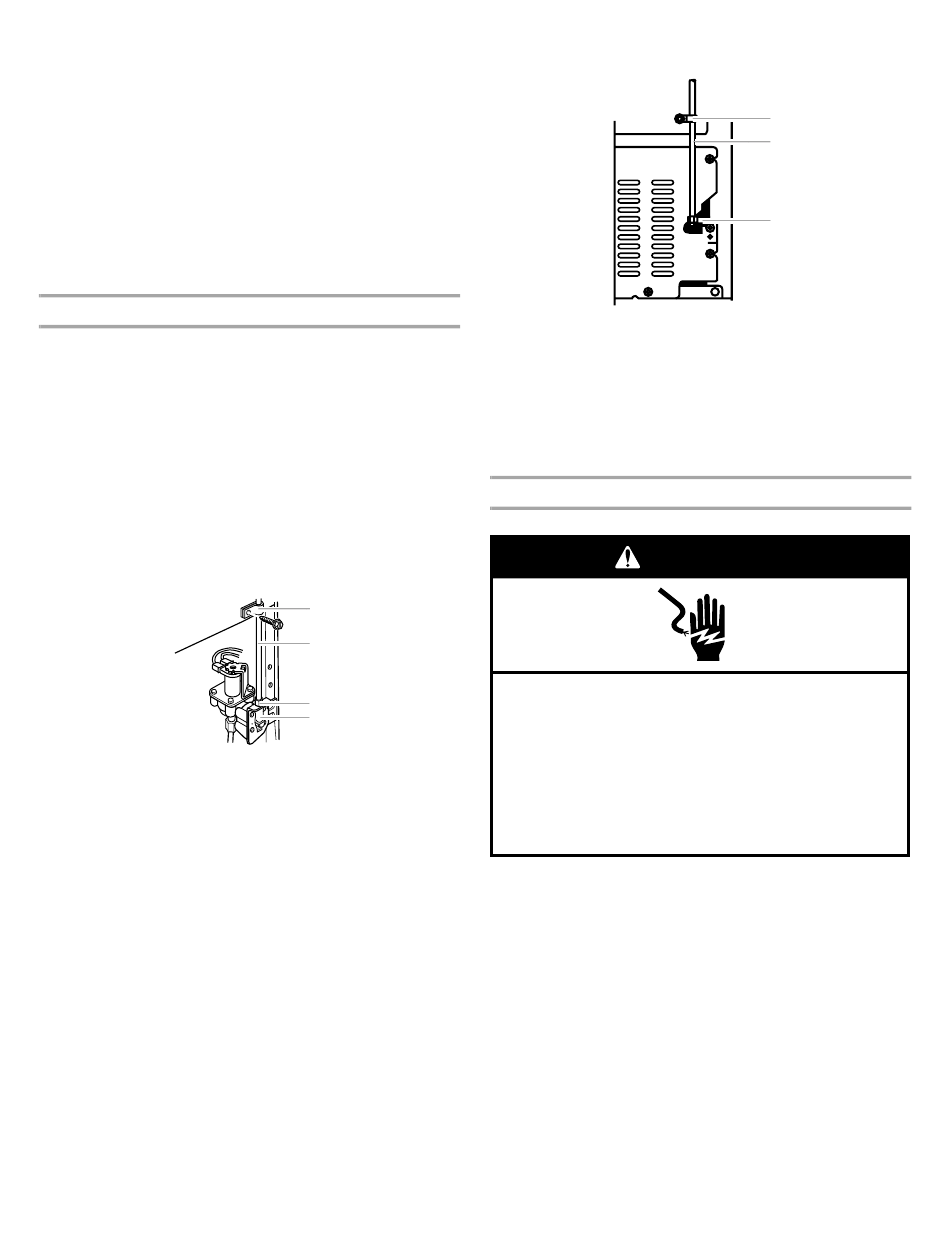

Style 2
1. Unplug refrigerator or disconnect power.
2. Disconnect the tube clamp on the back of the product and
insert the copper tubing through the clamp as shown.
3. Attach the copper tube to the valve inlet using a compression
nut and sleeve as shown.
A
B
C
D
C. Compression nut
D. Valve inlet
4. Tighten the compression nut. Do not overtighten. Reattach the
tube clamp and tube to the back of the cabinet.
A. Tube clamp
B. Copper tubing
5. Turn shutoff valve ON. Check for leaks. Tighten any
connections (including connections at the valve) or nuts that
leak.
6. The ice maker is equipped with a built-in water strainer. If your
water conditions require a second water strainer, install it in
the ¹⁄₄" (6.35 mm) water line at either tube connection. Obtain
a water strainer from your nearest appliance dealer.
Complete the Installation
WARNING
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
Plug in refrigerator or reconnect power.
NOTE: Allow 24 hours to produce the first batch of ice. Discard
the first three batches of ice produced. Allow 3 days to completely
fill ice container.
A
B
C
C. Compression nut
