All manuals and user guides at all-guides.com

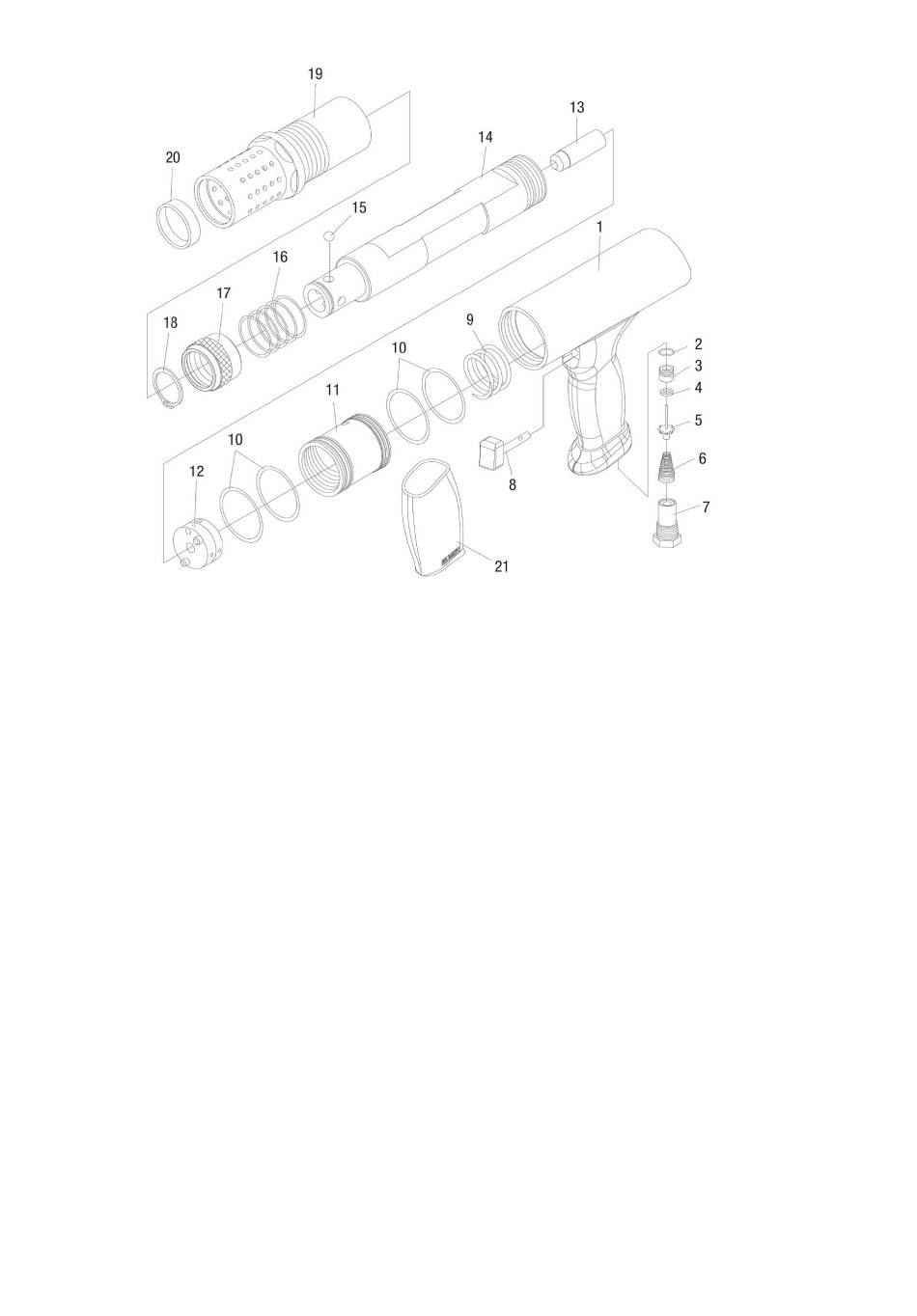

REF no.
Art. no.
1
290 200-1
2
290 200-2
3
290 200-3
4
290 200-4
5
290 200-5
6
290 200-6
7
290 200-7
8
290 200-8
9
290 200-9*
10
290 200-10
11
290 200-11
12
290 200-12
13
290 200-13
14
290 200-14
15 *
16 *
17 *
18 *
19
290 200-19
20
290 200-20
21
* Only available in chisel holder repair set 290 200-KIT.
** The rubber buffer replaces the damping spring used earlier on this tool.
Description
Housing (handle #21 included)
O-ring seal
Bushing
Throttle seat
Throttle valve
Throttle spring
Air inlet
Trigger button
Damping spring
O-ring seal
Cylinder liner
Valve block unit
Piston
Cylinder
Steel ball
Spring
Housing cover (black)
Retaining ring
Tailpipe trim
Ring
Comfort handle (incl. with #1)
Quantity
1
1
1
1
1
1
1
1
1
1
1
1
1
1
4
1
1
1
1
1
