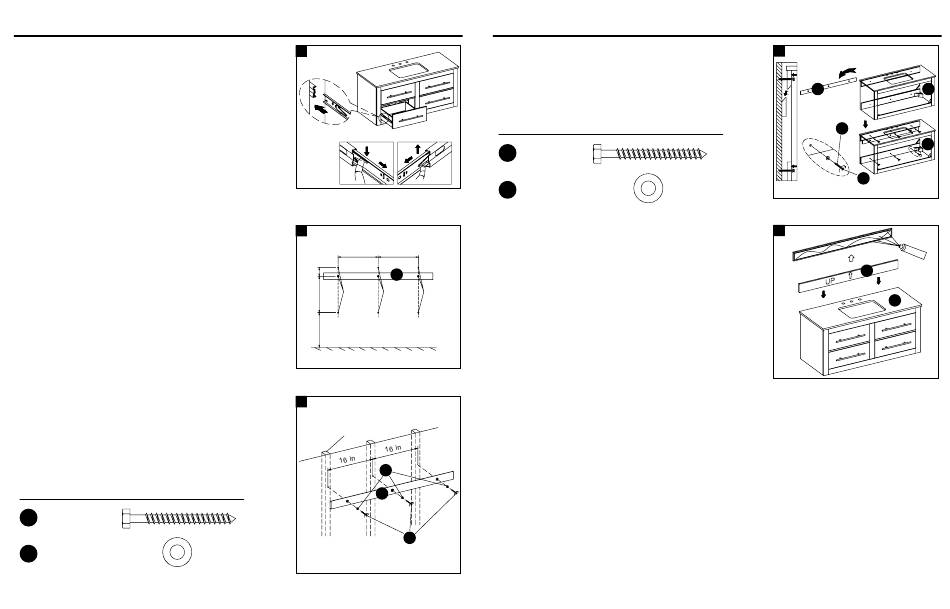

ASSEMBLY INSTRUCTIONS
Option 1
Removing the Drawer:
4a. Unload the contents from the drawer.
4b. Slide out the drawer as far as it will go.
4c. Press the lever down on the right-hand track and lift the lever up on
the left track to release the drawer. Pull the drawer out the rest of
the way.
Replacing the Drawer:
4d. Align the drawer guides with the receiving glides.
4e. Hold the receiving glides firmly and insert the drawer guide.
NOTE: It is normal for the drawer to close tightly the first time after it
has been removed.
4f. Push the drawer in completely.
Making the mounting holes for a wall installation
5a. Using a stud finder, mark the center line of each wall stud with a vertical
reference line.
5b. Mark the mounting holes for the wall hanging cleat (E) using a pencil
(not included) as shown.
Attaching the wall hanging cleat
6a. Drill a 3/8 in. pilot hole at each of the mounting holes not marked
on a stud.
6b. Drill a 3/16 in. pilot hole at the marked locations over each wall
stud.
6c. With the beveled edge facing up, attach the wall hanging cleat (E)
to the wall using the large flat washers (BB) and lag bolts (AA).
Hardware Used
AA
Lag Bolt
(not included)
Large Flat Washer
BB
(not included)
4
5
16 in
16 in
3.4 in
E
Mounting
Mounting
13.9 in
holes
holes
14.5 in
6
Wooden Stud
BB
E
x 3
AA
x 3
4
ASSEMBLY INSTRUCTIONS
Attaching the vanity base to the wall
7a. With the help from another person, carefully hang the vanity base (B)
onto the wall hanging cleat (E).
7b. Attach the vanity base (B) to the wall using the large flat washers (BB)
and lag bolts (AA).
7c. Reinstall all the drawers in the vanity base (B).
Hardware Used
Lag Bolt
AA
(not included)
Farge Flat Washer
BB
(not included)
Backsplash Installation
8. To mount the backsplash (C) to the wall, apply a thin bead of silicone
compound (not included) to the unpolished back side and bottom of the
backsplash (C). Position backsplash (C) as shown onto vanity top (A)
and against the wall. Clean any excess silicone compound before
Mounting
allowing to dry.
holes
Floor
7
E
BB
x 6
AA
x 6
8
C
5
B
B
Silicone
A
