CAMERA INSTALLATION
The location of the RX-32 camera is to be defined according to your needs:
• Front: camera placed on the grille fixed on the slots or grille of the grille
• Rear view: Camera placed at the plate pilot at the same location as the rear camera or inserted by drilling into the
bumper. The angle of view of this camera must be directed towards the rear horizon of the vehicle. The camera will
then act as an electronic mirror.
• Interior: camera placed according to your needs of vision of the passengers (motorhome), materials (van, truck),
animals (transport of horses, ...), etc ...
The camera can be installed either on metal bracket, or fit into a bumper or in a flat part.

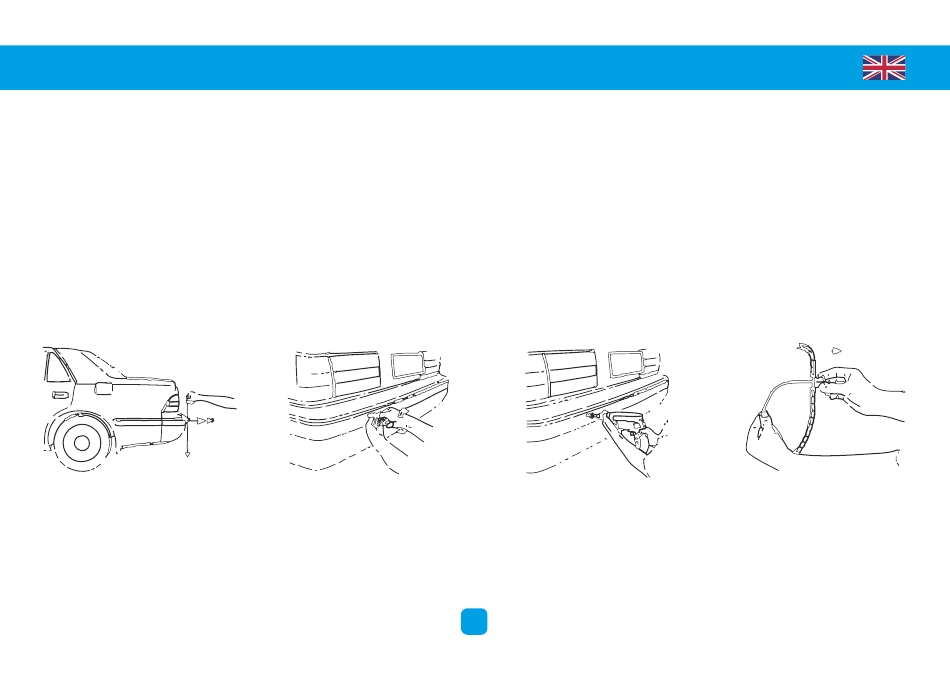

The axis of vision of the
camera must be parallel to
the ground.
Please protect so you
do not drag the forest on
the bumper.
10
Drilling with the tool
(hole saw) supplied
with the kit.
Place the camera in the
hole of drilling thanks to
the metal clips
