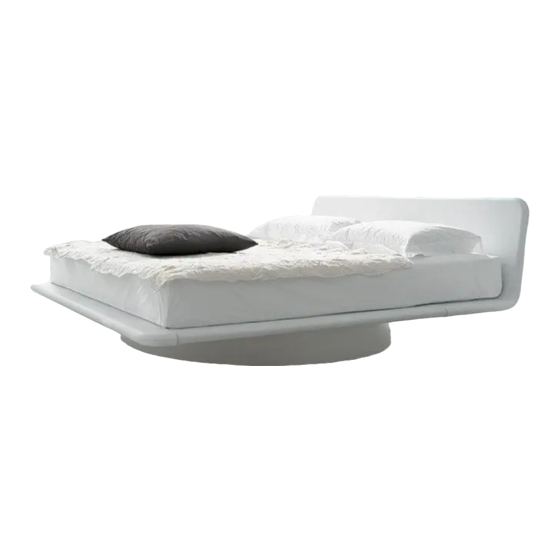

Giotto design: G. Carollo Letto Girevole Swivelling bed Drehbett Lit pivotant ATTENZIONE: ANEggIArE cON MANI pulITE ATTENTION: ANdlE wITH clEAN HANds AcHTuNg: IT sAubErEN äNdEN ANfAssEN ATTENTION: ANIpulEr AvEc lEs MAINs prOprEs N° 4 N° 4 TspEI 8 ATTINO pArTE INfErIOrE...
Page 2
Giotto design: G. Carollo Pediera/ Back Aprire l’imballo e porre la struttura a terra, su un piano morbido, coi fori e le staffe per l’aggancio della base e della testata rivolte verso l’alto. Open the pack and lay the structure on the ground, on a soft surface, with the holes and brackets for attaching the base and headboard upwards.
Page 3
Giotto design: G. Carollo Inserire il perno A nella boccola, evidenziata in fig.6, posta al centro della base circolare. Insert pin A in the bush, indicated in fig. 6, which is located in the centre of the round base. Stift A in der Buchse einsetzen, die in Abb. 6 gezeigt ist und sich in der Mitte der runden Basis befindet.
Page 4
Giotto design: G. Carollo Fissare alla struttura i pattini composti dalle tre parti F,G,H posizionate come illustrato nelle figure 8A, 8B, 8C; utilizzando 8 viti B Fix the pads (consisting of three parts F, G, H) to the structure, positioning them as shown in figures 8A, 8B and 8C, using 8 screws BF.
Page 5
Giotto design: G. Carollo Dopo aver ribaltato la struttura fissare nel lato pediera (vedi fig.10) il profilo pediera utilizzando 4 viti C (fig. 11) ed altrettante rondelle D After having turned the structure over, fix the footboard section to the footboard end (see fig. 10) using four screws CF (fig.
Page 6
Giotto design: G. Carollo Appoggiare il rivestimento alla struttura pre-montata; la parte superiore ha velcro femmina e la parte sotto ha velcro maschio protetto. Lay the covering over the pre-assembled structure. The top part has a female Velcro strip and the bottom part has a protected male Velcro strip.
Page 7
Giotto design: G. Carollo Rivestire i longoni posizionando la cucitura del rivestimento al centro degli stessi fig. 20. Cover the side bars, positioning the seam of the cove- ring in the centre of the bars, fig. 20. Seitenteile so überziehen, dass die Naht des Überzugs mittig zu liegen kommt (Abb.
Page 8
Giotto design: G. Carollo Inserire due staffe testata negli omega presenti sotto la struttura letto e fissarli con le 4 viti B (fig.25). Insert the two headboard brackets into the omega profiles located under the bed structure and secure them with the 4 screws BF (fig. 25).
Page 9
à la structure (fig. 28). Bonaldo Spa Via Straelle, 3 – P.O. Box n. 6 – 35010 Villanova Pd Italia Tel. +39 049 9299011 Fax +39 049 9299000 www.bonaldo.it - bonaldo@bonaldo.it scheda montaggio - assembly instruction - Aufbauanleitung - notice de montage...
