Battery Replacement

Battery replacement should be performed only by authorized service personnel using the same num-
ber and type of batteries (sealed Lead-Acid). Under normal conditions, the original batteries in your
UPS will last many years. See Safety section before replacing batteries. The batteries are designed
for hot-swap replacement (i.e. leaving the UPS in ON mode), but some qualified service personnel
may wish to put the UPS in the OFF mode and disconnect equipment before proceeding.

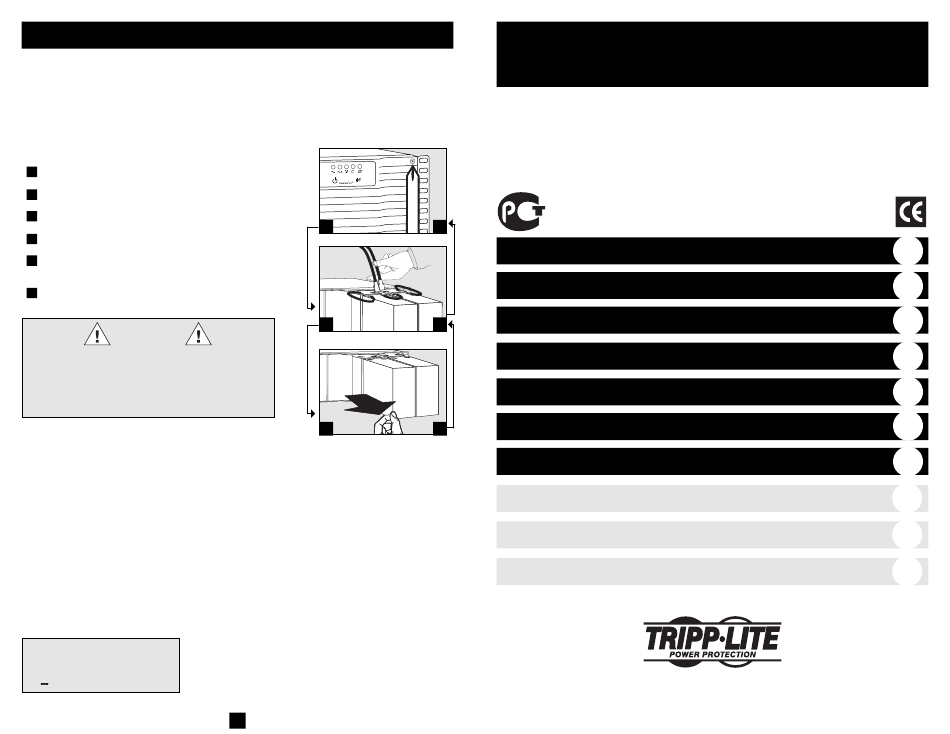

Procedure
Remove Front Panel and Battery Holding Plate
1
Disconnect Batteries
2
3 Remove/Dispose of Batteries
4
Add Batteries
Connect Batteries
5
Attach connectors: black-to-black and red-to-red.
Replace Front Panel
6
WARNING!
Batteries can present a risk of electrical shock and burn
from high short-circuit current resulting in serious
injury or death. Battery terminals are in close proximity
to UPS cabinet and special care must be taken to avoid
shorting the batteries including not touching metal
cabinet and battery terminals simultaneously.
The policy of Tripp Lite is one of continuous improvement. Specifications are subject to change without notice.
Regulatory Compliance Identification Numbers
For the purpose of regulatory compliance certifications and identification, your Tripp Lite product has been assigned a unique series number. The series number
can be found on the product nameplate label, along with all required approval markings and information. When requesting compliance information for this product,
always refer to the series number. The series number should not be confused with the marking name or model number of the product.
This product designed and engineered in the USA.
Note on Labeling
Two symbols are used on the label.
V~ : AC Voltage
V : DC Voltage
