Hella 2XT 959 680 Serie Instructions De Montage

Part Number: 2XT 959 680-xxx
Hella-New Zealand Ltd.

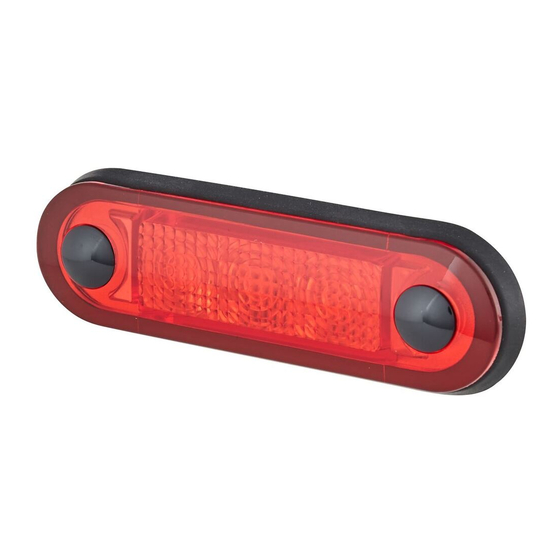

LED STEP LAMP, FLUSH MOUNT (Wide rim)
Lamp Mounting Instructions
Ensure the lamp is mounted on a flat surface with the screws/gasket provided. The lens may be used as a
template for drilling the mounting holes. Mount the lamp with the
below) and either fit screw caps into the mounting hole recesses of the lens, or clip on the metal cover.
NB: Metal covers will not fit over the screw caps.
Note: If it is necessary to remove the screw caps, use a pin.
logo
Mounting Surface
Ø4 x2
All dimension in millimetres
Wiring Colour Coding
Lamp is polarity conscious. The reversal of the polarity will not damage this product but will inhibit its function.
HELLA recommends wire connections be soldered, and heat shrink tubing applied to seal the joint.
Part Number Lamp Colour
2XT 959 680-4x Warm White Lamp
2XT 959 680-6x Blue Lamp
2XT 959 680-7x Red Lamp
2XT 959 680-8x White Lamp
2XT 959 680-9x Green Lamp
NB: Lamp must be protected by a fuse rated at 2 amperes maximum.
For general comments about Hella's product please contact us on E-mail at techfeedback@hella.co.nz
logo on the top side (see diagram
Peak light output is projected down at 30°
83.9
58.7
44.0
Cable Cable Voltage Power Consumption
Earth (-) Positive (+)
Black White/Yellow 10-33V
Black Blue 10-33V
Black Red 8-28V
Black White 10-33V
Black Green 10-33V
Hella-New Zealand Ltd.
LED STEP LAMP, FLUSH MOUNT (Wide rim)
Lamp Mounting Instructions
Ensure the lamp is mounted on a flat surface with the screws/gasket provided. The lens may be used as a
template for drilling the mounting holes. Mount the lamp with the
below) and either fit screw caps into the mounting hole recesses of the lens, or clip on the metal cover.
NB: Metal covers will not fit over the screw caps.
Note: If it is necessary to remove the screw caps, use a pin.
Wiring Colour Coding
Lamp is polarity conscious. The reversal of the polarity will not damage this product but will inhibit its function.
HELLA recommends wire connections be soldered, and heat shrink tubing applied to seal the joint.
Part Number
2XT 959 680-4x
0.5 watt
2XT 959 680-6x
0.5 watt
2XT 959 680-7x
0.5 watt
2XT 959 680-8x
0.5 watt
2XT 959 680-9x
0.5 watt
NB: Lamp must be protected by a fuse rated at 2 amperes maximum.
For general comments about Hella's product please contact us on E-mail at techfeedback@hella.co.nz
959 149-46 / 05.18
Part Number: 2XT 959 680-xxx
logo on the top side (see diagram
logo
Peak light output is projected down at 30°
83.9
Mounting Surface
58.7
Ø4 x2
44.0
All dimension in millimetres
Lamp Colour Cable Cable
Earth (-) Positive (+)
Warm White Lamp Black White/Yellow
Blue Lamp Black Blue
Red Lamp Black Red
White Lamp Black White
Green Lamp Black Green
Voltage Power Consumption
10-33V 0.5 watt
10-33V 0.5 watt
8-28V 0.5 watt
10-33V 0.5 watt
10-33V 0.5 watt
959 149-46 / 05.18
