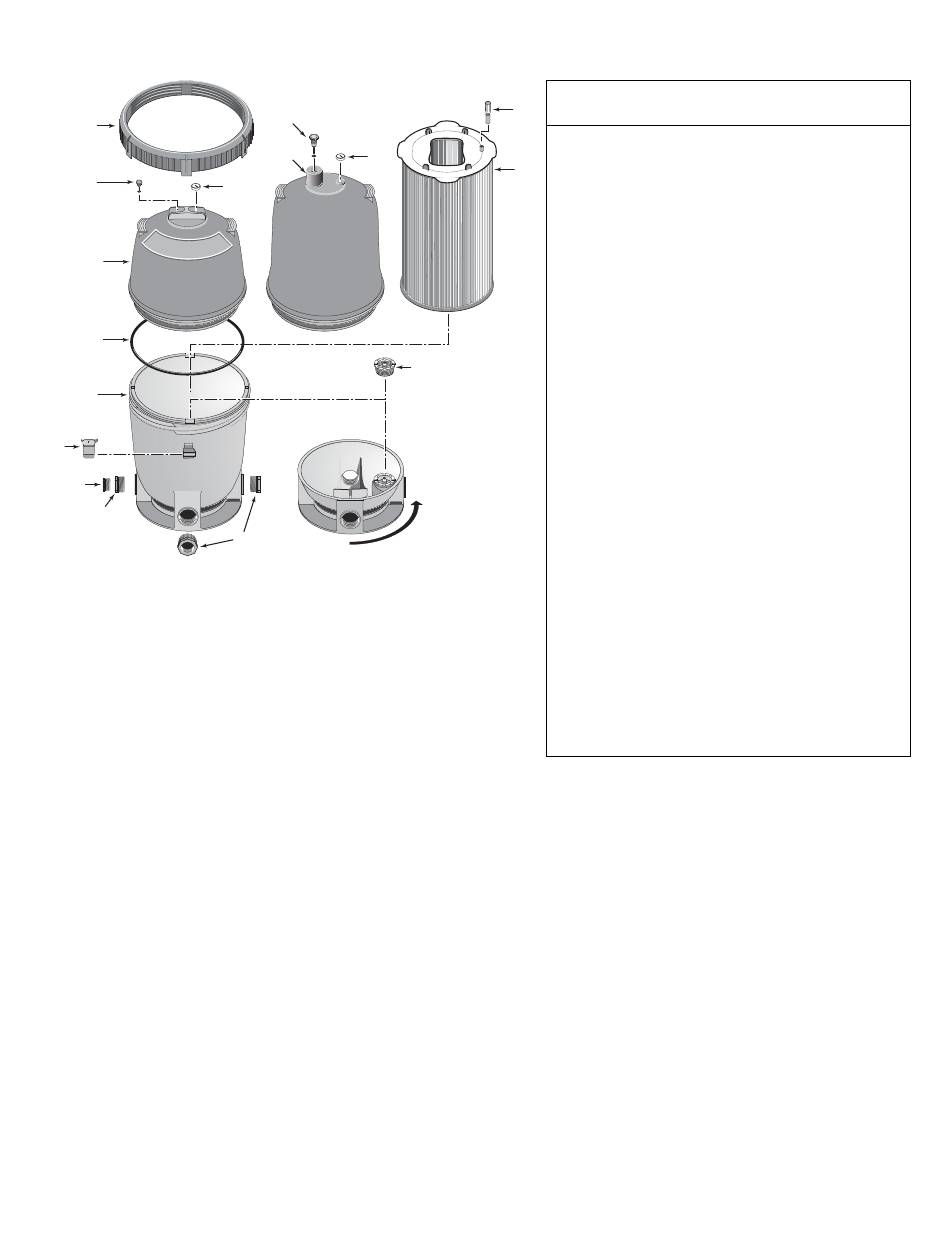

Repair Parts List - STA-RITE System 2 PLM100 Notice D'utilisation

1
2A
10
3A
4
5
RELEASE RELEASE
6
7
OUTLET OUTLET
8
2B
3B
10
13
9
Base rotated 90 to show
check valve installed.
4309 0203
Key
No. Description
11
1 Posi-Lok™ ring*
2A Air release valve assembly
2B Air release valve
12
assembly (PLM300)
3A Tank shell upper half*
3B Tank shell upper
half (PLM300)*
4 Tank O-ring
5 Tank shell lower half
6 Safety latch for ring
7 1-1/2" NPT plug w/O-ring***
8 Adapter fitting***
9 2" x 1-1/2" Pipe reducer**
10 Pressure gauge***
11 Air bleed assembly
12 Filter module (PLM100)
12 Filter module (PLM125)
12 Filter module (PLM150)
12 Filter module (PLM175)
12 Filter module (PLM200)
12 Filter module (PLM300)
13 Spring check valve**
• Accessory package
• Decal, logo
• Decal, warning
• Decal, operating instr.
• Decal, nameplate (PLM100) 1 27002-0042
• Decal, nameplate (PLM125) 1 27002-0048
• Decal, nameplate (PLM150) 1 27002-0045
• Decal, nameplate (PLM175) 1 27002-0049
• Decal, nameplate (PLM200) 1 27002-0050
• Decal, nameplate (PLM300) 1 32155-4164
• Decal, inlet***
• Owner's manual
• Teflon tape***
• O-ring grease***
• Not illustrated.
* Includes all decals and labels.
** Optional equipment.
*** Shipped in accessory package.
