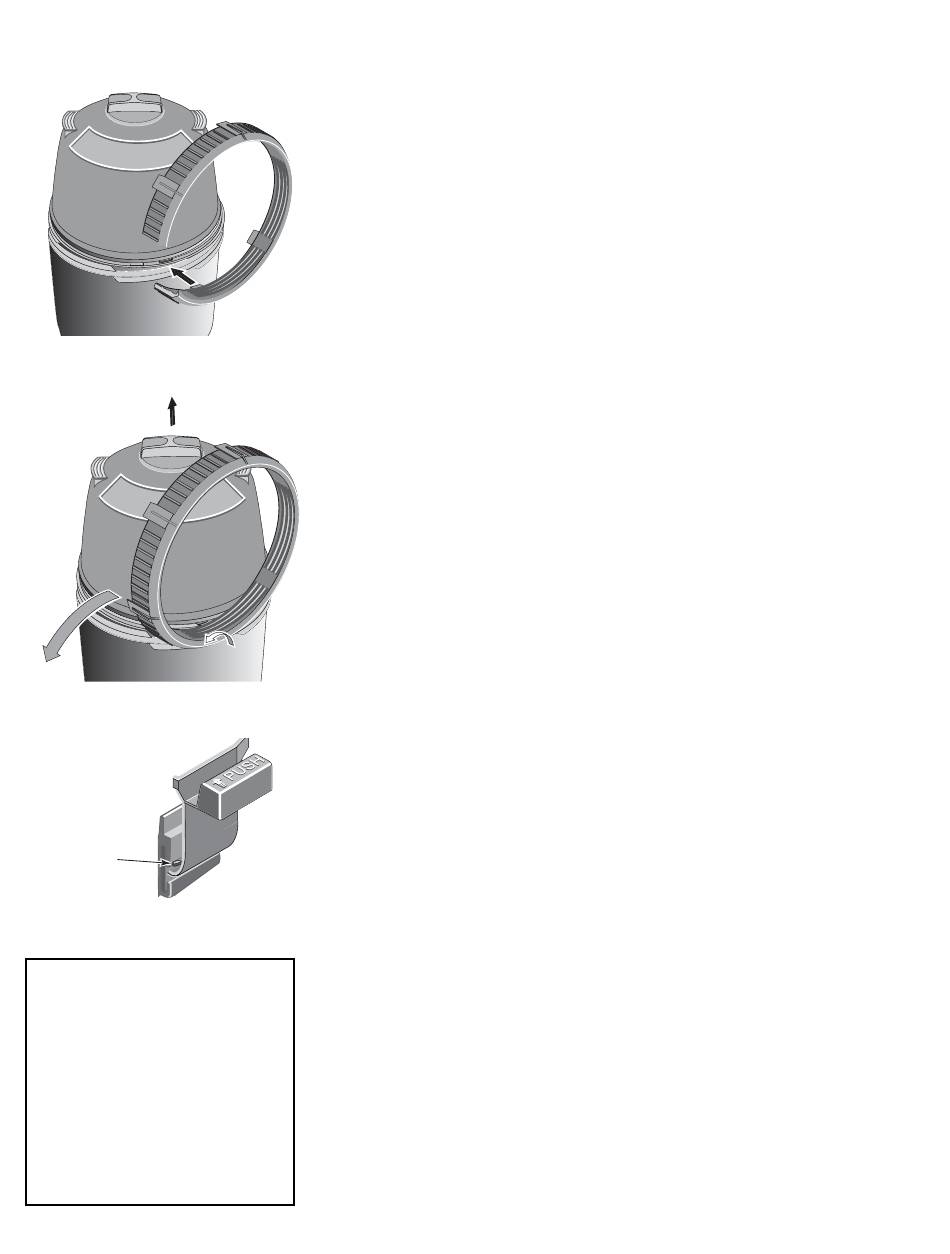

Figure 5 – Insert ring tab in slot in

2152 1195

filter body.

Figure 6 – Roll ring to one side to

loosen upper tank half.

Small

Catch

Figure 7 – Safety Latch

When to Clean the Filter

The filter module should normally be

cleaned when the pressure gauge read-

ing increases 10 PSI over the start-up

pressure (record the start-up pressure

under "Owner's Information", Page 3).

In some pools, accessories such as

fountains or pool cleaners may be no-

ticeably affected by the normal decrease

in flow as the filter becomes dirty. If so,

clean the filter more frequently (that is, at

a pressure increase of less than 10 PSI)

in order to maintain the required flow.

NOTICE: Make sure that waste water disposal complies with local codes

and ordinances.

4. Remove drain plug and drain all water from tank.

5. Remove Posi-Lok™ ring as follows:

a. Press safety latch (below the ring) toward the tank to release it (see

Figure 4).

b. Hold latch in the release position and rotate ring COUNTERCLOCKWISE

to remove. If ring is difficult to turn, tap gently with a rubber mallet to

overcome initial resistance.

NOTICE: DO NOT use screwdriver or bladed instrument that may damage

shell surfaces to pry tank shells apart.

6. Separate upper and lower tank shell halves using tabs on bottom of Posi-

Lok™ ring. Insert tab into slot located at tank joint and twist ring to pry shell

halves apart. See Figures 5 and 6.

7. Remove O-ring from upper tank shell. Inspect for cuts, cracking, deforma-

tion or signs of wear; replace if necessary.

NOTICE: To avoid strain or damage, allow filter module to drain before lift-

ing it out of the tank.

SAFETY LATCH (See Figure 7)

The purpose of the safety latch is to hold the Posi-Lok™ ring in the locked po-

sition. If the latch is damaged, replace it as follows:

1. Press down on the small catch behind the safety latch and press or tap the

latch out of the "Tee" slot in the tank (see Figure 7).

2. Snap the new latch into position.

NOTICE: DO NOT operate the filter if the safety latch is damaged or will not

hold the Posi-Lok™ ring in the locked position.

Assembly:

1. Inspect and clean the tank, ring threads and O-ring groove. Replace dam-

aged parts as necessary.

2. Install the filter by placing the port in the bottom of the filter cartridge over

the tank outlet port. Push down firmly to seal.

3. Ensure that the air bleed assembly on top of the module is clean and prop-

erly mounted.

NOTICE: Lubricate O-ring only with the silicone grease provided or equiva-

lent, as other lubricants may cause the ring to swell. DO NOT lubricate

Posi-Lok™ ring or threads on lower tank shell as this may collect grit and

make removal difficult.

4. Install the O-ring in the upper tank shell O-ring groove. Be sure that the

O-ring is clean and not twisted.

5. Push the upper tank shell into the lower tank shell to compress the O-ring.

6. Place the Posi-Lok™ ring squarely over the tank shell threads and rotate

COUNTERCLOCKWISE until the ring falls into the slots; then rotate

CLOCKWISE until securely latched.

7. Follow instructions in the "Initial Startup" section of this manual.
