INSTRUCTION SHEET
2SB 980 606-xxx / 2SB 959 060-621 /
for:
APPLICATION AND
MOUNTING INSTRUCTIONS

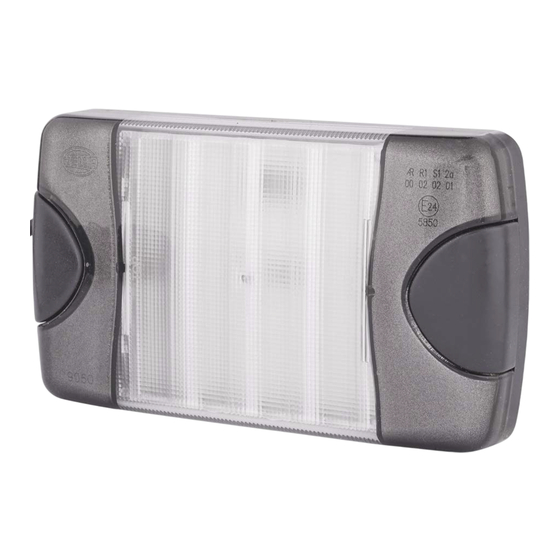

DuraLED
®
STOP / REAR POSITION LAMP
Multivolt 9 - 33 volts
Lens Marking and Installation Requirements
This lamp module, identified by lens marking E
comply with ECE Regulation 7 Categories S1 and R1 for Stop / Rear Position Lamps.
• A tolerance of +/-3 degrees applies on all mounting details.
• Lamp module mounting plane must be vertical to the ground.
• Lamp module reference axis must be parallel to the vehicle longitudinal axis.
• Lamp module centre line must be horizontal (P/N 2SB 980 606-0xx, 2SB 980 606-2xx and
HM060621) or vertical (P/N 2SB 980 606-5xx and 2SB 980 606-7xx) to the ground.
• Lamp is approved to be mounted only with lens engraving "TOP" located correctly.
• Lamp module must be visible from 45° inboard and 80° outboard, as well as from 15° above
and below the horizontal axis.
• At least two lamps are required.
• Lamps must not be mounted less than 350 mm and more than 1500 mm above the ground,
two additional lamps can be mounted at a vertical distance no less than 600 mm from the
mandatory lamps.
• Lamps must be mounted within 400 mm of the widest point of the vehicle and no closer than
600 mm together.
Please refer to ECE Regulation 48 for further details.
Note: Lamp does not include a reflex reflector.
Horizontal Mount
P/N 2SB 980 606-0xx, 2SB 980 606-2xx & HM060621
Lamp module mounting plane
TOP
Centre
line
HELLA-New Zealand Limited, Auckland
HM060621
5850 and the logo was manufactured to
24
Vertical Mount
P/N 2SB 980 606-5xx & 2SB 980 606-7xx
Centre line
TOP
Reference
Axis
Reference Axis
959 150-75 / 05.19
