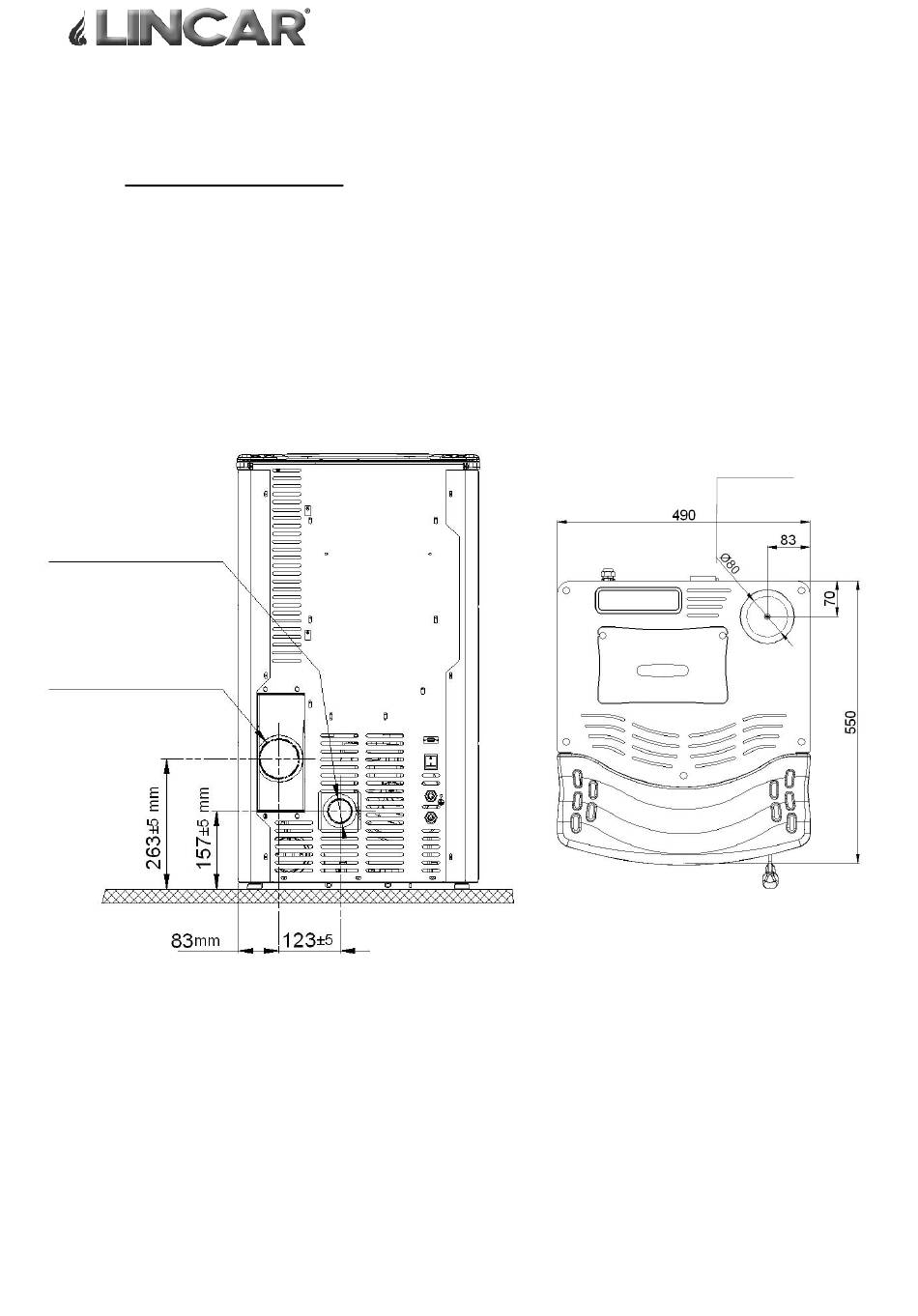

DIMENSIONS FOR EXAUST TUBE CONNECTION AND AIR SUCTION
Attention to stove model.
•
In case that it's necessary to make hole in wall for exhaust fume, proceed as follows :
•
Measure and draw with real dimension on the wall the points for stove connection;
−
Realize the hole on the wall.
−
Connect the stove to the flue with the tube for exhaust fume.
−
In case that the exhaust tube has a connection position not horizontal (f.e.up
−
connection ) it's necessary to maintain a security distance of exhaust tube from wall
of 100 mm
Air Suction
Ø50 mm
Rear Exhaust Fumes
Ø80 mm
