VENT INSTALLATION

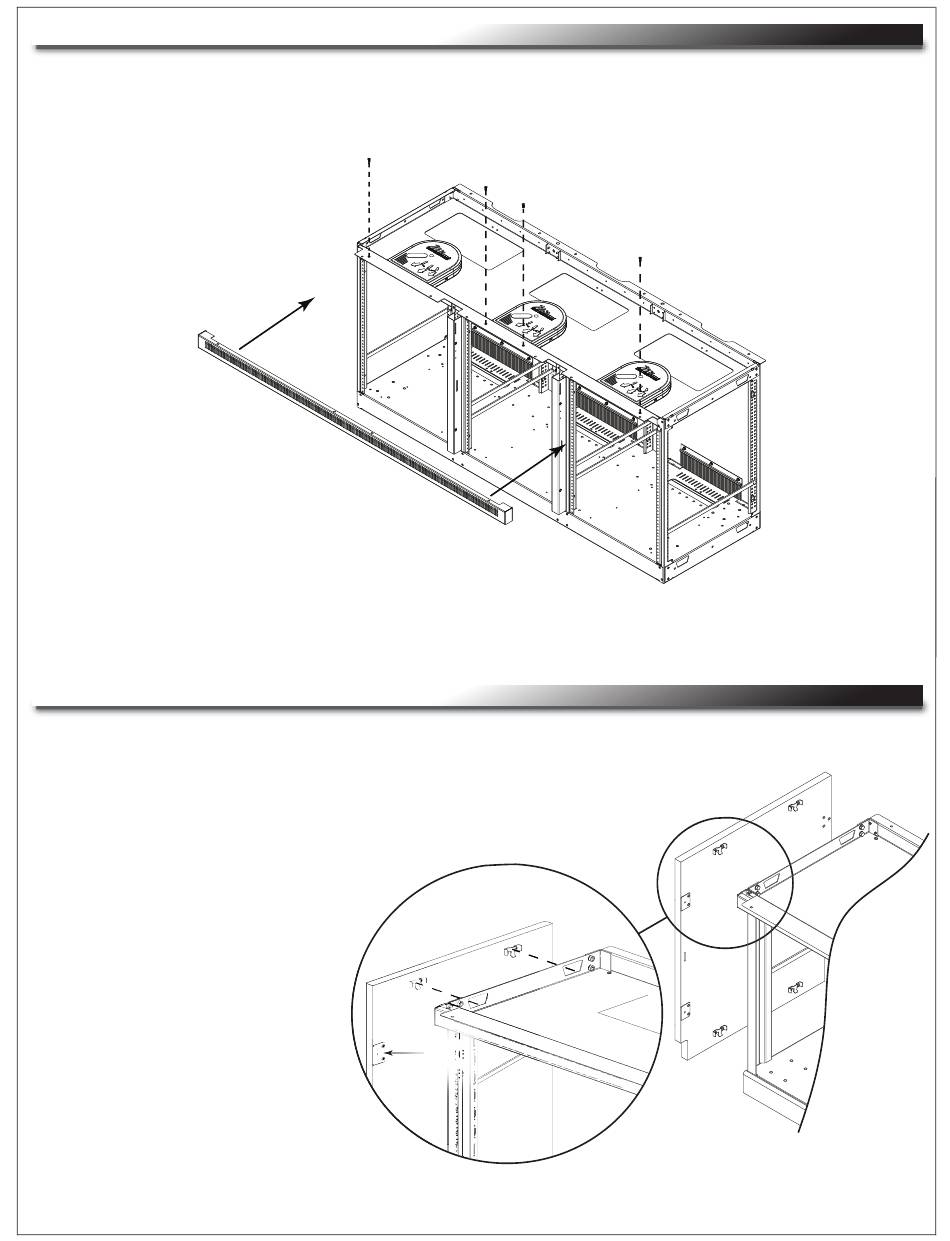

1. Place vent underneath the flange. (FIGURE A)
2. Use a #2 Phillips driver, and 10-32 screws (use hardware kit #91-00507) to attach the vent into the top
of the frame.

SIDE PANEL INSTALLATION

NOTE:
• C5-FF27-X and C5-FF31-X MODELS ONLY:
If installing a C5MM monitor mount kit, install
stabilizing feet and monitor mount
support brackets per instruction I-00749 prior to
attaching
panels and doors to frame.
For accessories related to the side panels,
please read those instructions thoroughly before
proceeding with the following
FIGURE A
wood side
Door
Hinge
Plate
Page 7
FIGURE B
