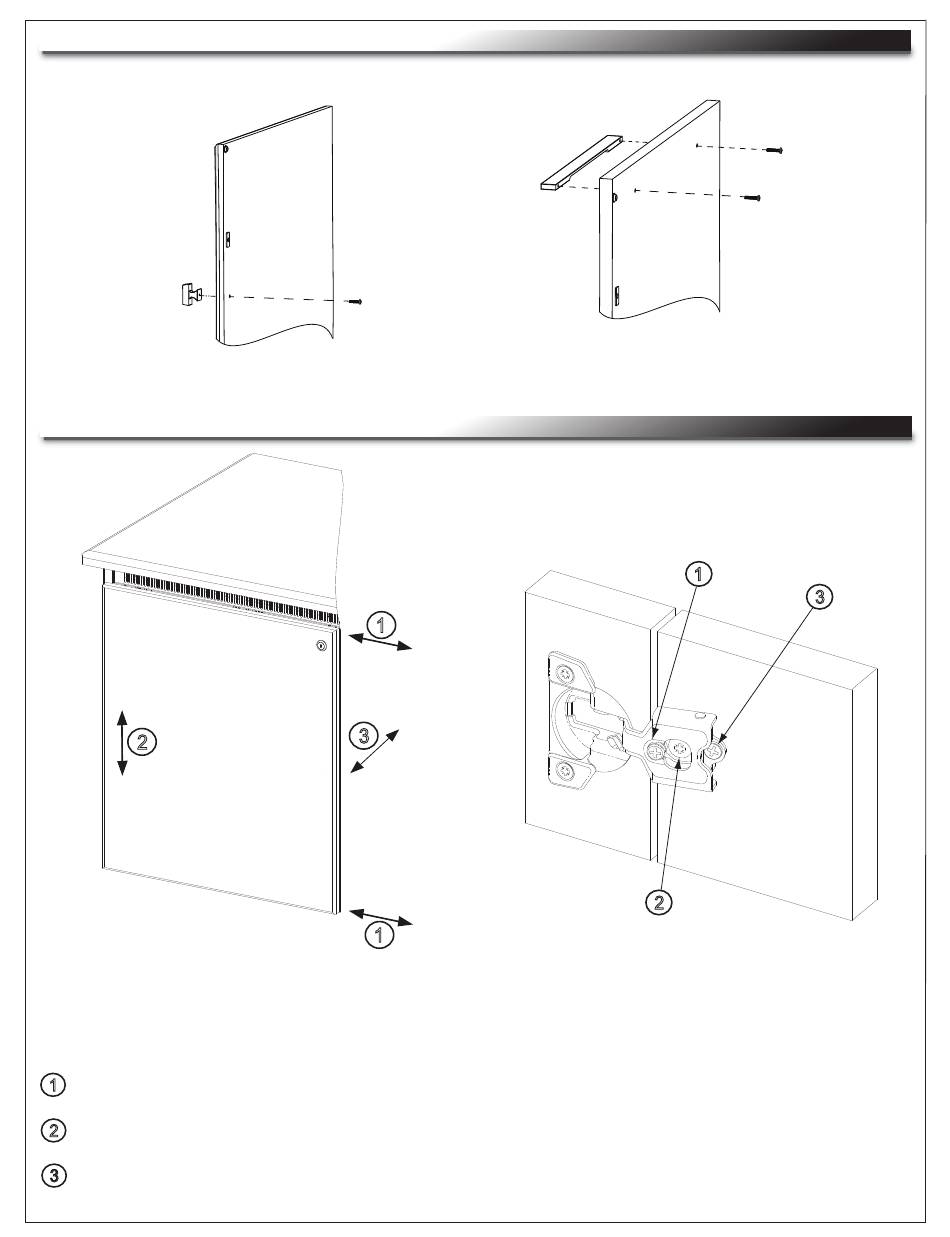

LOCK/KNOB INSTALLATION
• Install lock/knob into pre-drilled pilot holes. (FIGURE F)
HINGE ADJUSTMENTS
2
Directional adjustments apply to the door in the closed position. Hinge adjustment is done with door in
open position. See (FIGURE G) for appropriate adjustments.
Side Adjustment: Adjusts horizontal placement of door. Adjusts door-to-door gap.
1
Height Adjustment: Adjusts vertical height of door.
2
Depth Adjustment: Adjusts the space between the door and the face of the frame of credenza.
FIGURE F
1
3
1
FIGURE G
Page 11
1
2
Door in open position.
3
