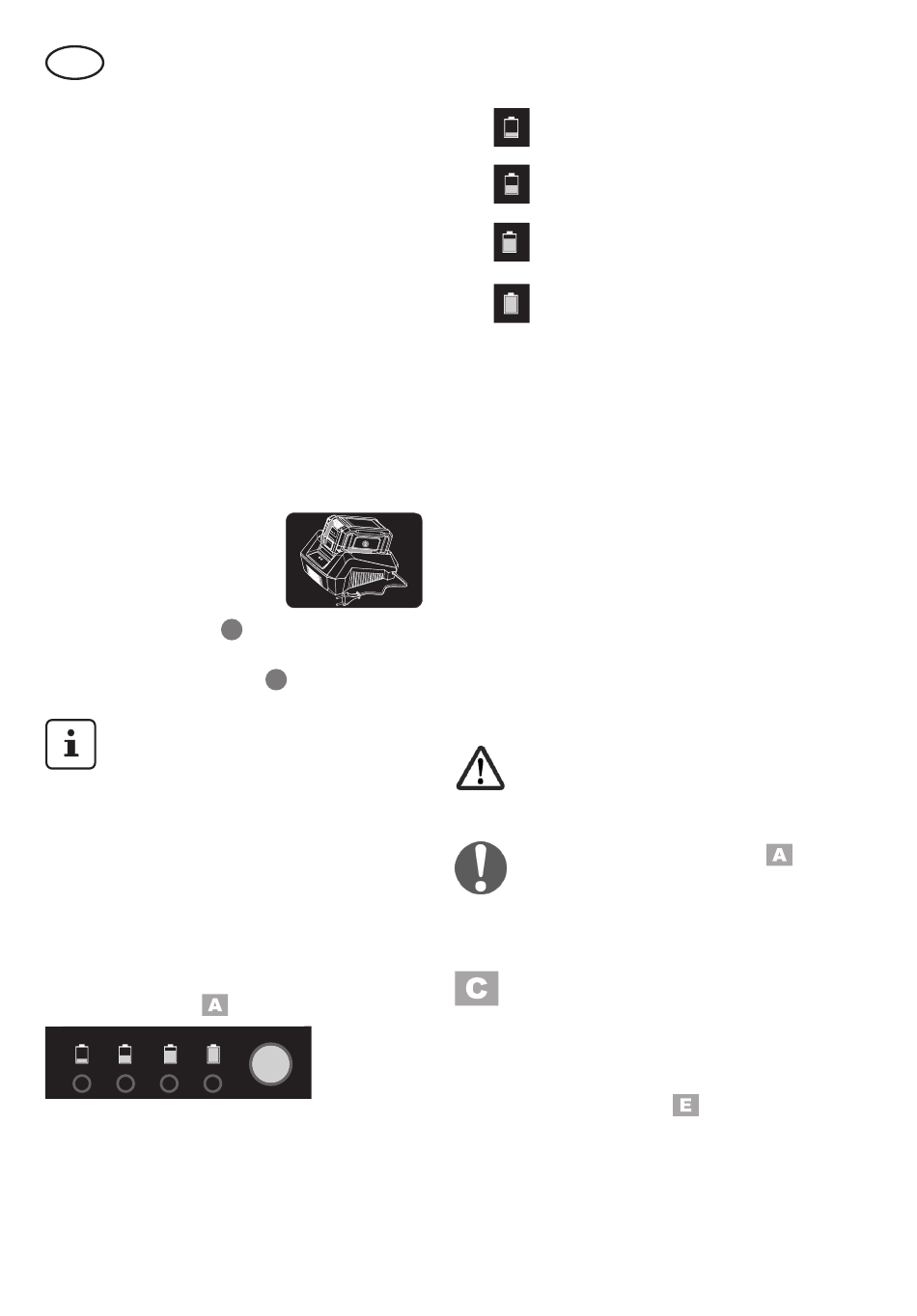

GB
> Left LED on the charger is
flashing green;
> Right LED on the charger is
illuminated red.
> Four LEDs on the rechargea-
ble battery are flashing green.
4. The charging process is con-
cluded ("Fully charged"):
> Left LED on the charger is il-
luminated green;
> Four LEDs on the recharge-
able battery are illuminated
green than go out.
5. After the charging process, dis-
connect the charger (29) from
the mains supply.
6. Slide the unlock
button (26) on
the rechargea-
ble battery (27)
upward (
chargeable battery out of the
charger (29) (
Only charge a rechargeable battery
that is too hot or too cold (T > 50°C
or T < 0°C) after it has cooled down
or warmed up:
> Right LED on the charger is
flashing red.
Checking the charge status of
the rechargeable battery
1. Press the button (25) on the recharge-
able battery (
The LED display is illuminated accord-
ing to the capacity of the rechargeable
battery.
68
All manuals and user guides at all-guides.com
1
) and take the re-
).
2
27).
Capacity <25% - please charge.
Capacity 25-50%.
Capacity 50-75%.
Capacity 75-100% - recharge-
able battery is charged

Used batteries

• If a fully recharged battery lasts for
considerably shorter operating times,
the battery is used up and needs to be
replaced. Only use an OEM battery
pack replacement available from our
Customer Service.
• Always take heed of the applicable
safety instructions as well as the envi-
ronmental protection regulations and
information (see "Waste Disposal and
Environmental Protection").

Initial Operation

Only insert the rechargeable bat-
tery when the device is complete-
ly assembled. Danger of injury!
Ensure that the safety key (
is removed before all tasks.

Mounting grip rod

Mount central bar:
1. Place the central bar (7) on the
lower bar (10). If the assembly
is correct, the bore in the plastic
shroud (21) will be underneath
the pipe (see
2. Screw the central bar (7) with
the enclosed screws, butterfly
nuts and
left on the lower bar (10). The
butterfly nuts point inwards.
23)
).
washers (12) right and
