Connections and Setup
Connecting the Speakers

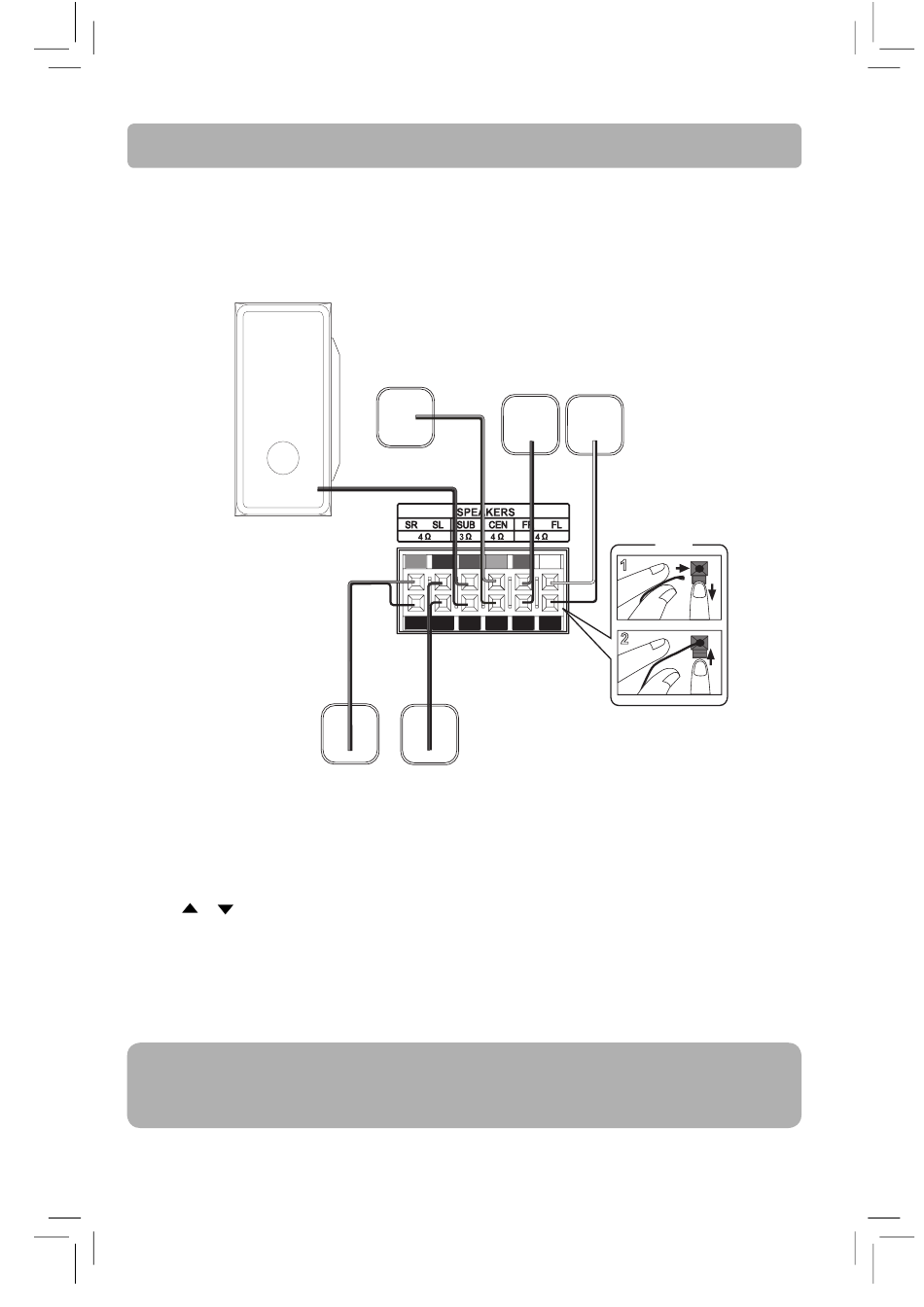

Speaker wires are color-coded to match the terminals. Connect the speaker wire from the back of each
speaker to the corresponding color terminal at the back of the unit. Press down the tab to open the terminal
and insert the wire. Release the tab to lock wire in the terminal.
Subwoofer
Gray and Black
To adjust each speaker volume level for optimum listening experience.
1) Press LEVEL button on the remote control to select the speaker FL (front Left speaker) on the unit
display.
2) Press or buttons to adjust the value up or down (between -10dB and +10dB).
3) Repeat step (1) and (2) for the other speakers FR, CT, SW, SL, SR.
Speaker gains may be set to levels of up to +10dB, actual max levels may also depend on your
Volume Setting.
Note: When connecting the speakers, make sure the polarities ("+" speaker wire to "+" on the receiver)
of speaker wires and terminals match. For example, red wire to red terminal on the receiver. If the cords
are reversed, the sound will be distorted. Do not let the speaker wires touch each other, it will damage
the system's amplifi er.
