Connections and Setup

Connecting the Antenna

FM antenna
The FM antenna connects to the FM terminal on the
system's back panel. It must be hooked up in order
to receive clear reception.

Connecting to your TV

Method 1 (best)
HDMI
• Connect the HDMI OUT jack on the rear of the unit
to the HDMI IN jack on your TV using an HDMI
cable (not included).
• You can select the resolution of the player's HDMI
output signals (Auto, 480i, 480p, 720p, 1080i or
1080p) to match your TV's resolution capabilities.

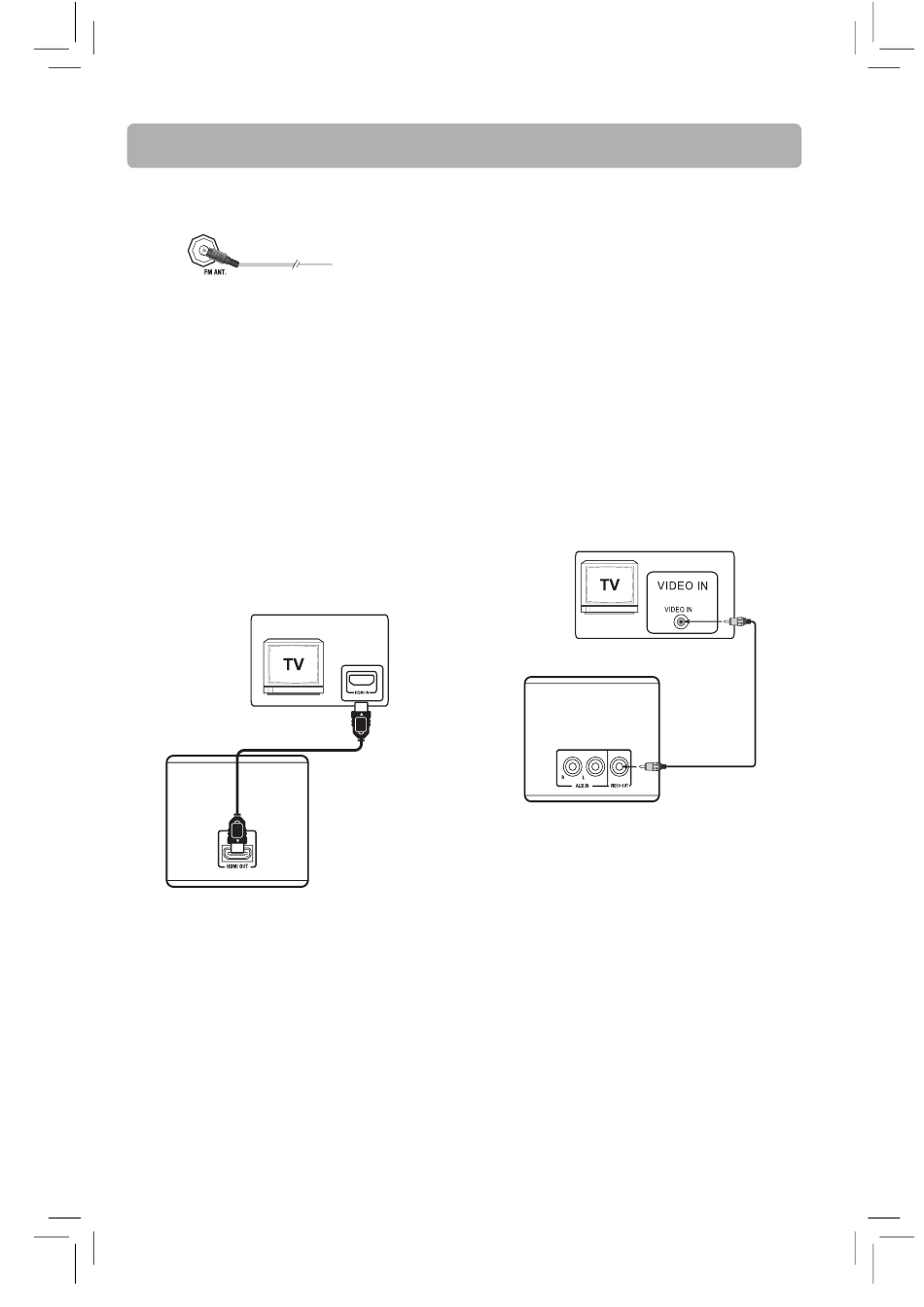

Method 1
HDMI cable
(not supplied)
To HDMI
output
Rear of the unit
Notes
• Refer to the owner's manual of the connected TV
as well.
• HDMI, the HDMI logo and High-Defi nition
Multimedia Interface are trademarks or registered
trademarks of HDMI licensing LLC.
• If your television is a high defi nition television
with an HDMI input, we highly recommend you
use the unit's HDMI output to get the highest pos-
sible video resolution.
