Connections and Setup

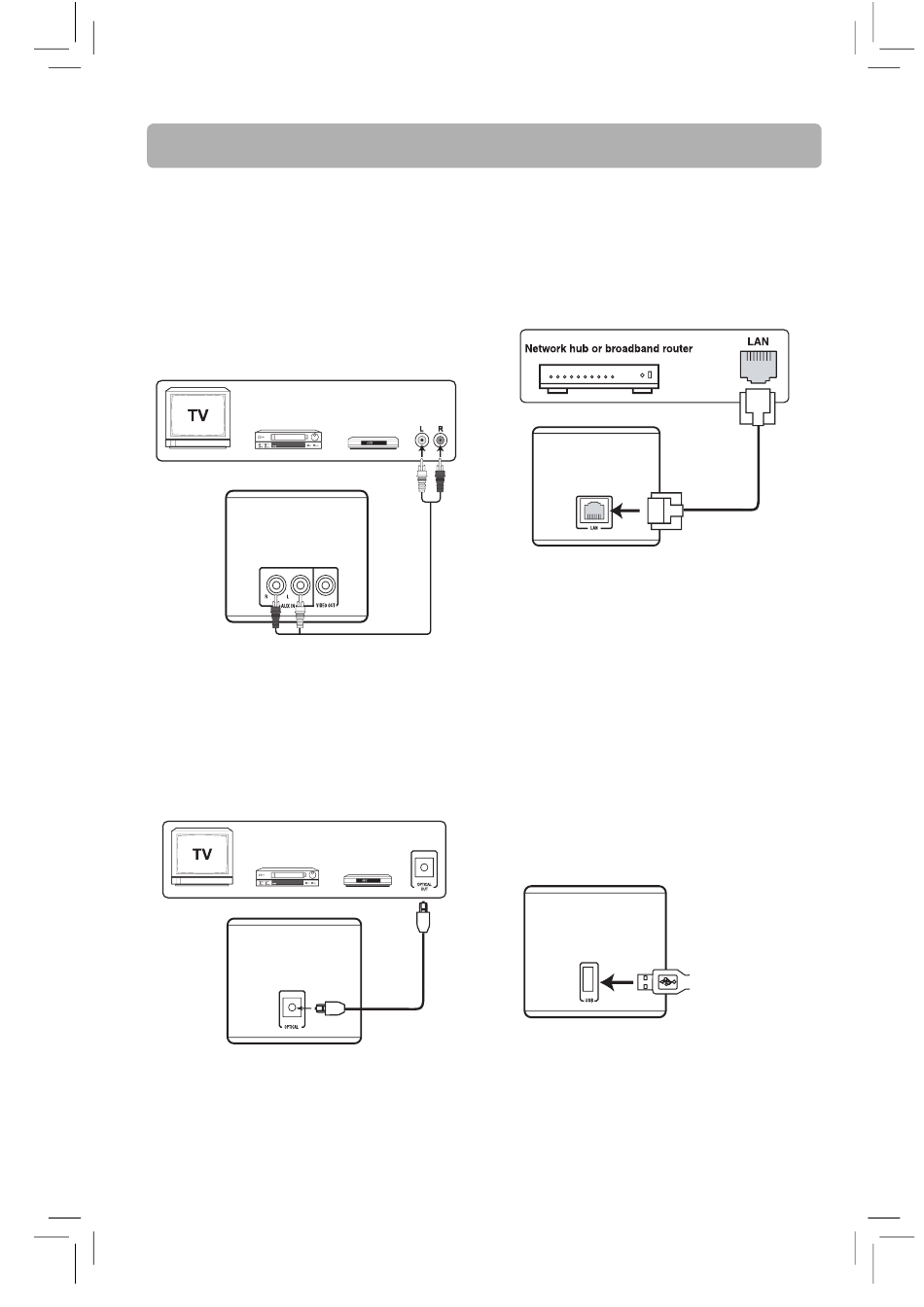

Getting sound from External Sources
such as TV
Using AUX IN Jacks
Connect the AUX IN jacks from the unit to the
AUDIO OUT jacks on TV, SAT/Cable Box, VCR or
other component. Press either SOURCE button on
the main unit or AUX button on the remote control
to select AUX mode.
VCR
or
white
red
Rear of the unit
Using OPTICAL Jack
Connect the OPTICAL jack on the back of the unit
to the OPTICAL OUT jack on TV, SAT/Cable Box, VCR
or other component. Press either SOURCE button
on the main unit or OPTICAL button on the remote
control to select OPTICAL mode.
VCR
or
Rear of the unit
Connecting your player to a wired
network router
Connect an Ethernet cable (CAT5 or better with
RJ45 connector) to the ETHERNET jack on the back
of your player and to an Ethernet jack on a network
hub or broadband router.
SET/
AUDIO OUT
Cable Box
or
Notes
• Do not connect a modular phone cable to the
Audio cable
• When plugging or unplugging the cable, hold
(not included)
• Because there are various connection confi gurations,
Connecting a USB fl ash drive
You can connect the USB flash drives (not included
SET/
to the USB jack on the rear of DVD player.
Cable Box
or
Optical digital cable
(not included)
Note: If you cannot easily insert the USB fl ash drive,
you may have inserted it incorrectly. Try to turnover
the device and then insert again.
EN - 7
Rear of the unit
ETHERNET jack.
the connector on the end of the cable. When
unplugging, do not pull on the cable. Press down the
lock tab and pull the connector out of the jack.
follow the instructions from your Internet service
provider.
Rear of the unit
LAN cable
(not included)
USB fl ash drive
(not supplied)
