6.4 Connection of the power
supply line
Earth cable should be about 10mm longer
than the other two, so that it will not be
disconnected accidentally if pulled.
Insert the cables for the connection to the power
supply line inside the housing through the cable
glands. The cable glands are suitable for conductors
with diameters of between 5mm and 10mm. The
section of the cable inside the housing must be
sufficiently long to allow connection. Suitably lock
the cable glands.
Remove the conductors protective sheathing and
connect them to terminal (board power supply, 6.3
Board description, page 10).
6.4.1 Type of cable
The cable used for the connection to the power
supply line must be suitable for the intended use.
Comply with the current national standards on
electrical installations.
12
6.5 Installation of the version
with double filter for air renewal
During installation pay attention to the
orientation of the air inlet filter fins.

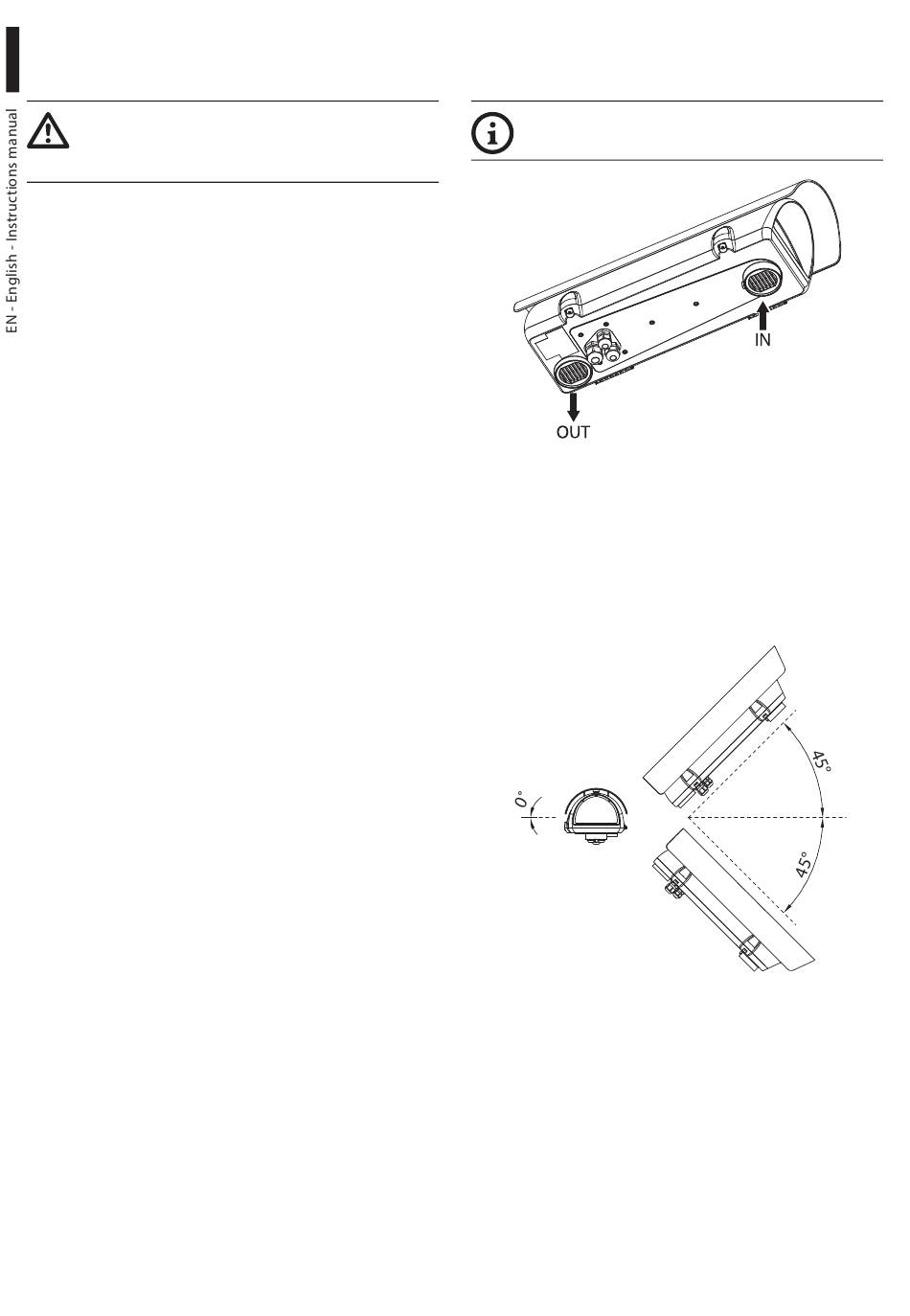

Fig. 7
Depending on the angle of inclination of the housing,
the orientation of the filter fins must prevent water
penetrating in case of rain:
To guarantee the weatherproof, install the housing
on the support following the inclination limits as
shown in the picture.
Fig. 8
Maximum tilt of the transversal axis: 0°.
Maximum tilt of the longitudinal axis: ±45°.
6.6 Desiccant bag
Take the dessicant salt bag out of its pack and insert it
into the product.
