6 Installation
6.1 How to open the housing
Loosen the 2 screws on the side, turn the cover and
the upper half of the body about the opening hinge
axis.

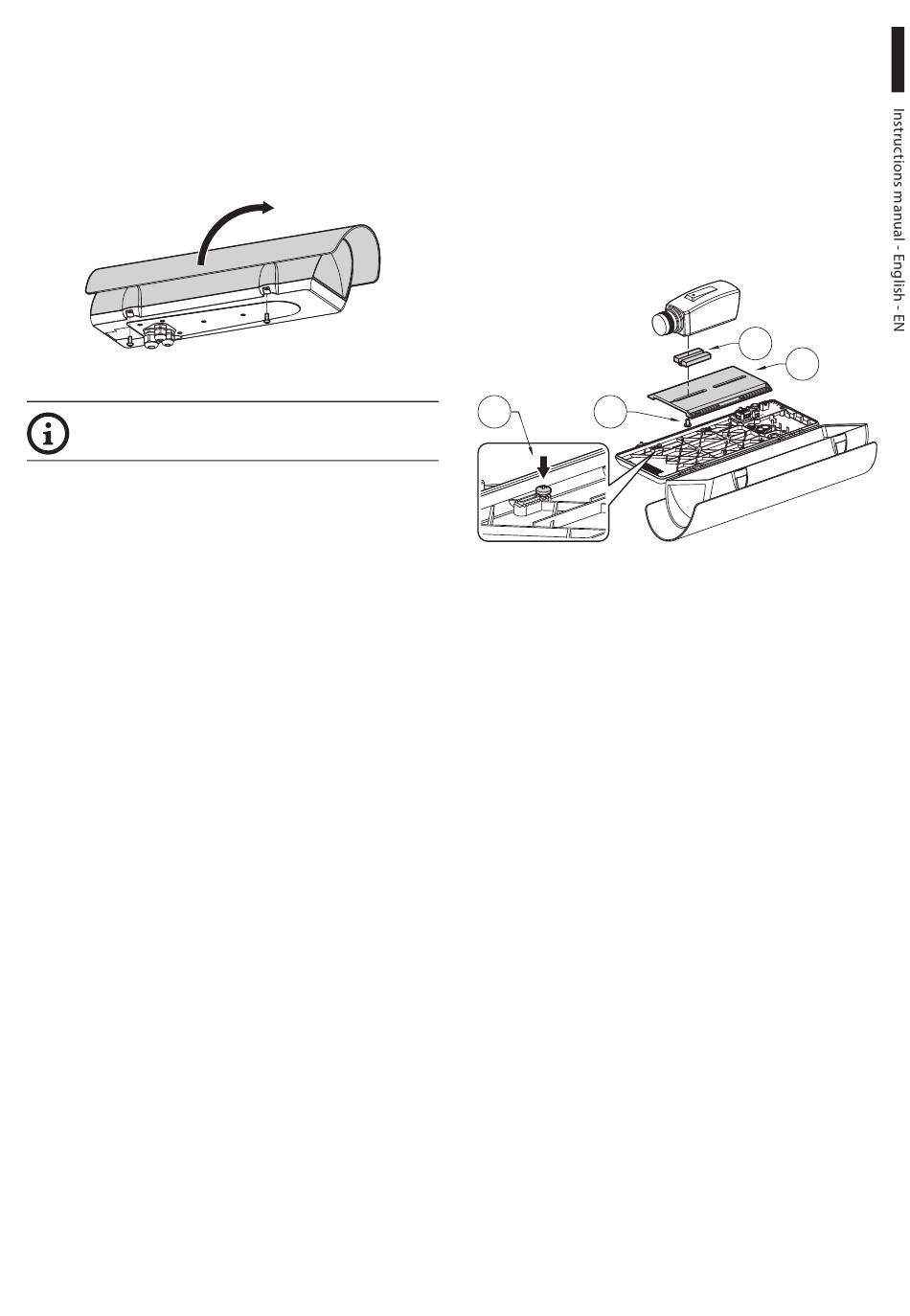

Fig. 1
At the end of istallation and cabling
operations close the housing.
MNVCHPVB_1511_EN
6.2 How to install the camera
Open the housing as described (6.1 How to open the
housing, page 9).
Partially loosening the fastening screws (01).
Remove the internal slide (02) by sliding it until the
holes coincide with the slide fastening screws.
Fasten the camera with the 1/4" screw (03). To
position the camera and lens correctly, if necessary,
use the supplied spacers. (04).
01 03
Fig. 2
Reposition the internal slide and tighten the screws
that had been loosened previously.
Remove the conductors protective sheathing and
connect them to terminal (camera power supply, 6.3
Board description, page 10).
The camera's power supply cable conductors must be
tied up with a cable tie next to the terminal. Keep the
signalling and power supply cables separated from
each other.
04
02
