PREPARATION

Before beginning assembly of the product, make sure all parts are present. Compare parts with
package contents list and hardware contents list. If any part is missing or damaged, do not attempt to
assemble the product.
Estimated Assembly Time: 45 minutes
Tools Required for Assembly (not included): Philips Screwdriver, Step Ladder, Tape and Pliers.

ASSEMBLY INSTRUCTIONS

IMPORTANT: To avoid over-pull to damage the wire and plug, turn off circuit breakers and wall
switch to the fan supply line leads.

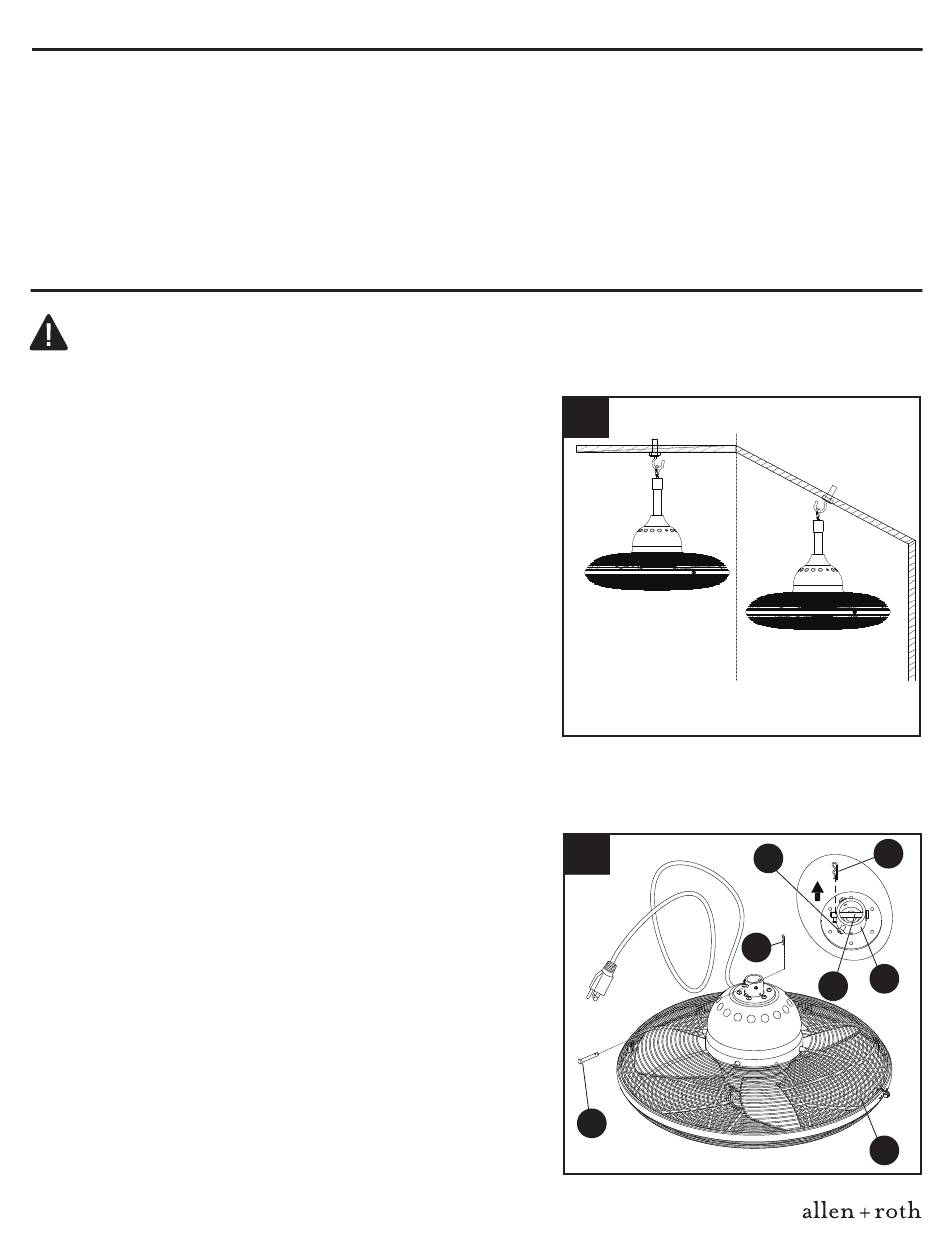

1. Choose the desired mounting method:
A. Standard Mounting:
Note: For a ceiling higher than 8 ft., you can
purchase an extension downrod.
B. Angle Mounting: Angle mounting is used for
vaulted or angled ceilings. If using the angle
mount, make sure the ceiling angle is not steeper
than 30° and the open end of the mounting
bracket (not included) is up and facing the ceiling.
Note: The preferred mounting method is to gazebos
or pagodas. However, other mounting methods
are also supported. For example, the fan can be
mounted on a drywall, provided the surface
supports a minimum weight of 100 lbs.
2. Remove the clip (H) and cross pin (G) from the
coupling (F) on the motor body (D). Loosen the
coupling screws (I) on the motor body (D).
1
2
G
5
A
I
H
G
