ASSEMBLY INSTRUCTIONS

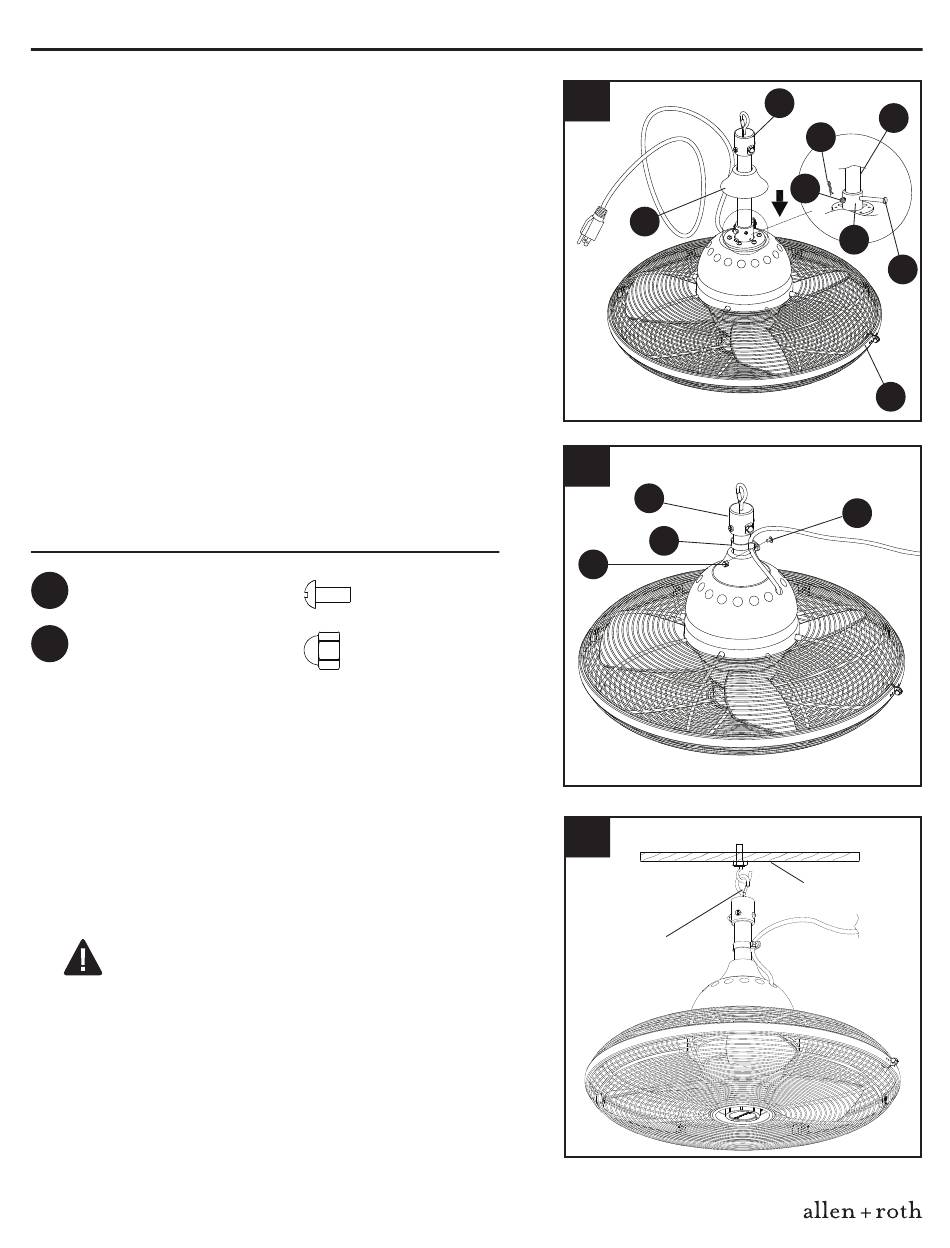

3. Insert downrod assembly (A) through coupling cover
(B) into coupling (F). Make sure to align the hole in
downrod assembly (A) with the hole in coupling (F).
Install cross pin (G) through coupling (F) and downrod
assembly (A). Insert clip (H) into cross pin (G) until it
snaps into place. Tighten coupling screws (I) and slide
the coupling cover (B) onto the motor body (D).
4. Secure the wire from motor body (D) to the downrod
assembly (A) with rod clip (C). Use set screw (AA) and
acorn nut (BB) to tighten rod clip (C).
Hardware Used
AA
Set Screw
BB
Acorn Nut
5. For ceiling-mount installations, attach a standard
mounting bracket (not included) to a ceiling or outdoor
gazebo/pagoda per the bracket instructions. Then,
attach the fan assembly to the mounting bracket from
the spring clip on downrod assembly (A).
WARNING: Ensure the hanging structure
can support a minimum weight of 100 Ibs. and
allow enough depth for safety mounting. If you are
not sure the hanging structure can support the
weight, do not attempt to install this fan as it may
fall and cause damage to the fan or personal
injury.
3
4
BB
x 1
x 1
5
Spring Clip
6
A
H
I
B
A
C
Bracket
allenandroth.com
A
F
G
D
AA
