Quick Set-up Guide

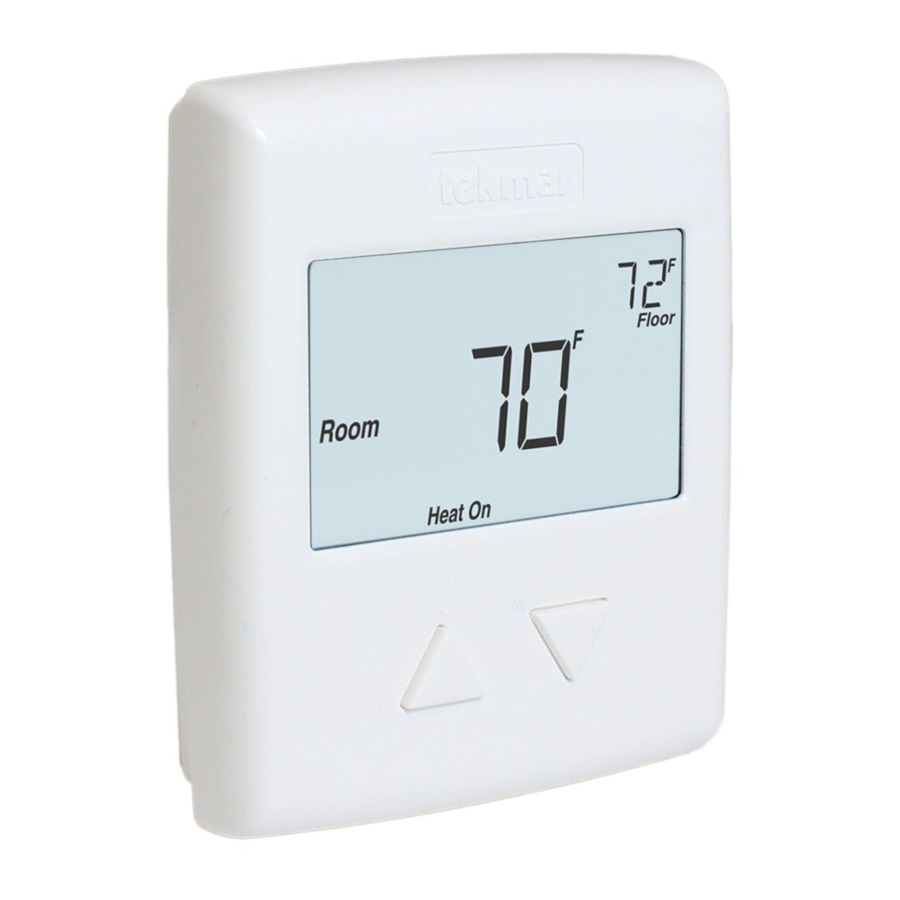

Thermostat 518
1.
Location
2.
Remove Mounting Base
3.
Installation to Wall
© 2016 tekmar 518 _ Q - 06/16
Exterior
Wall
Thermostat
Front
Behind
Door
Thermostat
Base
518 _ Q
06/16
Zoning
Replaces: 03/13
Interior
Wall
5 feet
1.5 m
Wall

Publicité

loading

Sommaire des Matières pour Watts tekmar 518

  • Page 1 Quick Set-up Guide 518 _ Q Thermostat 518 06/16 Zoning Replaces: 03/13 Location Interior Wall Behind Door 5 feet 1.5 m Exterior Wall Remove Mounting Base Installation to Wall Thermostat Base Thermostat Front Wall © 2016 tekmar 518 _ Q - 06/16...
  • Page 2 Do not over No Power No Power No Power Rh W1 S1 Rh W1 S1 Rh W1 S1 Com Away tighten wiring screws. Hand tighten only. 24 V User Interface © 2016 tekmar 518 _ Q - 06/16 2 of 8...
  • Page 3 TYPE Device Type number. Hold the button to view the software version. ESCAPE Release the buttons to return to the home screen. © 2016 tekmar 518 _ Q - 06/16 3 of 8...
  • Page 4 Display Setting Installer settings. Press the and buttons together for 5 more seconds. AUXILIARY SENSOR Select the type of auxiliary sensor. Available when an auxiliary sensor is automatically detected. NONE = no auxiliary sensor, ROOM = Indoor Sensor, OUT = Outdoor Sensor, FLOR = Slab Sensor ROOM SENSOR Select if the built-in room temperature sensor is on or off. The built- in room sensor can only be disabled when an auxiliary room or slab sensor is connected.
  • Page 5 Guide d’installation rapide 518 _ Q Thermostat 518 06/16 Zonage Remplace: 03/13 Emplacement Mur intérieur Derrière porte 5 pi. 1,5 m Mur extérieur Retirez la base de montage Installation au mur Base de thermostat Façade du thermostat © 2016 tekmar 518 _ Q - 06/16 5 of 8...
  • Page 6 No Power No Power Rh W1 S1 Rh W1 S1 Rh W1 S1 Com Away serrer les vis sur les borniers. Serrez à la main 24 V seulement. Interface d’utilisateur © 2016 tekmar 518 _ Q - 06/16 6 of 8...
  • Page 7 TYPE Numéro de type de dispositif. Maintenez le bouton pour afficher la version du logiciel. RETOUR ÉCRAN D’ACCUEIL Relâchez les boutons pour revenir à l’écran d’accueil. © 2016 tekmar 518 _ Q - 06/16 7 of 8...
  • Page 8 Afficheur Paramètres Paramètres d’installateur. Appuyez sur les touches ensemble pour plus de 5 secondes. SONDE AUXILIAIRE Sélectionnez le type de sonde auxiliaire. Disponible quand une sonde auxiliaire est automatiquement détectée. NONE = pas de sonde auxiliaire, ROOM = sonde intérieure, FLOR = sonde de dalle SONDE D’AMBIANCE Choisir si la sonde intégrée de la température ambiante est active ou inactive.
