TVR 45HD Quick Start Guide

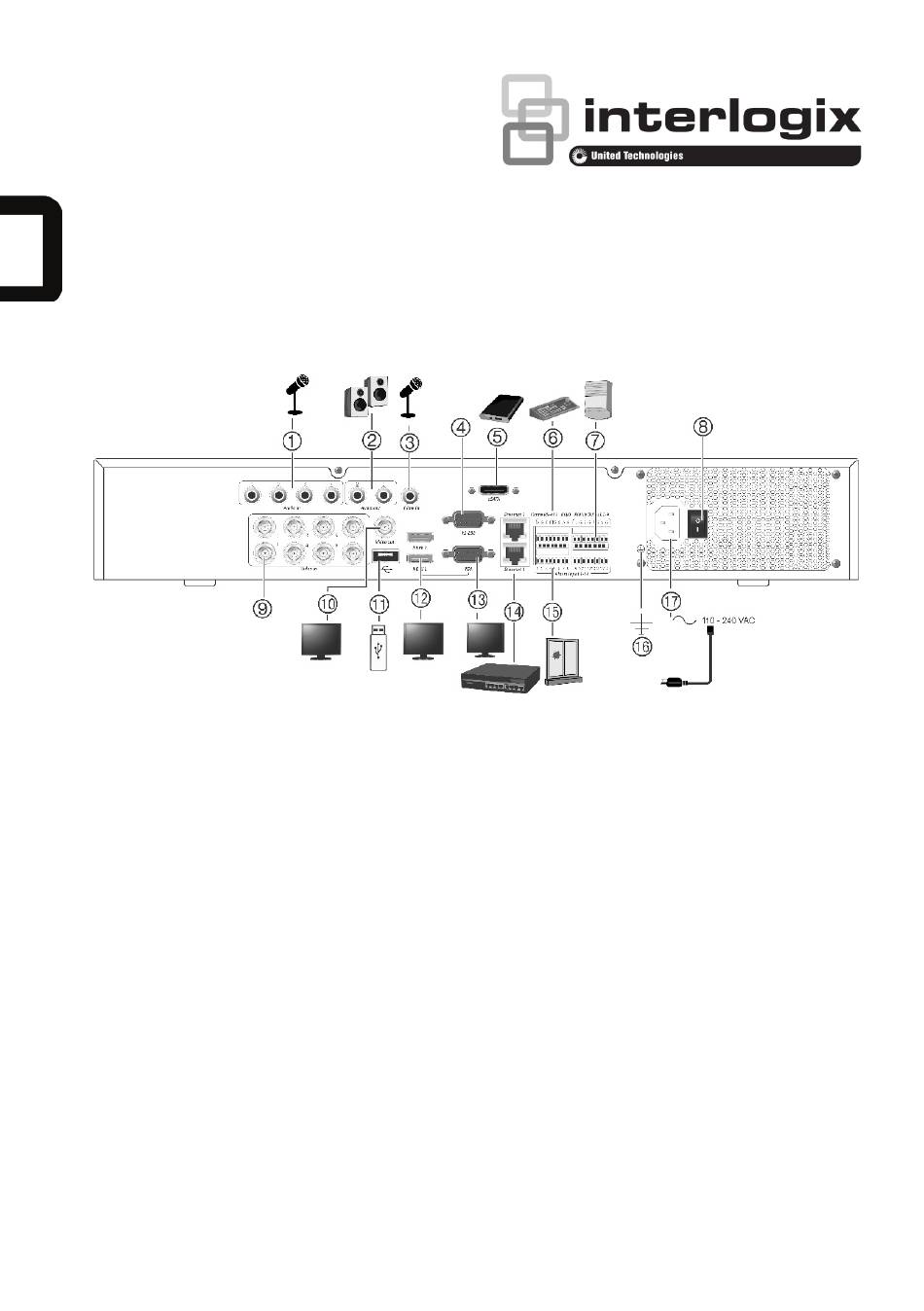

Figure 1: Back panel connections (8-channel model shown)
1. Connect four audio inputs to RCA connectors.
2. Connect to speakers for audio output.
3. Line In.
4. Connect to a RS-232 device.
5. Connect eSATA.
6. Connect to a RS-485 device such as a PTZ
camera or a keypad.
7. Connect up to four alarm outputs.
8. Power switch (on/off).
9. Connect up to 8 analog cameras to BNC-type
connectors (depends on the recorder model).
Default IP address: 192.168.1.82
P/N 1073290-EN • REV D • ISS 24MAY18
10. Connect to a BNC monitor (event monitor only).
11. Connect to an optional USB device such as a
mouse, CD/DVD burner or HDD.
12. Connect to a HDTV. The HDMI connection
supports both digital audio and video.
13. Connect to a VGA monitor.
14. Connect to a network.
15. Connect up to 16 alarm inputs.
16. Connect to ground.
17. Connect a power cord to the recorder (included).
