Assembly and Installation

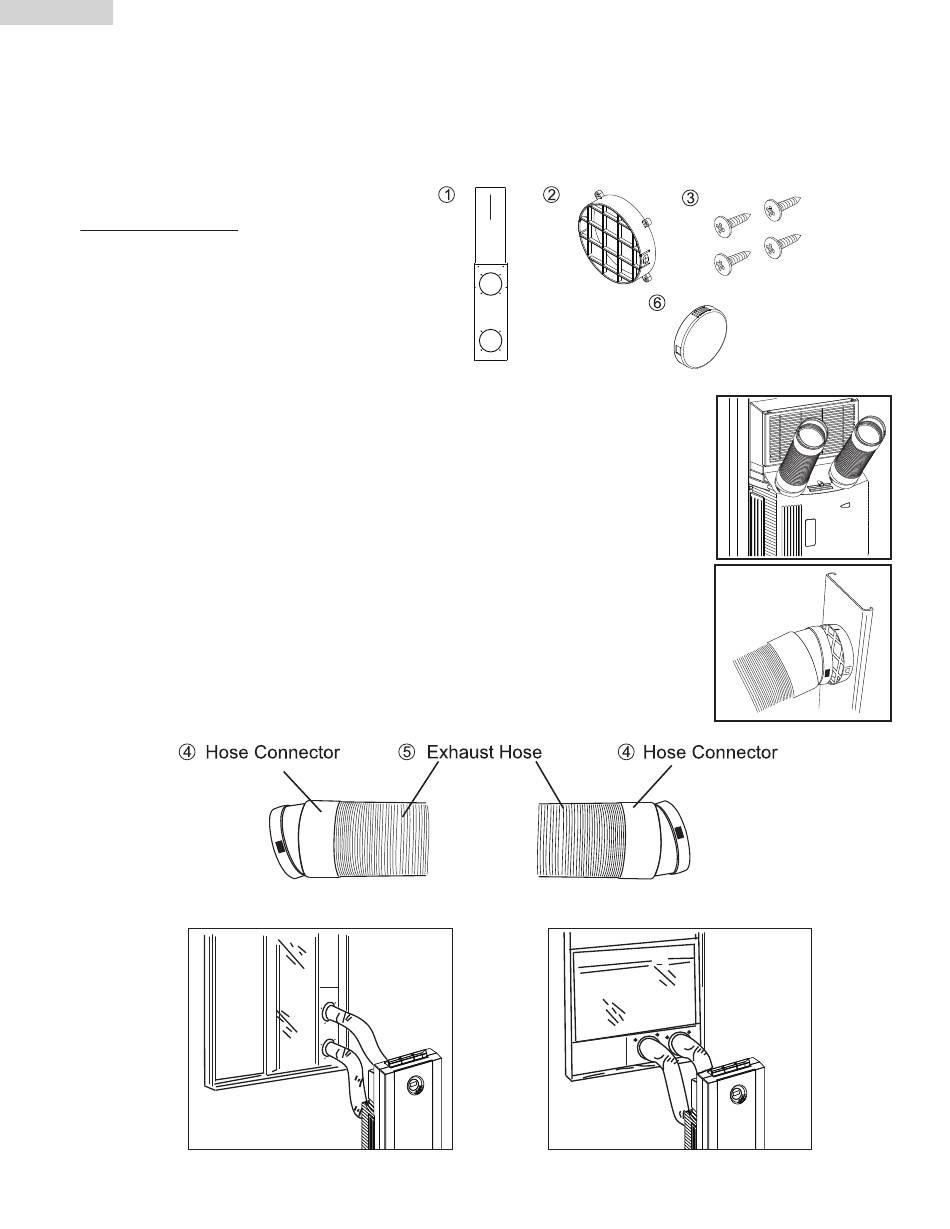

Accessories Include
1. Window / Patio door slider kit ... 1 set
2. Fixture ..................................... 1 piece
3. Screws ..................................... 1 piece
4. Heat exhaust hose connector ...... 1 piece
5. Heat exhaust hose .................... 1 piece
6. Cover ...................................... 1 piece
1. Adjust the plastic panel to the width or height of your window and
tighten the 2 screws that are attached to the panel.
2. Push the round window panel adapter through the rear of the plastic
panel. Line up the holes and tighten the adapter with 4 screws that are
included in the kit. (Tighten screws from the front.)
3. Install the window plastic panel into the window. If necessary use duct
tape to better secure the panel.
4. Connect exhaust hose to the unit by inserting the hose connector that is
attached to the hose into the exhaust.
5. Move the unit to the window, extend the hose and attach the other end
of the hose to the window. Align the tabs on the hose and window
panel adapters and fasten them together.
6. Plug into wall outlet to get ready for operation.
(6)
