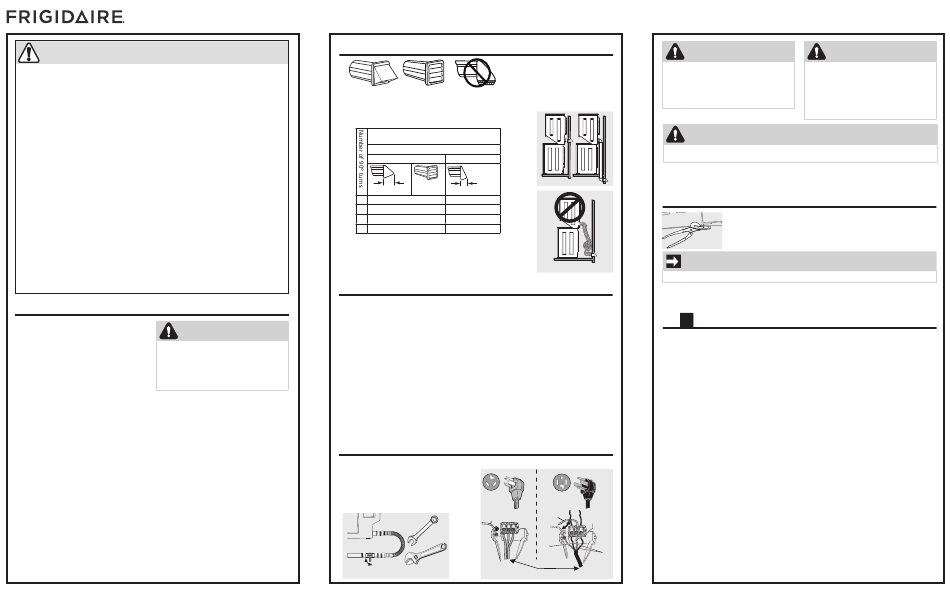

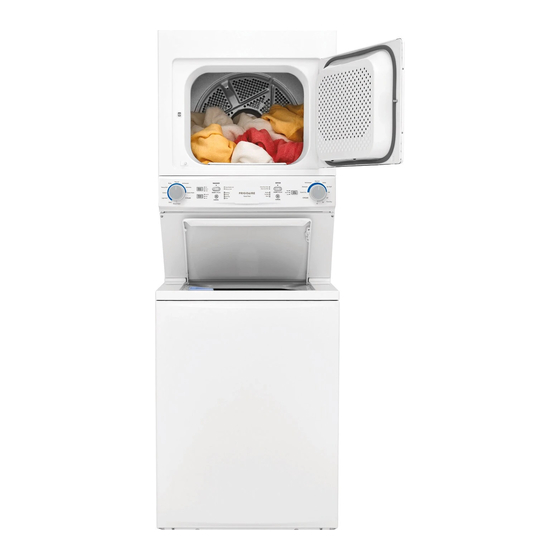

Frigidaire FLCG7522AW Guide Rapide

Installation
*Please refer to the Use & Care instruction booklet provided with this laundry center for further details.
WARNING - RISK OF FIRE
• Ensure the entire dryer exhaust system is clean and free of lint and debris prior to the
installation of your new laundry center. The entire exhaust system should be inspected and
cleaned a minimum of every 18 months with normal usage. Failure to comply with cleaning
your exhaust system will increase the RISK of FIRE.
• DO NOT install a clothes dryer with flexible plastic or flexible foil venting material. Flexible
venting materials are known to collapse, be easily crushed and trap lint. These conditions will
obstruct clothes dryer airflow and increase the risk of fire.
• DO NOT screen the exhaust ends of the vent system, or use any screws, rivets or other
fasteners that extend into the duct to assemble the exhaust system. NO screen or grate of
any mesh size is allowed to cover the outdoor exhaust opening.
• Install the laundry center according to the manufacturer's instructions and local codes.
• Laundry Center installation and service must be performed by a qualified installer, service
agency or the gas supplier.
• The electrical service to the dryer must conform with local codes and ordinances and the
latest edition of the National Electrical Code, ANSI/NFPA 70, or in Canada, the Canadian
Electrical Code CSA C22.1 part 1.
• The gas service to the dryer must conform with local codes and ordinances and the latest
edition of the National Fuel Gas Code ANSI Z223.1/NFPA 54, or in Canada, the Natural Gas
and Propane Installation Code, CSA B149.1. An individual manual shutoff valve must be
installed within 6 ft. (1.83 m) of the dryer in accordance with the National Fuel Gas Code,
ANSI Z223.1/NFPA 54.
• The laundry center is designed under ANSI Z21.5.1/CSA 7.1 or UL 2158 - CAN/CSA C22.2
No. 112 (latest editions) for HOME USE only. This laundry center is not recommended for
commercial applications such as restaurants, beauty salons, etc.
• Destroy the carton and plastic bags after the laundry center is unpacked. Children might use
them to play. Cartons covered with rugs, bedspreads, or plastic sheets can become airtight
chambers causing suffocation. Place all materials in a garbage container or make materials
inaccessible to children.
The instructions in this manual and all other literature included with this dryer are not meant to
cover every possible condition and situation that may occur. Good safe practice and caution MUST
be applied when installing, operating and maintaining any appliance.
1
Electrical requirements
Electric dryer
WARNING
CIRCUIT - Individual 30 amp. branch circuit
fused with 30 amp. time delay fuses or circuit
breakers. ELECTRICAL SHOCK HAZARD
Improper connection of the equipment
POWER SUPPLY - 3-wire or 4-wire, 240 volt,
grounding conductor can cause an electrical
single phase, 60 Hz, Alternating Current. The
shock that may result in serious injury or
power cord is NOT supplied with unit.
death. Check with a licensed electrician if you
OUTLET RECEPTACLE - NEMA 10-30R or are in doubt as to whether the appliance is
NEMA 14-30R receptacle to be located so
properly grounded.
the power supply cord is accessible when the
dryer is in the installed position.
1. The laundry center MUST be grounded. In
GROUNDING CONNECTION - See "Grounding the event of malfunction or breakdown,
requirements" in Use & Care instructions. grounding will reduce the risk of electrical
shock by a path of least resistance for
Gas dryer
electrical current.
CIRCUIT - Individual, properly polarized and
2. Since your laundry center is equipped with
grounded 15 amp. branch circuit fused with
a power supply cord having an equipment-
15 amp. time delay fuse or circuit breaker.
grounding conductor and a grounding
POWER SUPPLY - 2-wire, with ground, 120
plug, the plug MUST be plugged into
volt, single phase, 60 Hz, Alternating Current.
an appropriate, copper wired receptacle
that is properly installed and grounded
POWER SUPPLY CORD - The dryer is equipped
with a 120 volt 3-wire power cord. in accordance with all local codes and
ordinances or in the absence of local codes,
GROUNDING CONNECTION - See "Grounding
with the National Electrical Codes, ANSI/
requirements" in Use & Care instructions.
NFPA 70 (latest edition), or in Canada, the
Canadian electrical code C22.1 part 1. If in
doubt, call a licensed electrician.
DO NOT cut off or alter the grounding prong
on the power supply cord. In situations
where a two-slot receptacle is present,
it is the owner's responsibility to have a
licensed electrician replace it with a properly
grounded three prong grounding type
For detailed information, refer to
receptacle.
the Use & Care instruction provided
with this laundry center.
For support in the U.S. call 1-877-4ELECTROLUX (1-877-435-3287) or visit www.electroluxappliances.com. For support in Canada call 1-800-265-8352 or visit www.electroluxappliances.ca.
for Frigidaire Laundry Center
*
2
Connect or Construct Vent Exhaust
• Use only 4 inch rigid or
semi-rigid metal ducting
• Clean lint from duct system
• Use only metal foil tape to
connect ducts (no screws)
MAXIMUM LENGTH*
of 4" (10.2 cm) Rigid Metal Duct
VENT HOOD TYPE
(Preferred)
4" (10.2 cm)
0 56 ft. (17 m)
1
48 ft. (14.5 m)
2 40 ft. (12 m)
3 32 ft. (9.5 m)
DO NOT exceed 8 ft. (2.4m) total duct length if
installing semi-rigid venting.
DO NOT install flexible plastic or flexible foil ducting
material.
For detailed information, refer to the Use & Care
instruction provided with this laundry center.
3
Connect to Water Line and Drain
Connecting to the water line
1. Run some water from the hot and cold
faucets to flush the water lines and remove
particles that might clog the water valve
screens and to determine which faucet is
hot and which is cold supply.
2. Check to ensure that the inlet hoses have
the rubber washer firmly in place. Use only
new hoses.
3. Connect the HOT inlet hose to the HOT inlet
connection on the washer and the COLD
inlet hose to the COLD inlet connection
on the washer (cold on top). Tighten by
hand until snug. Then tighten each supply
connection another 2/3 turn with pliers.
DO NOT cross thread or over-tighten these
connections.
4. Connect the HOT inlet hose to the HOT
water supply and the COLD inlet hose to the
4
Connect to Gas or Electric
Gas Dryer
1. Apply approved thread sealant.
2. Wrench-tighten gas line.
3. Turn on gas.
4. Open gas valve and check for leaks with
soapy water.
Open
Close
Manual Shutoff
Exhaust system must
be vented outside with
approved vent hood.
• Use 4" (10.2 cm) clamp to NO screen or grate of any
connect dryer & exhaust system mesh size is allowed to
• Use 90° quick-turn elbow to vent cover the exhaust opening.
left or right from dryer
Correct
Correct
2.5" (6.35 cm)
louvered
42 ft. (13 m)
34 ft. (10.5 m)
26 ft. (8 m)
18 ft. (5.5 m)
Incorrect
Incorrect
COLD water supply. Tighten by hand until
snug. Then tighten each supply connection
another 2/3 turn with pliers. DO NOT bend,
kink, or pinch water inlet hoses.
5. Turn on the water and check for leaks.
Connecting to the drain
1. Form a "U" shape on the end of the drain
hose with the hose pointed toward the
drain.
2. Place the formed end in a laundry
tub or a standpipe and secure the drain
hose with the cable tie (provided in the
enclosure package) to the standpipe, inlet
hose, laundry tub, etc. so the hose does
not pull out from the force of the water.
For detailed information, refer to
Use & Care instruction provided with
this laundry center.
Electric Dryer
30 AMP 30 AMP
Move
Don't Move White Wire
White
White Wire
Wire
Green
Wire
Install
U.L.-Approved Strain Relief
Leave these instructions with the customer.
TO INSTALLER:
WARNING
ELECTRICAL SHOCK HAZARD
A U.L. approved strain relief must be
installed onto power cord. If the strain relief
is not attached, the cord can be pulled out of
the dryer and can be cut by any movement
of the cord, resulting in electrical shock.
WARNING
LP systems MUST use conversion kit installed by qualified technician. Improper gas installation
or LP conversion could result in injury or even death.
For detailed information, refer to the Use & Care instruction provided
with this laundry center.
5
Level and Connect
1. Use adjustable pliers to adjust the leveling legs so the laundry center is
level front-to-rear and side-to-side, and stable corner-to-corner
2. Connect power.
IMPORTANT
Please review "Troubleshooting" in your Use & Care instruction before calling for service.
For detailed information refer the Use & Care instruction provided with
this laundry center.
6

Installation Checklist
Shipping hardware
‰ Foam shipping restraint (inside wash tub)
removed and stored
‰ Foam shipping support (underneath
appliance) removed and stored
Leveling
‰ Laundry center is level, side-to-side and
front-to-back
‰ Cabinet is setting solid on all corners
Water supply
‰ Use only new hoses and verify rubber
sealing washers are installed
‰ HOT supply is connected to HOT inlet and
COLD supply is connected to COLD inlet
‰ HOT and COLD water supply turned on
‰ No leaks present at water supply
connections or appliance inlet connections
-recheck in 24 hours
Drain
‰ Stand pipe or wall drain height min. 33"
‰ Drain hose secured in place with cable tie
(shipped in drum)
Exhaust venting
‰ Free-flowing, clear of lint buildup
‰ 4 inch (102 mm) rigid or semi-rigid
ducting of minimal length and turns
‰ NO foil or plastic venting material
Black
or ‰ Approved vent hood exhausted to
Red
outdoors
Wire
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
WARNING
ELECTRICAL SHOCK HAZARD
DO NOT use an aluminum wired receptacle
with a copper wired power cord and plug
(or vice versa). A chemical reaction occurs
between copper and aluminum and can
cause electrical shorts. The proper wiring and
receptacle is a copper wired power cord with a
copper wired receptacle.
Gas supply (gas dryer)
‰ Manual shutoff valve present in supply
‰ All connections sealed with approved
sealer and wrench tight
‰ Conversion kit for LP system
‰ Gas supply turned on
‰ No leaks present at all connections -
check with soapy water, NEVER check
with flame
240V electric supply
(electric dryer)
‰ Approved NEMA 10-30R or 14-30R
service cord with all screws tight on
terminal block
‰ Approved strain relief installed
‰ Terminal access cover installed before
initial operation
Electrical power
‰ House power turned on
‰ Laundry Center plugged in
Final checks
‰ Installation Instructions and Use & Care
instruction read thoroughly
‰ Water enters drum when cycle starts with
lid lowered and dryer door latches and
drum tumbles when cycle starts
‰ Registration card sent in
A17468402 (2002)
