9. Transmitter Controls
1 Wheel for the steering
2 Throttle lever for forward and reverse driving
3 Battery compartment
4 Trim controller "ST.TRIM<RR>" for the steering function of the rear axle
5 Trim controller "ST.TRIM<FR>" for the steering function of the front axle
6 Slider "ST.REV." for reversing the steering function (steering servo reverse switch)
7 Red LED
8 "BIND/MODE" button
9 Four LEDs for display of the steering mode
10 Trim controller "TH.TRIM" for the drive function
11 Slider "TH.REV." for reversing the drive function (drive controller reverse switch)
12 Green LED
13 On/off switch
32
2
3

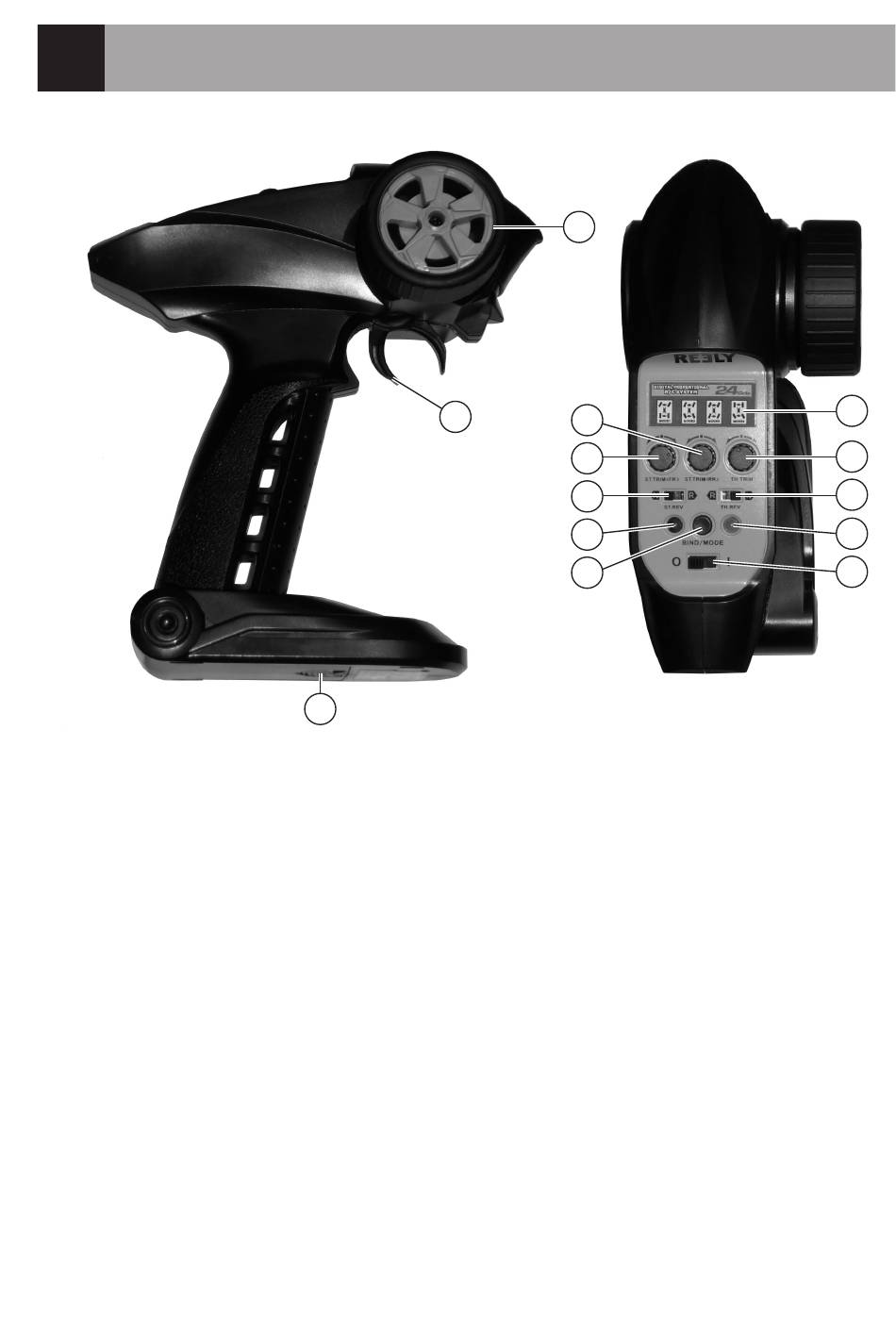

Figure 3
