INSTALLATION (10011488 | 10011489 | 10026366 |
10026367)
1. The distance between the cooking surface and the lowest edge of the cooker
hood must be at least 65 cm (see Fig. 1).
2. Once the height is defined, install the anchoring in the appropriate place. To
do this, you must first drill holes (you will need a drill, suitable drill bits, dowels
and screws) and then fix the anchorage to the wall with the screws. After the
anchoring is fixed, use the similar procedure to attach the internal clamp for
the fireplace facing (see Figure 2). Please pay attention to the correct distance
(please measure the distance), because the fireplace facing will be fixed to the
clamp later.

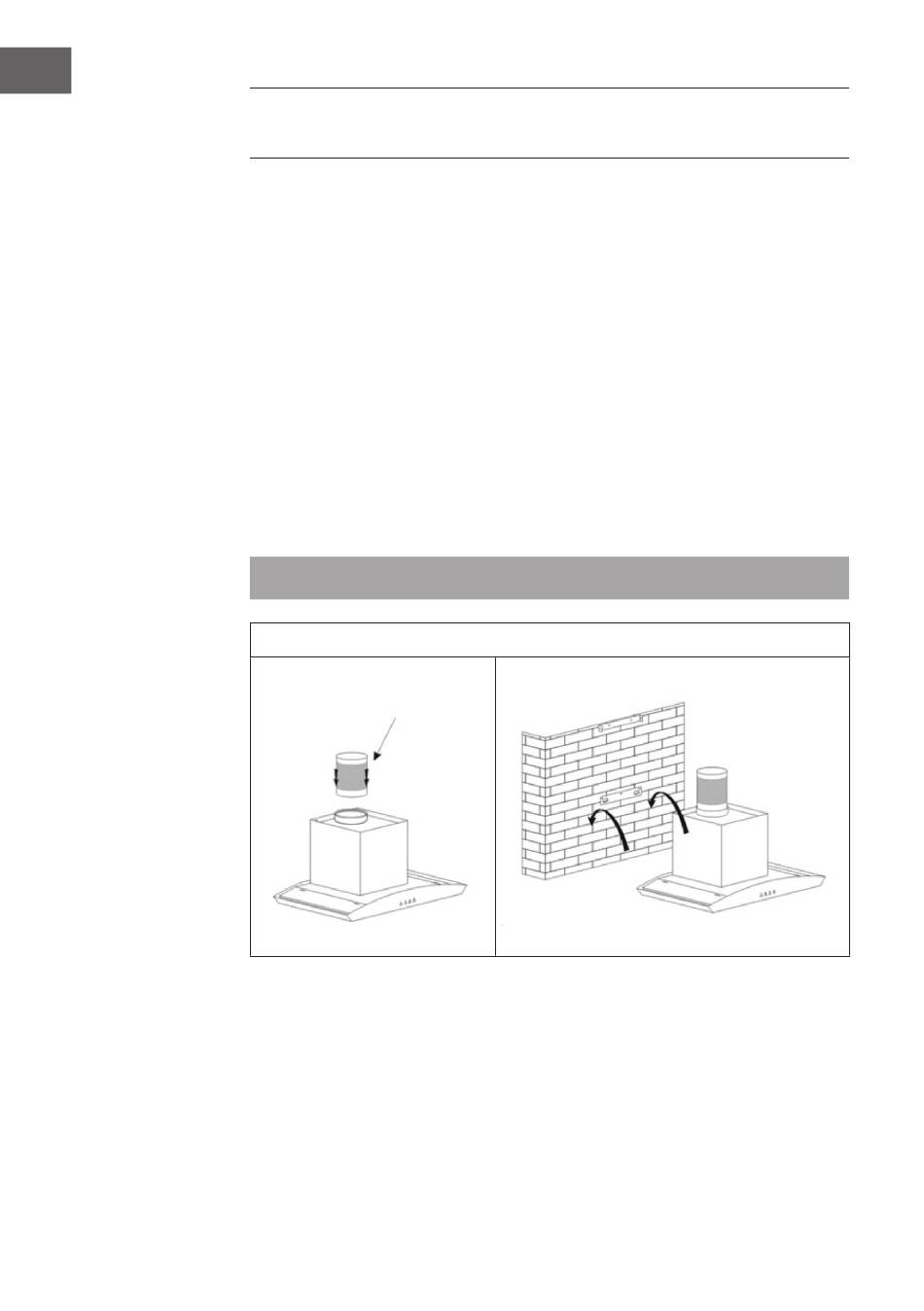

3. Connect the pipe and place the hood on the anchoring (see picture 6).
4. Insert the glass part correctly and fix them with the appropriate screws. Guide
the end of the pipe connection into the open. Please note that there must be
an opening necessary for this.
5. Set the correct height of the inner chimney facing so that the brackets match
and fix them. After that you can fix the hood with the safety screws (see
picture 7).
Note: Please note that the two safety caps are located on the back of the casing.
Extensible pipe
6
