Connecting The Transmitter To Digital Components - Sony MDR-RF5000K Mode D'emploi

Setting the input level
If the volume is low using the analogue input, set the ATT (attenuator) switch to "0 dB."
Setting
0 dB
–8 dB
Notes
• Be sure to lower the volume before setting the ATT switch.
• If audio input to the LINE IN jacks is distorted (sometimes, noise can be heard at the same
time), set the ATT switch to "–8 dB."

Connecting the transmitter to digital components

Use the sold separately optical digital connecting cable to connect the optical digital
output jack on a CD/DVD device, digital satellite/TV receiver, or other digital
component to the DIGITAL IN jack (black) of the transmitter.
Optical digital output of a connected AV component should be set to PCM. Read their
operating instructions of the connected device.
When connecting the transmitter to an AV amplifier, etc., connect the DIGITAL OUT
jack (Red) and external optical digital input jack using the optical digital connecting
cable (sold separately).

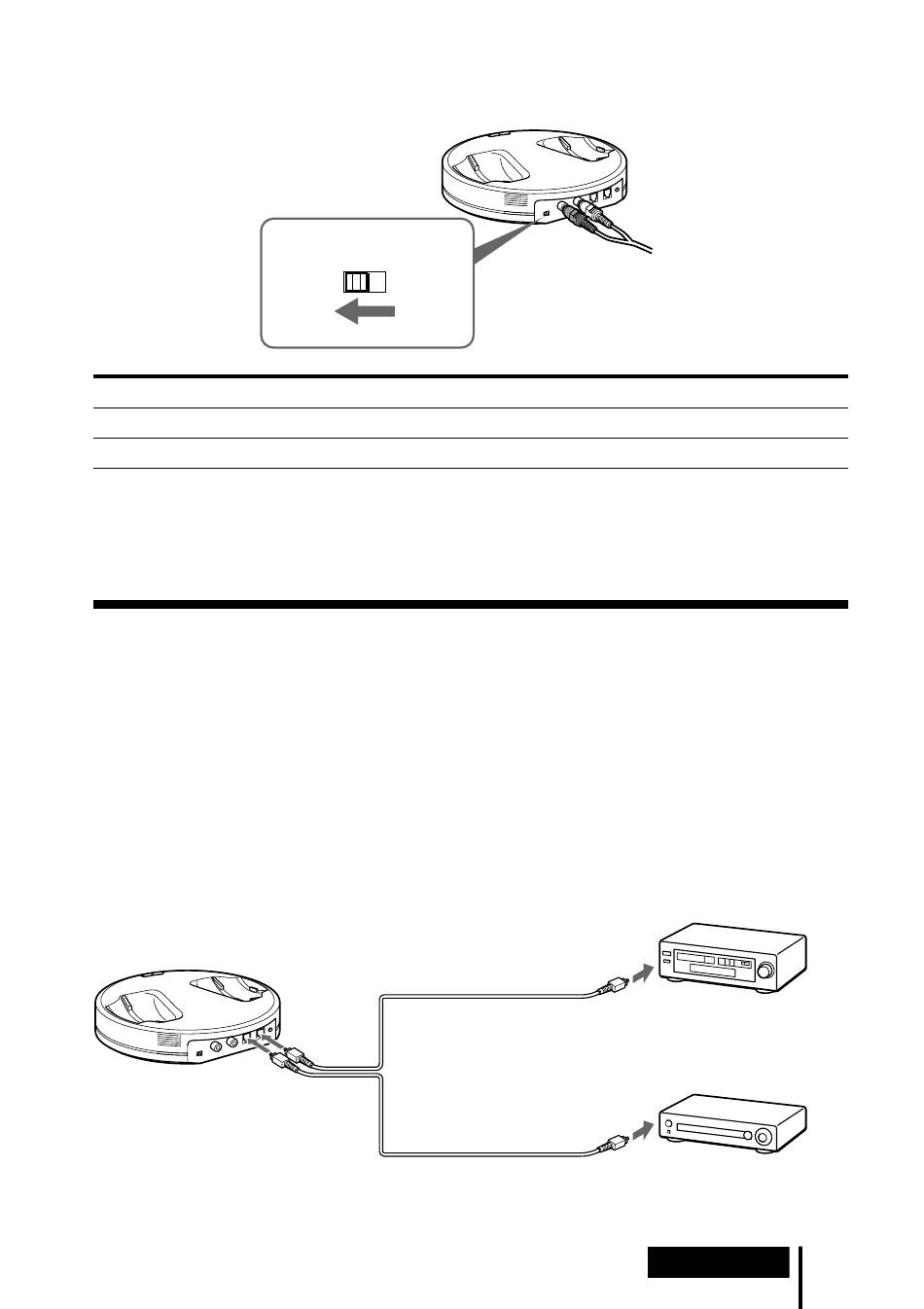

Transmitter
To DIGITAL IN
jack (Black)
ATT
0dB -8dB
Connected components
TV, portable components, and other components with a low output level
Other components (initial settings)
To DIGITAL
OUT jack
Optical digital connecting
(Red)
cable (sold separately)
Optical digital connecting cable (sold separately)
Match the orientation of the plug with the jack, and
then insert until the plug fits into place.
Equipment with optical
digital input terminal such
as an AV amplifier
To optical digital
input jack
DVD device, digital satellite/TV
receiver, or other digital
component having an optical
digital output jack
To optical digital
output jack
Connection
(Continued)
