ShelterLogic RoundTop Garage 71332 Instructions De Montage page 6

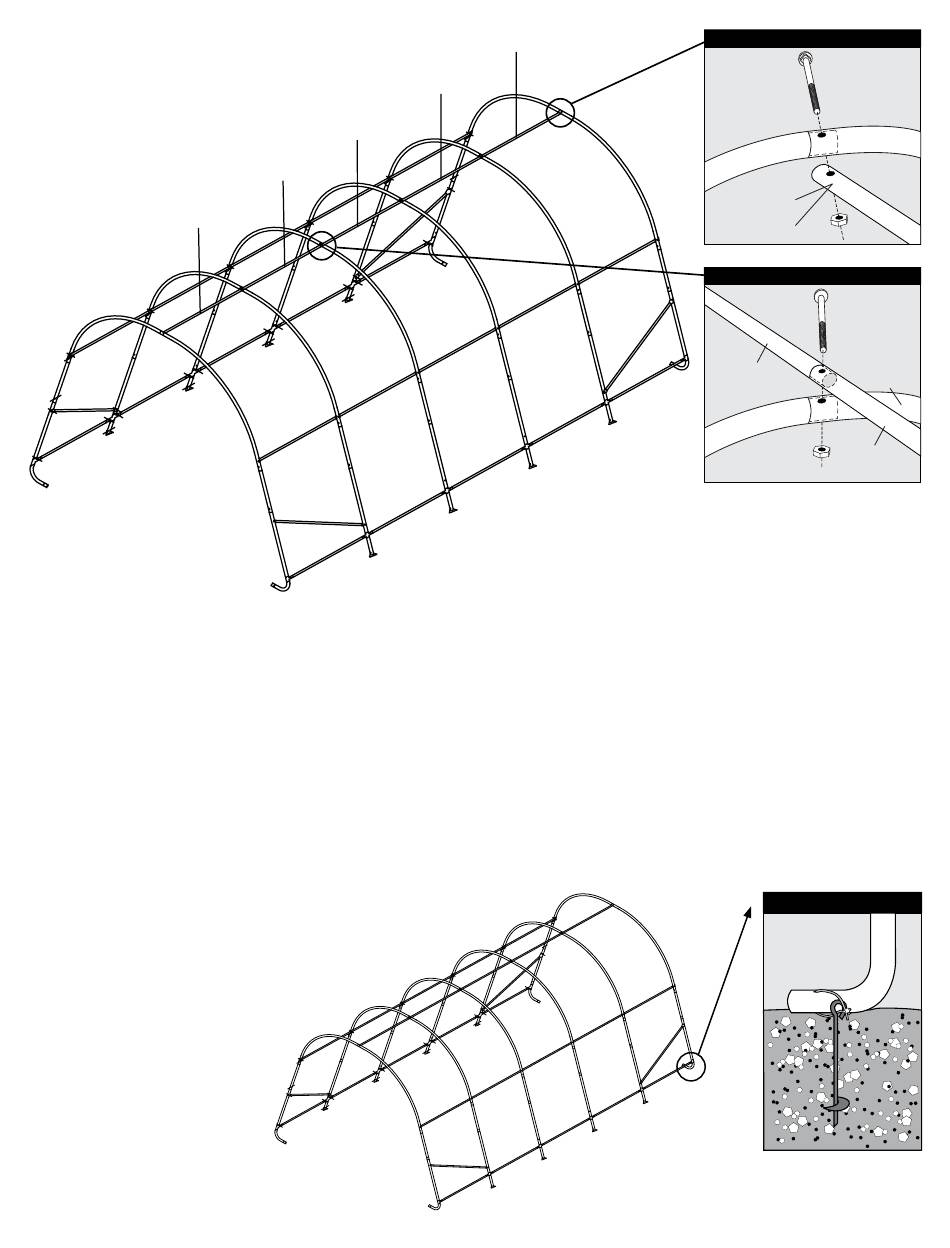

5. ATTAcH Top cRoSS RAIlS
Install the top cross rail over the middle ribs
and underneath end ribs.
020230
6. pRopeRlY AncHoR FRAMe
A. Anchors must be placed inside shelter at the corners of the shelter. Insert a ¾" pipe or steel rod,
through the eyelet of the auger and screw the anchor into the ground until the eyelet is sticking out of the
ground by 1-2" so it can be anchored to the legs.
If ground is too hard, dig a hole with a shovel or post hole tool. Optional: Fill with cement.
B. Wrap cable provided through the eyelet of the anchor and around the frame as indicated in Detail H. Secure
the cable with the clamps provided.
NOTE:
15" Augers are for temporary
use only! We recommend 30"
Augers be used, 4 minimum
for use in a stronger, more
secure installation.
WARNING:
Serious injury to persons
or property could result if
cover is installed and shelter
is not anchored and is left
unattended. Shelter must be
securely anchored.
020230
020230
020230
020231
Page 6
Top Cross Rail UNDER End Ribs
10210
10225
10224
020230
Use
at Front End Rib
020231
Use
01010
at Back End Rib
Top Cross Rail OvER Middle Ribs
802630
020230
10225
10224
020230
01010
End Rib Anchors
05-71332_71342-0A
