S5 – Installing the machine

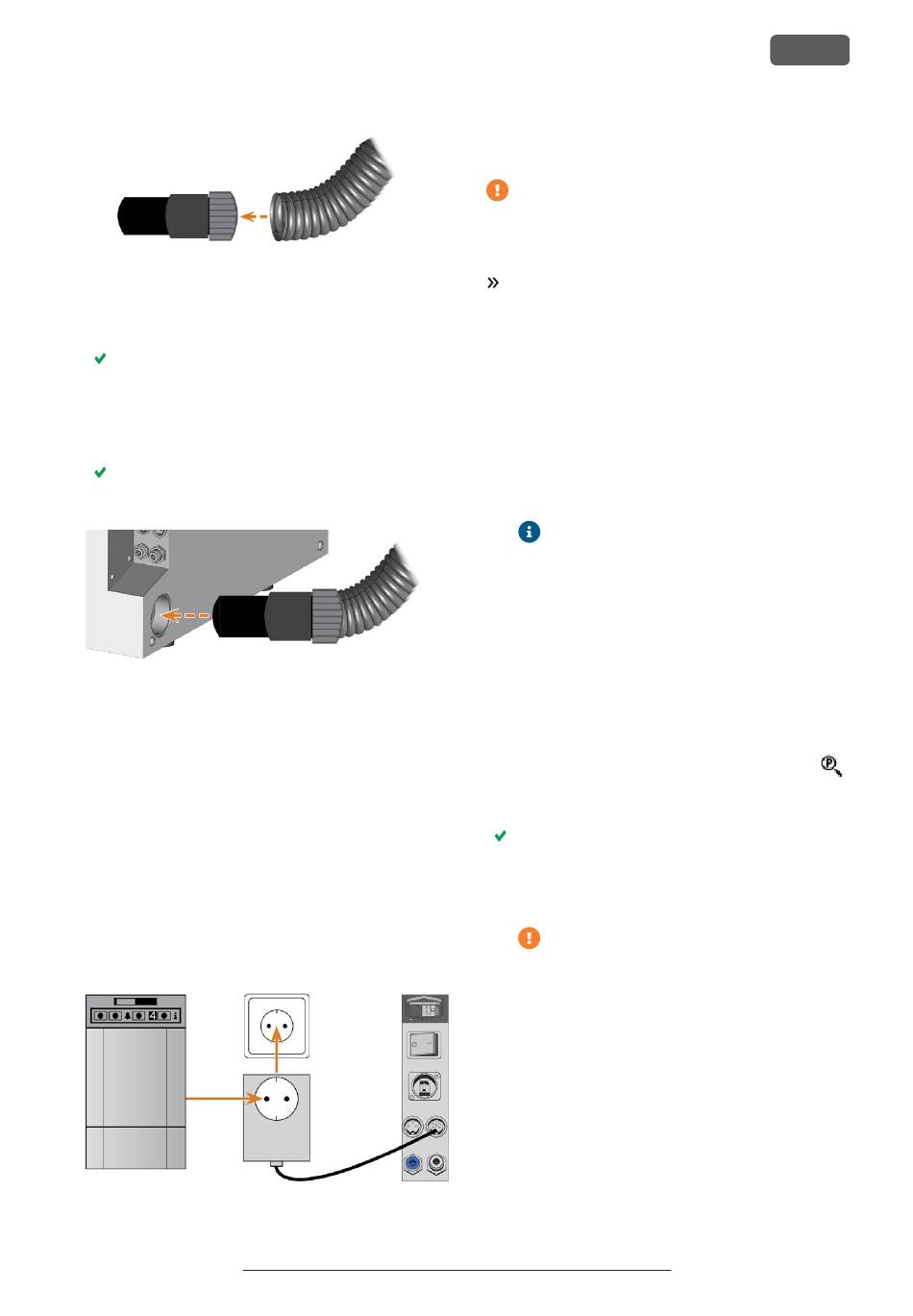

F . 16 I
IG NSERTING THE SUCTION HOSE INTO THE HOSE CONNECTION
3. Turn the thread of the hose connection clockwise
as far as you can.
The suction hose is firmly attached to the hose con-
nection.
4. Insert the hose connection into the opening for the
air extraction system of the machine. Ensure it is
firmly connected.
The installation of the suction hose with the
optional hose connection is complete.
F . 17 I
IG NSERTING THE HOSE CONNECTION INTO THE OPENING FOR THE AIR
EXTRACTION SYSTEM
5.7.4 Installing the sw itching unit
If you want the machine to automatically switch the
suction unit on and off, but a data cable is not avail-
able, you can use the optional switching unit. The
switching unit is not available worldwide.
1. Connect the power cable of the suction device to
the switching unit.
2. Connect the control cable of the switching unit to
the suction device data port at the connection
panel of the machine.
3. Plug the switching unit into a power socket.
F . 18 C
IG ONNECTING THE SWITCHING UNIT TO THE SUCTION DEVICE AND
THE MACHINE

5.8 Connecting the CAM computer

1. Switch on the machine at the main power switch.
2. Close the working chamber door.
3. Start the CAM computer.
4. Use the provided USB cable to connect a USB port
5. Install the newest version of DENTALCAM &
6. To determine the USB port number and con-
7. If the working chamber door was open during the
Original Operating Instructions: S5
Version: 12/15/2021
The transport lock must not be installed when
you connect the CAM computer to the
machine.
Removing the transport lock – on

page 20
If you want to control multiple machines with 1 CAM
computer, use our multi-machine control feature.
See the documentation for the manufacturing soft-
ware.
of the CAM computer to the USB port at the con-
nection panel of the machine.
To avoid connection errors, we highly
recommend that you use the USB or
Ethernet cable which was provided with the
machine. Original spare parts are available
from customer service.
DENTALCNC that is released for the machine. If you
want to control multiple machines with 1 CAM com-
puter, use our multi-machine feature. See the doc-
umentation for the manufacturing software.
nect to the machine, select the depicted
icon in the Application settings view in
DENTALCNC.
DENTALCNC will try to establish a connection to
the machine. If this is successful, the application will
display the port number beside the icon. The
machine references.
The machine will not reference if the
working chamber door is open.
previous step, close it. If the machine does not ref-
erence as a result, quit DENTALCNC and restart the
application.
EN 25
