D
WALT Industrial Tool Co., 701 East Joppa Road, Baltimore, MD 21286
e
(July13) Part No. 79002844 Copyright © 2013 D
IF YOU HAVE ANY QUESTIONS OR COMMENTS ABOUT THIS OR ANY D
US TOLL FREE AT: 1-800-4-D
Walt (1-800-433-9258).
e
Safety
WARNING: To reduce the risk of injury, read the safety manual provided with your product
or access it online at www.DeWALT.com.
Use of controls or adjustments or performance of procedures other than those specified
herein may result in hazardous radiation exposure
WarnIng labels
For your convenience and safety, the following label is on your laser.
CAUTION: LASER RADIATION - DO NOT STARE INTO BEAM. CLASS 2 LASER
PRODUCT.
Laser Information
The DW0811 laser level is a class 2 laser product and complies with 21 CFR 1040.10 and
1040.11 except for deviations pursuant to laser notice No. 50, dated June 24, 2007.

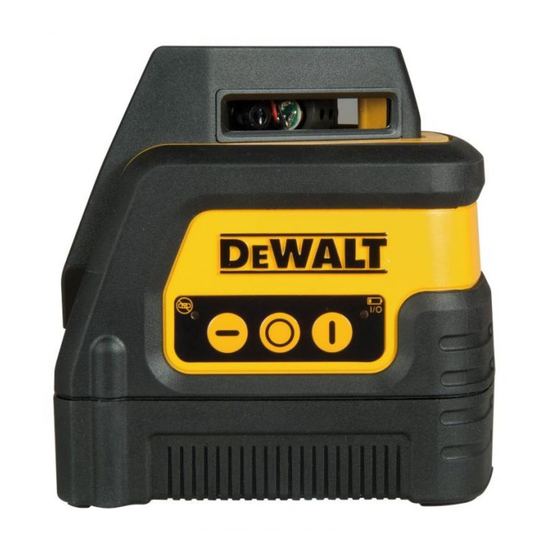

Product Overview
The DW0811 laser level is a self-leveling laser tool that can be used for horizontal (level) and vertical
(plumb) alignment and square alignment. This tool comes fully assembled and has been designed
with features that allow for quick and easy set-up. Please read and understand all instructions
within this instruction manual in addition to the Safety Manual prior to use.
Page 1
Specifications
Light Source
Laser Wavelength
Laser Power
Working Range
Accuracy* (Vertical)
Accuracy* (Level)
Indicators
Power Source
Operating Temperature
Storage Temperature
Environmental
Keypad, Modes and LED.
Power switch.
The Power ON/OFF switch is located on the rear of the tool as shown in figure 1. When the
switch (C) is in the OFF/LOCKED position, the unit will remain off and the pendulum will be locked
When the on/off switch (C) is in the ON/UNLOCKED position, the unit will be powered ON and the
pendulum will be released from the locked position and self level.
Keypad.
The keypad located on the top of the tool provides activation keys for selection of laser dots and
/ or line function.
Low Battery Indicator.
The DW0811 is equipped with a low battery indicator on the keypad as shown in Figure 2. The
indicator light is located on the keypad. When the light flashes, the batteries are low and need to be
replaced. The laser may continue to operate for a short time while the batteries continue to drain.
After fresh batteries are installed and the laser is turned on again, the indicator light will remian
green.
Out of Tilt Range Indicator
The DW0811 is equipped with an out of tilt indicator on the keypad as shown in Figure 2. When
the tilt range (> 4° tilt) has been exceeded the LED will will turn on and the laser beam will flash.
The flashing beam indicates the tilt range has been exceeded and the tool IS NOT LEVEL (OR
PLUMB) AND SHOULD NOT BE USED FOR DETERMINING OR MARKING LEVEL (OR PLUMB).
Try repositioning the laser on a more level surface.
Batteries & Power
Your laser tool requires 3 x AA batteries. (E)
Use only new, high-quality batteries for best results.
• Ensure batteries are in good working condition. If the low battery indicator light is flashing, the
WALT
e
batteries need replacement.
• To extend battery life, turn laser off when not working with or marking the beam.
WALT TOOL, CALL
e
Set Up
levelIng the laser
This tool is self-leveling. It is calibrated at the factory to find plumb as long as it is positioned on flat
surface within 4° of level. As long as the tool is properly calibrated, no manual adjustments must
be made.
To ensure the accuracy of your work, check to make sure your laser is calibrated often. See Field
Calibration Check.
• Before attempting to use the laser, make sure it is positioned securely, on a smooth, flat
surface.
• Always mark the center of the dot or pattern created by the laser.
• Extreme temperature changes may cause movement of internal parts that can affect accuracy.
Check your accuracy often while working. See Field Calibration Check.
• If the laser has been dropped, check to make sure your laser is calibrated. See Field Calibration
Check.
OPEratIOn
turning the Laser On and Off (Fig. 6)
The DW0811 is equipped with a locking pendulum mechanism. This feature is only activated when
the laser is switched off.
Using the Laser
The beams are level or plumb as long as the calibration has been checked (see Field Calibration
Check) and the laser beam is not flashing (see Out of Tilt Range Indicator).
The tool can be used to transfer points using any combination of the five beams and/or horizontal
line.
usIng the laser WIth accessorIes
The laser is equipped with both 1/4" x 20 and 5/8" x11 female threads on the bottom of the unit.
These threads may be used to accommodate current or future D
D
WALT accessories specified for use with this product. Follow the directions included with the
e
accessory.
WARNING: Since accessories, other than those offered by D
this product, use of such accessories with this tool could be hazardous. To reduce the risk of injury,
only D
Recommended accessories for use with your tool are available at extra cost from your local dealer or
authorized service center. If you need assistance in locating any accessory, please contact D
Industrial Tool Co., 701 East Joppa Road, Baltimore, MD 21286, call 1-800-4-D
9258) or visit our website: www.DeWALT.com.
Field Calibration Check
Levelling Accuracy
(See Figure 1)
Calibration check should be performed using a distance no shorter than the distance of the
applications for which the tool will be used.
sPecIFIcatIons
Semiconductor laser diode
630–680 nm visible
<1.0 mW (each beam) CLASS 1 LASER PRODUCT
±100' (30 m) with detector
± 5/32" @ 30' (±4 mm @ 10 m)
± 5/32" @ 30' (±4 mm @ 10 m)
Flashing Indicator: battery low
Flashing Laser: tilt range exceeded
3 AA size batteries (4.5V DC)
20 °F to 120 °F (-10 °C to 50 °C)
-5 °F to 140 °F (-20 °C to 60 °C)
IP54
With the laser off, place it on a stable, flat surface. Turn the laser on by sliding the on/off
switch (A) to the ON/UNLOCKED position.
Activate or deactivate the desired function using the keypad (B) located on the side of the
tool. It can project 360° horizontal line (C) and a vertical line (D)
To turn the laser off, slide the the on/off switch (A) to the locked position.
WAlt recommended accessories should be used with this product.
e
WALT accessories. Only use
e
WAlt, have not been tested with
e
WALT
e
WALT (1-800-433-
e
