Connection Diagram; Iso Connector - Caliber RDN 575BT Guide De Mise En Marche Rapide

RDN 575BT
Steeringwheel
control
(3.5mm jack)
Camera IN
(yellow RCA)
Video OUT
(yellow RCA)
Sub OUT
(green RCA)
Video IN
(yellow RCA)
Audio IN
Left (white RCA)
Audio IN
Right (red RCA)
Audio OUT
F-left (white RCA)
Audio OUT
F-right (red RCA)
Audio OUT
R-left (white RCA)
Audio OUT
R-right (red RCA)
rcA cOnnectIOnS:
Yellow row:
AV in: Video input
Camera back: Camera input
Video out: Video output
White row:
AUX in (L): Audio input - left channel
RCA out (R L): Audio output - rear/left
RCA out (F L): Audio output - front/left
red row:
AUX in (R): Audio input - right channel
RCA out (R R): Audio output - rear/right
RCA out (F R): Audio output - front/right

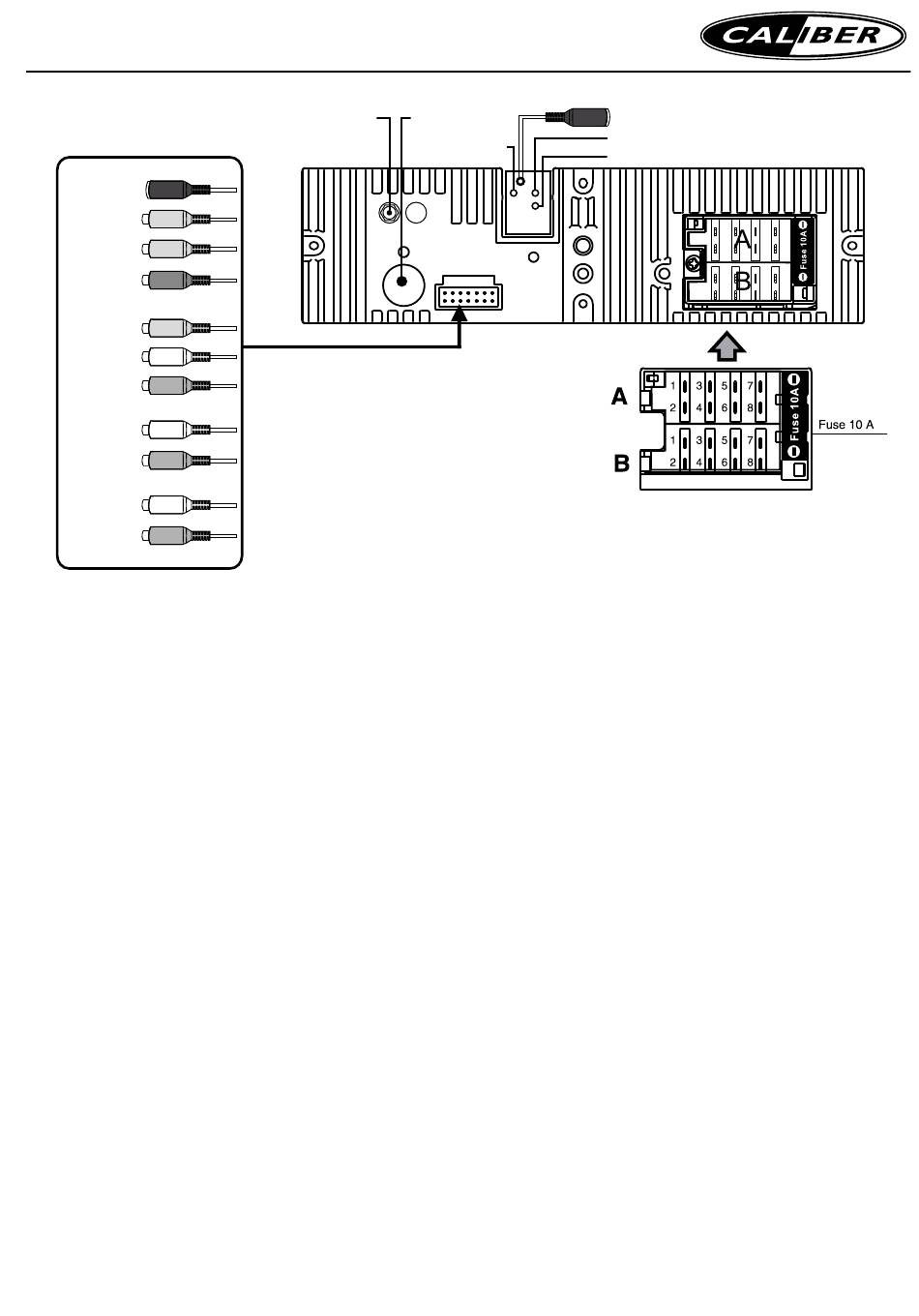

connEction diAgrAm

GPS Antenna IN Radio Antenna IN
(DIN size)
+12V amp power
(blue/white)

ISO cOnnectOr:

A1. Rear right speaker(+) / Purple
A2. Rear right speaker(-) / Purple-Black
A3. Front right speaker(+) / Grey
A4. Front right speaker(-) / Grey-Black
A5. Front left speaker(+) / White
A6. Front left speaker(-) / White-Black
A7. Rear left speaker(+) / Green
A8. Rear left speaker(-) / Green-Black
B1. -
(NC)
B2. -
(NC)
B3. -
(NC)
B4. Battery 12V (+) / Yellow
B5. Antenna power / Blue-White
B6. -
(NC)
B7. ACC+ / Red
B8. Ground / Black
eXtrA:
Seperate wire +12V amp power / Blue-White
Microphone IN
(3.5mm jack)
Parking brake
(green)
Reverse
(purple/white)
