Installation and Operating Instructions
EN
CHAPTER 4
ELECTRICAL
CONNECTION
m
DANGER
m
ATTENTION
Fig.5
E
smoke-
detection
-
24V DC
+
+
evaluation
unit
853
84
001 SS-110
7 17.09.19
Duct smoke detector – RMK
4.0 Electrical connection
m Before any maintenance or installation work or before opening the terminal
compartment, the unit must be fully isolated from the power supply and secured
against unintended restart!
The electrical connections and electrical commissioning may only be carried
out by qualified electricians according to the information in the
diagram.
The relevant national standards, safety regulations and instructions (e.g. DIN EN
VDE 0100) as well as the technical connection conditions of the energy supply
company must be observed!
The connection cable is fed through the included cable gland and professionally connec-
ted. The optical smoke detector is then screwed into the ventilation duct base. The inlet
pipe with flow adapter is also used.
As a result, a functional test must be carried out using test gas (aerosol)!

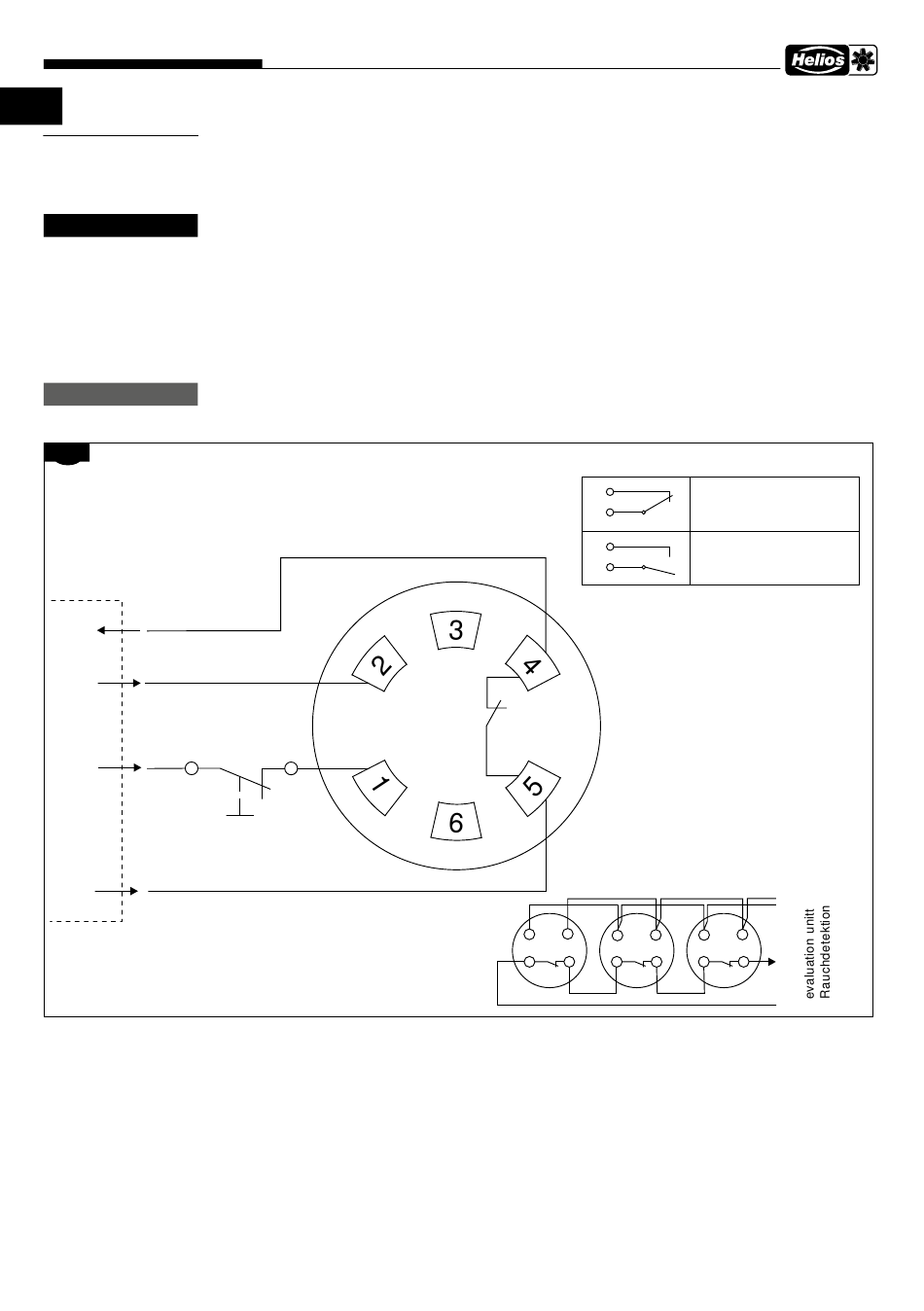

– Wiring diagram
Reset
RMK
Ref.no 4982
.
max.
30V DC
1A
1 2
5
4
4
following wiring
Functional position of the relay contact
Operating condition
4
- slightly soiled
5
- heavily soiled
4
- without tension
- Fault
5
- alarm
max. number of detectors see
instructions for the evaluation unit
If there are several RMKs, wire the relay
contacts so that the line is interrupted when
one RMK is removed (all contacts in series).
1 2
1 2
4
4
5
5
-
+
+
