INSTALLING A CUTTING BLADE.
(Ø20mm Ø22.2mm and Ø25.4mm bore blades)
WARNING: Always disconnect the machine from the power
supply before attempting to install or remove a blade.
• Ensure that the machines arbor and the blade flanges are
clean and free from any dust or debris.
• Ensure that the direction of rotation marked on the blade
matches the direction of rotation marked on the machines
guard.

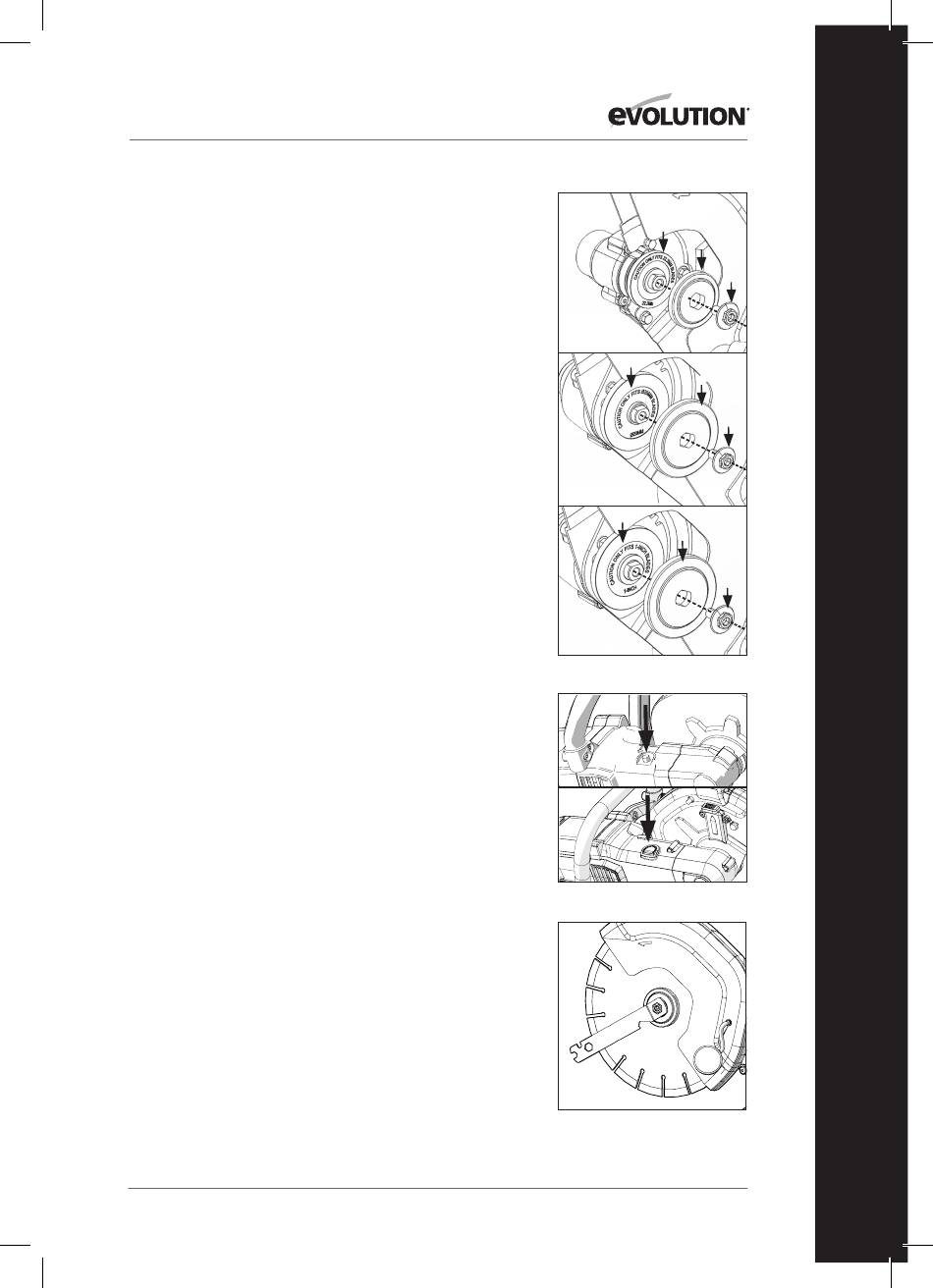

• Install blade flange (a) on the inner side of the blade. (Fig. 1)
• Install the blade with reference to the direction of rotation
arrows.
• Install the outer blade flange (b) and insert the arbor bolt
(c) into the machines arbor, for your appropriate machine.
(Fig. 1)
All Machines:
• Press the arbor lock to lock the machines arbor. (Fig. 2)
• Tighten the arbor bolt using the supplied multi-tool. (Fig. 3)
• Release the arbor lock.
• Carefully rotate the blade by hand and check that it is
secure, correctly positioned on the blade flanges and that
it rotates freely.
REMOVING A CUTTING BLADE
(All Evolution Machines)
• Press the arbor lock to lock the machines arbor.
• Loosen and remove the arbor bolt using the supplied
multi-tool.
• Withdraw the outer washer and blade flange.
• Remove the blade.
• If necessary remove the inner blade flange for inspection
and/or cleaning.
R230/255
UK/EU/USA/AUS
Ø22.2MM/ Ø7/8"
R300
UK/EU/AUS
Ø22.2/20MM
a
R300
USA
Ø1"
FIG. 1
R300/300+
FIG. 2
FIG. 3
15
a
b
c
a
b
c
b
c
R230/255
