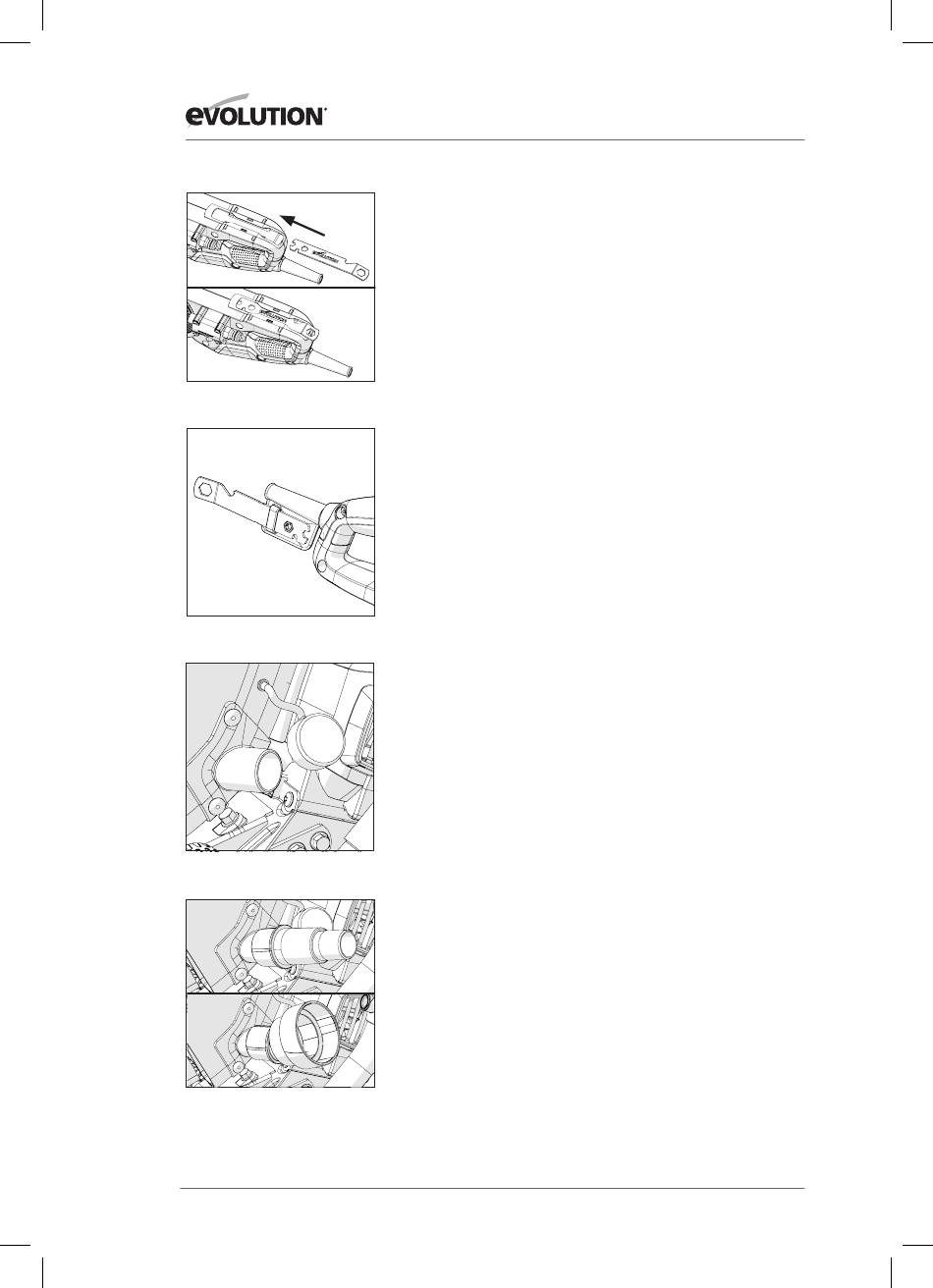

ON BOARD TOOL STORAGE.
All Evolution machines are provided with on-board storage for
the supplied multi-tool.
R300 DCT+ and R300 DCT
Storage provision is located under the machines handle.
(Fig. 11)
R225 DCT and R230 DCT
Storage is provided by the sleeve incorporated into the mains
cable reinforcement grommet. (Fig.12)
CONNECTING A DUST EXTRACTION MACHINE.
(All Evolution machines)
WARNING: Dust can be very dangerous. We strongly
recommend that a suitable dust extraction machine (not
supplied) is used with these machines to keep the workplace
as clean and safe as possible.
The connection hose of the dust extraction machine should be
attached to the dust extraction port of the Blade Guard.
• Remove the rubber cap from the dust extraction port
(Fig. 13) and safely store it for future reinstallation.
• Push the connection hose from the extraction machine
onto the extraction port using an appropriate adaptor.
(Fig. 14)
• Follow the instructions supplied with the dust extraction
machine.
• Ensure that the hose and power cable of an attached
dust extraction machine do not pose a trip or any other
form of hazard.
• When the dust extraction machine is no longer required,
remove it from the Concrete Cutting Saw and replace
the rubber cap to the dust extraction port.
NOTE: When using dust extractors with Evolution Disc Cutters
ensure these are rated as Class M or Class H when cutting
concrete.
