EN - Original instructions

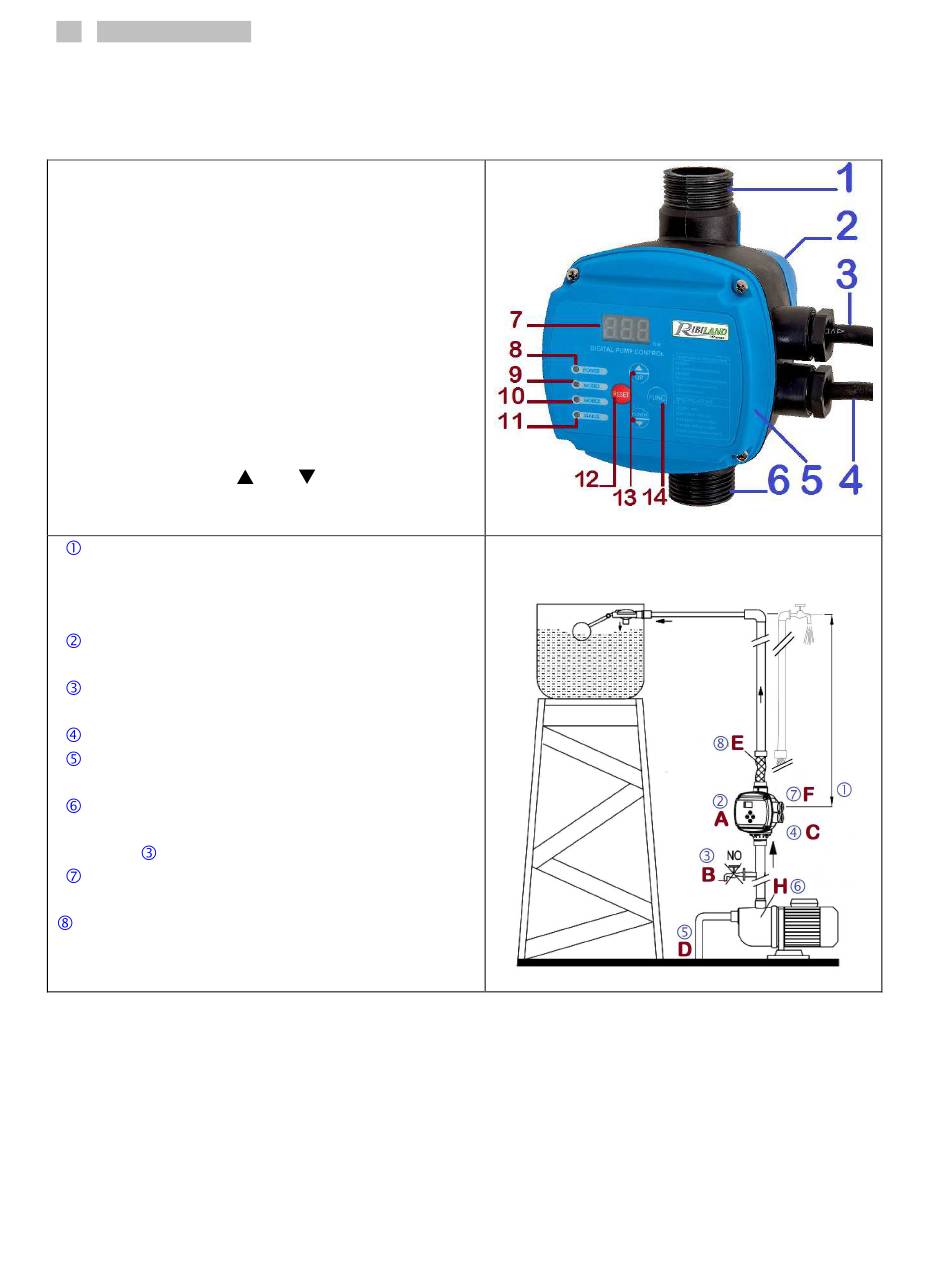

I. Parts List
II. Characteristics
I. PARTS LIST
1. Connecting outlet
2. Top cover
3. Connection to power source line (with plug
2P+E)
4. Connection to pump (naked wires)
5. Regulator main body
6. Connecting inlet
7. LED display
8. Power ON indicator
9. Mode 1 indicator
10. Mode 2 indicator
11. STATUS indicator
12. Reset button
13. Selection arrows ( : up;
14. MODE button
The controller can be installed directly on the
water pump or on the pipeline.
The farthest drawing point (e.g. tap) shall not
exceed 45m.
The unit (A) is equipped with a check valve to
prevent the pipeline from losing pressure.
Do NOT install any taps (B) between the pump
and the unit.
The unit restarting pressure range is 0.5-6.0 bar.
Before starting the unit, check the suction line
(D) and ensure that pump is primed.
The unit can be installed directly on the pump,
or between the pump and the first tap (except
situation
).
It is imperative to install the unit with the
arrows (F) on the upward position.
It is advisable to connect the unit outlet to the
system by means of flexible hose (E).
II. CHARACTERISTICS
III. Safety instructions
IV. Getting Started
: down)
SEE TABLE 1
V. Operation
VI. Maintenance and Storage
Fig.1
INSTALLATION EXAMPLES
with floating switch and with tap
Fig.2
