Commande et paramétrage

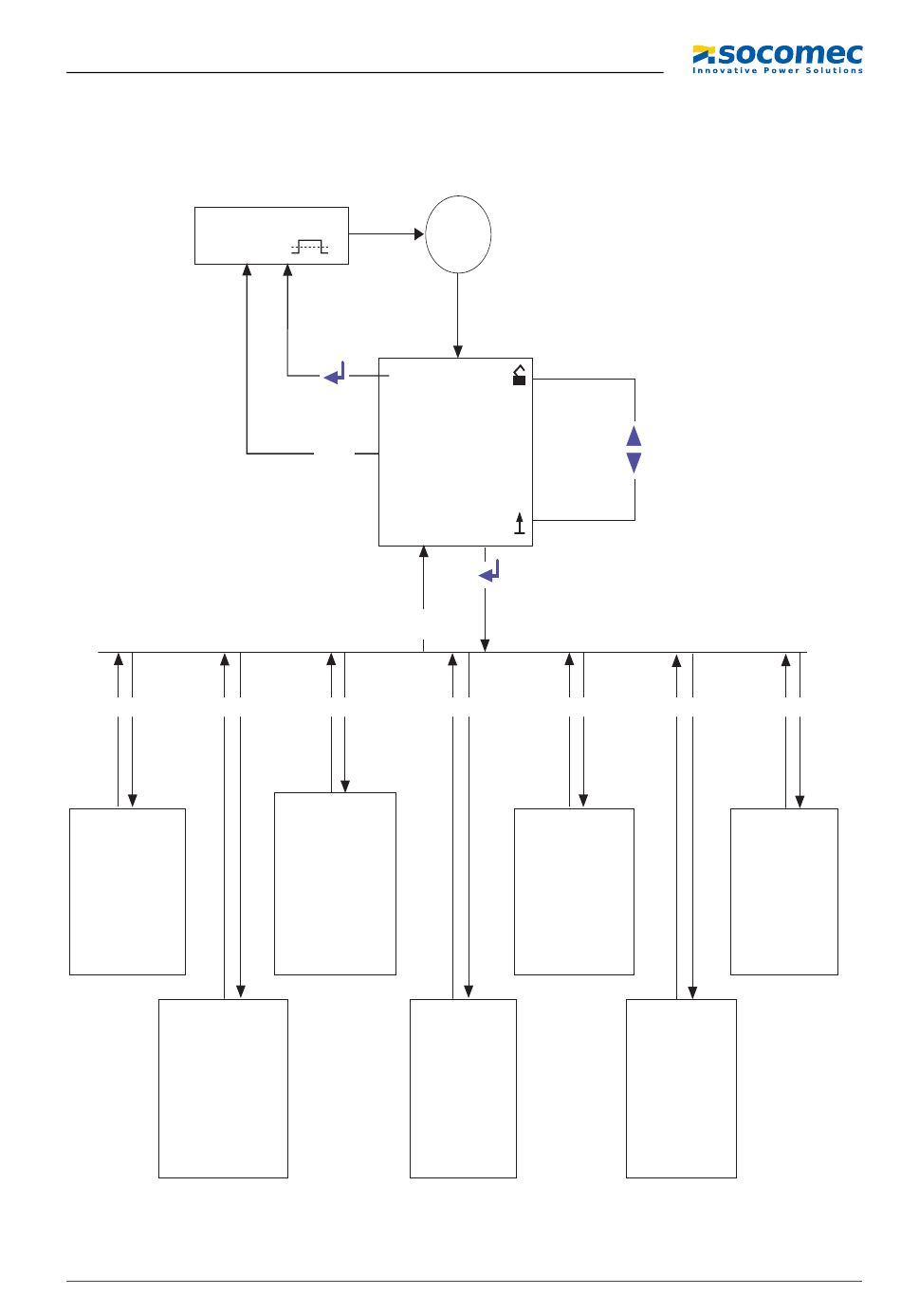

5.2.4 Diagramme de la structure des menus

*** Réseau IT ***
R >1.0 MΩ
HISTORY INFO ISOM SETUP
Nr.: 01 #Nr.: 02
Power on
1. Exit
2. Alarm1: 4.0 kΩ
3. Alarm2: 1.0 kΩ
4. K1 : N.O
5. K2 : N.O
6. Memory: on
7. M+/M-: 0-20 mA
8. M+/M-: Ri: 28kΩ
NT 874 715 B
MENU
H
1. EXIT
2. HISTORY INFO
3. ISOM SETUP
4. ISOM ADVANCED
ESC
5. COM SETUP
6. PASSWORD
7. LANGUAGE
8. SERVICE
ESC
ISOM ADVANCED COM SETUP
1. Exit
2. AGH : PV
3. Ce max: 2000µF
4. Measure: AMP4
5. Autotest: 24h
6. Clock: 19:08
7. Date: 01.01.01
8. Test: 00:00
1. Exit
2. Addr: 003
3. ISOMNet: off
4. ISOM Monitor
PASSWORD LANGUAGE
1. Exit
2. Password: XXX
3. Status: off
1. Exit
2. Text: Français
SERVICE
Insert Service
Password: XXX
