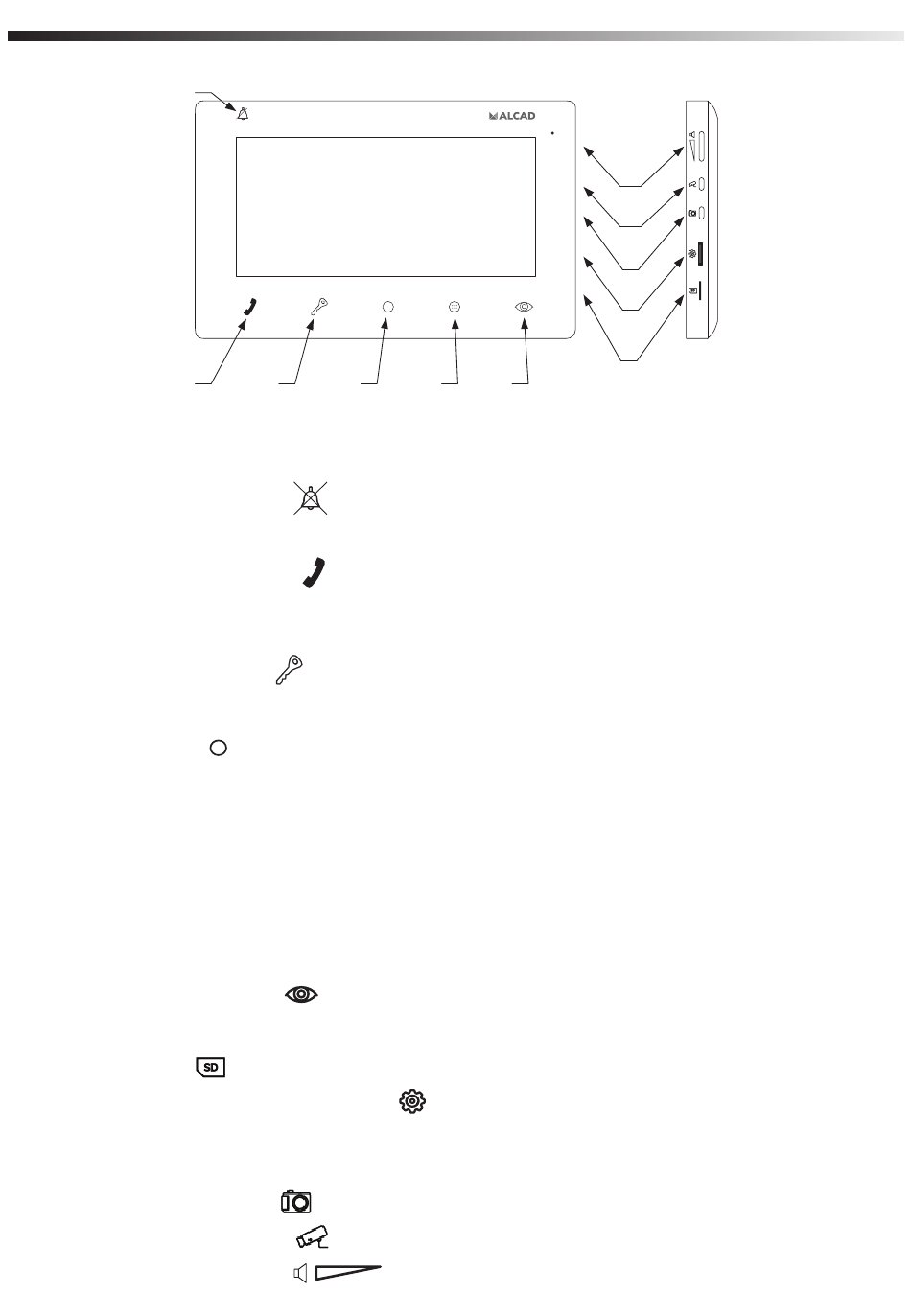

MONITOR DESCRIPTION

Image display screen
1. Call indicator disabled
With indicator lit, the call volume 6 is at the minimum and the call will not ring.
2. Communication button
Touch button. It allows to establish the communication when receiving the call and to
cut the communication at the end of it.
3. Door opening button
Touch button.
4. Auxiliar button
Touch button. It allows to do additional functions (Opening of second door, lighting of
lights ...). Consult your installer.
5. Menu / auxiliary button 2
Multi-function touch button. If the button is flashing: indicates you have unanswered
calls. With the monitor in standby: use it to enter to the main menu (see page 23).
With the monitor on communication, use it to activate additional functions, consult
your installer.
6. Autoswitch on button
Touch Button.
7. Micro SD slot
8. Screen adjustment slider-button
Hybrid button: Push button + Slider. Push to enter menu and slide to change the
functions.
9. Photo capture button
10. Video capture button
11. Audio volume control
VIDEODOOR ENTRY SYSTEM MONITOR
1
2 3 4 5 6
11
10
9
8
7
ENG - 17
