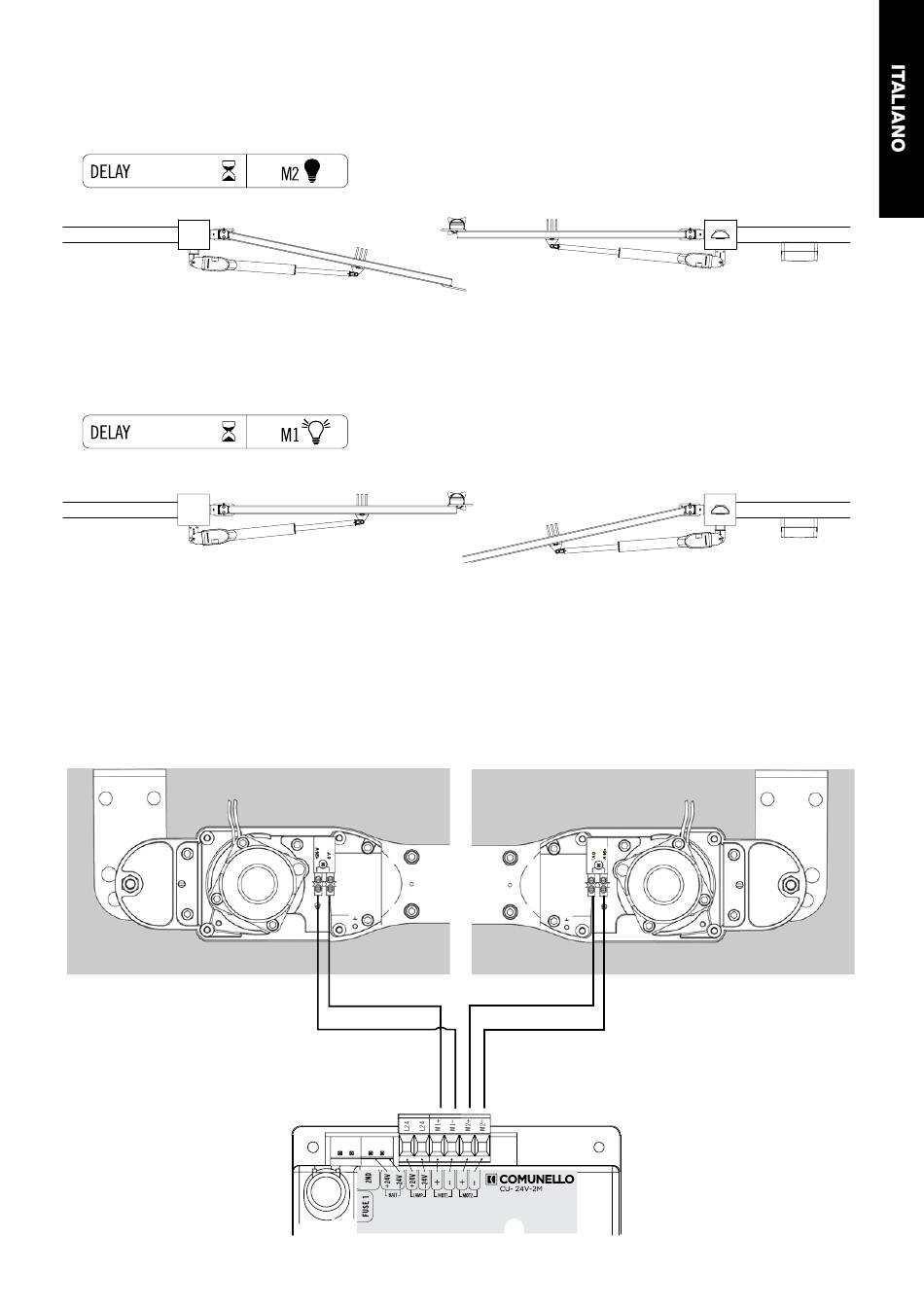

RAM - connection diagram of the motors
• DELAY LED OFF = DELAY OF THE MOTOR n.2
1
• DELAY LED ON = DELAY OF THE MOTOR n.1
1
Configuration:
24V with M1+
0V with M1 -
24V with M2+
0V with M2-
CN5
2N D
F1
CN1
