3.36 Install rotary encoder

Le codeur rotatif est installé dans le grand trou étiqueté SW1 sur la carte de contrôle..

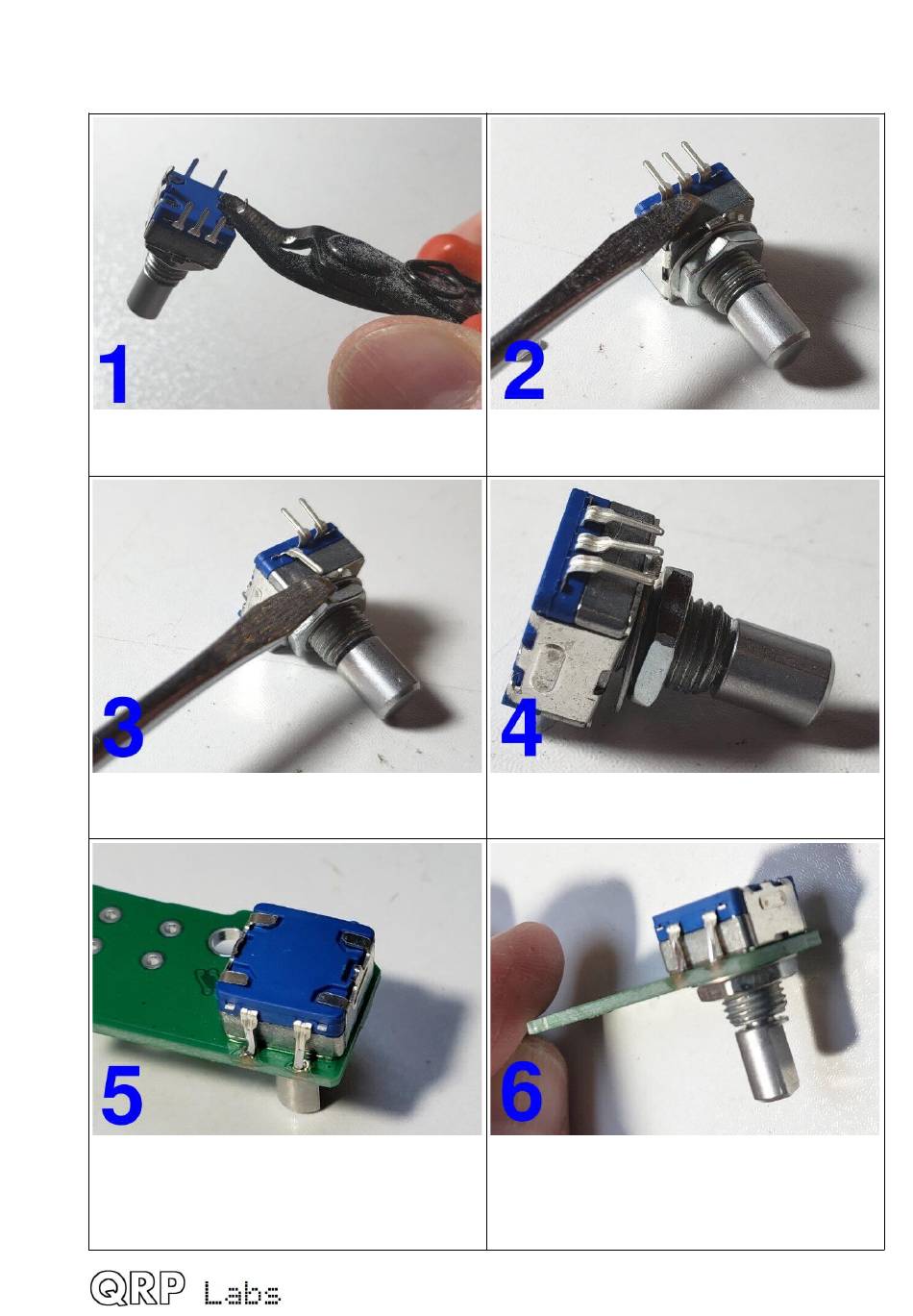

First cut off two large PCB-mounting lugs as
shown using wire-cutters. Do NOT cut pins.
Bend over the pin through 180-degrees so
that it points to the front of the control.
Install the rotary encoder, first line up pins so
that they fit in corresponding PCB holes. The
rotary encoder has a locating tab which fits
into a matching hole on the PCB.
Position a flat-headed screwdriver above
one of the five switch pins.
Repeat the same procedure for the four
remaining pins.
Make sure the washer and nut are both on
the "top" (silkscreen-printed) side of the
PCB.
Tighten the nut.
QCX-mini assembly Rev 1.05_Fr
72
