Installation instructions, only for experts

4.2. Installing the safety shut-off

The safety shut-off consists of two parts. In order for the safety shut-off to work,
both parts must be installed and connected.
Install the two parts of the safety shut-off on the side of the furnace opposite the
junction box. The exact position is shown by the pre-drilled holes (see Fig. 2 on
page 9).
1. Firmly screw the two parts of the safety shut-off onto the top left and right of
the heater wall. To do this, use the screws provided. Each part of the safety
shut-off must be fastened with 4 screws.
2. Guide the bipolar cable of the right part of the safety shut-off along the
bottom right, between the side heater cover and heater and through to the
opposite side of the heater.
3. Run the bipolar cable of the left part of the safety shut-off along the bottom
left, between the side heater cover and heater and through to the opposite
side of the heater.

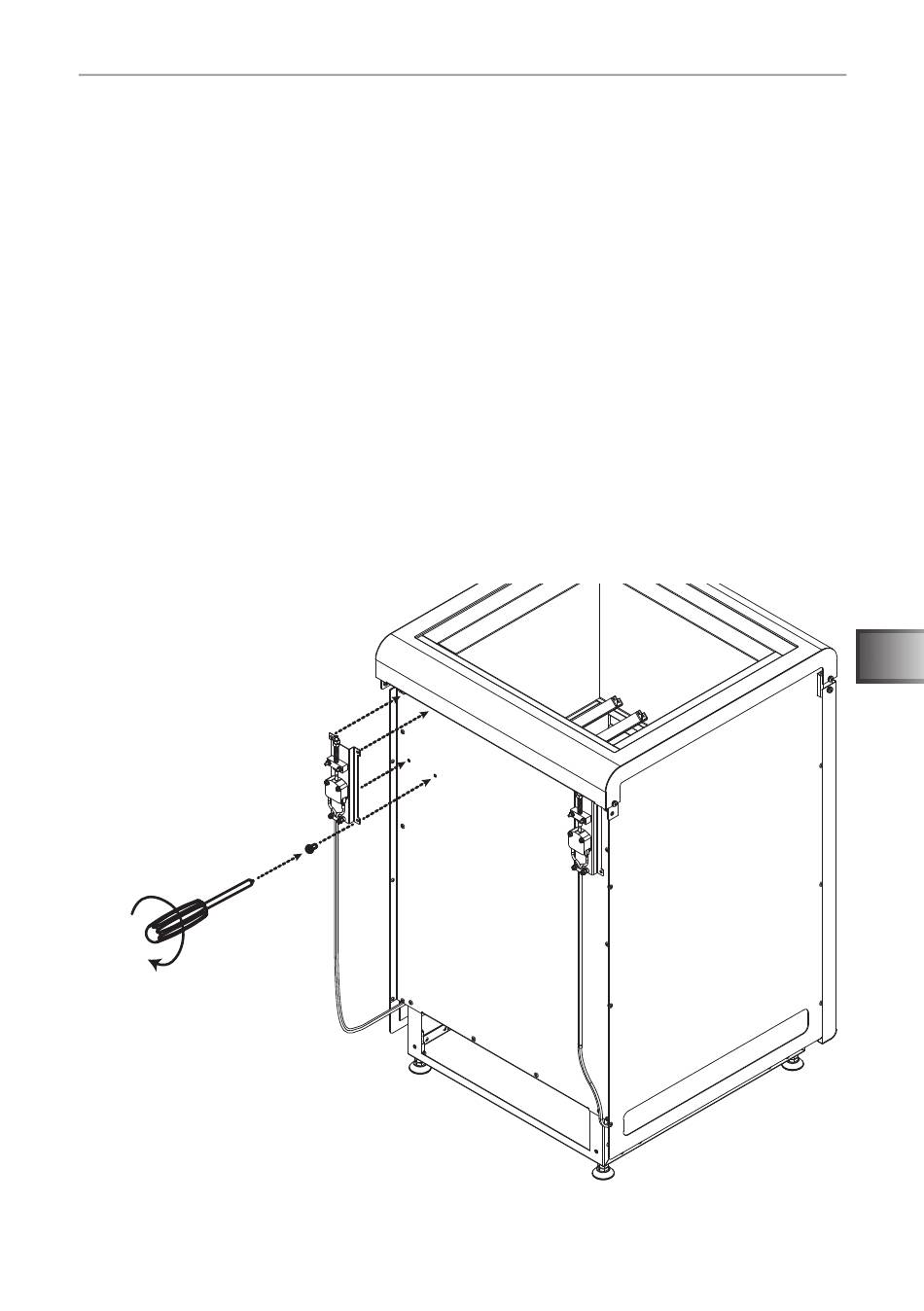

Fig. 2 Installing the safety shut-off
