9

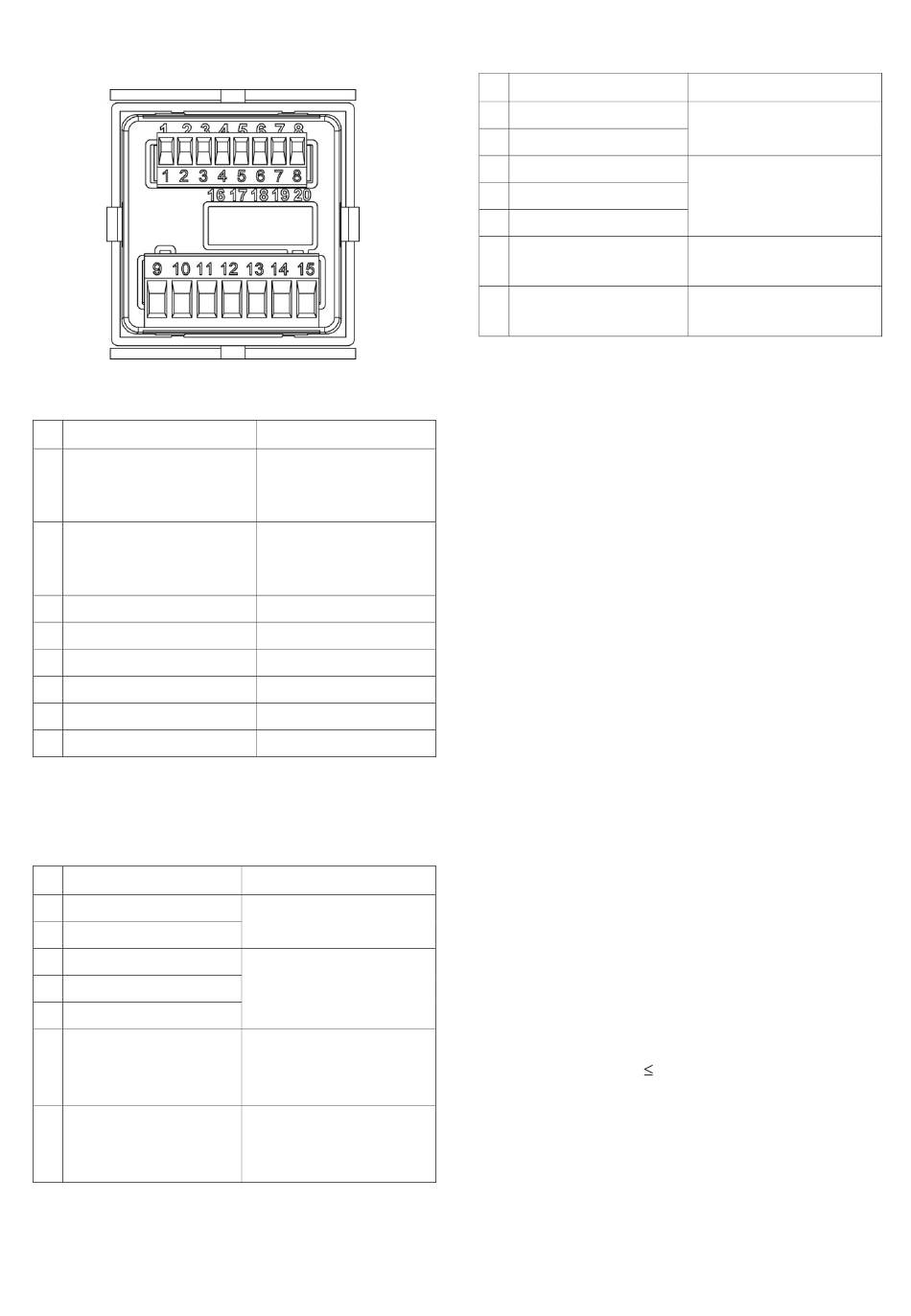

Connections

9.1

Signal and Control Inputs

N° Designation
1 AC: 24 VDC/80 mA
DC: U connected
B
through
2 GND (0 VDC)
3 INP A
4 INP B
5 RESET
6 LOCK
7 GATE
8 MPI
9.2

Supply voltage and Outputs

9.2.1 Version with relays

N° Designation
9 Relay contact C.1
10 Relay contact N.O.1
11 Relay contact C.2
12 Relay contact N.O.2
13 Relay contact N.C.2
14 AC: 90..260 VAC N~
AC: 24 VAC N~
DC: 10..30 VDC
15 AC: 90..260 VAC L~
AC: 24 VAC L~
DC: GND (0 VDC)
Page 18
Function
Sensor supply
voltage
Common connection
Signal and Control
inputs
Signal input A
Signal input B
Reset input
Keypad lock
Gate input
User input
Function
Output 1
Output 2
Supply voltage
Supply voltage

9.2.2 Version with Optocouplers

N° Designation
9 Collector 1
10 Emitter
11 Emitter 2
12 Not connected
13 Collector 2
14 AC: 90..260 VAC N~
DC: 10..30 VDC
15 AC: 90..260 VAC L~
DC: GND (0 VDC)

10 Technical Data

10.1

General Data

Display LCD positive or negative,
backlit
2 x 6-digit
Digit height upper line
lower line
special characters
Overload/ Blinking, 1 s
Underload Counter loses up to 1 decade
no pulses
Data retention > 10 years, EEPROM
Operation 8 keys
10.2

Pulse counter

Count frequency max. 55 kHz (see section 13.
frequencies typ.)
Response time of the outputs:
Relays
Add/Sub/Trail
With automatic repeat
A/B ; (A-B)/A
Optocouplers
Add/Sub/Trail
With automatic repeat
A/B ; (A-B)/A
10.3

Tacho/Frequency meter

Frequency range 0,01 Hz to 65 kHz (see
section 13. frequencies typ.)
Measuring
principle (period measurement)
> 76.3 Hz Gate time
Gate time approx.13.1 ms
Measuring error < 0.1% per channel
Response time of the outputs:
1-channel operation < 100 ms @ 40 kHz
< 350 ms @ 65 kHz
2-channel operation < 150 ms @ 40 kHz
< 600 ms @ 65 kHz
Function
Output 1
Output 2
Supply voltage
Supply voltage
9 mm
7 mm
2 mm
< 13 ms
< 13 ms
< 34 ms
< 1 ms
< 1 ms
< 23 ms
76.3 Hz Time interval
